NEK606 Water Blocked
Offshore & Marine Cables
Water Blocked S3 or S3/S7 BFOU(i) 250V
Applications
These S3 or S3/S7 BFOU(i) 250V NEK606 Water Blocked Offshore & Marine cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.
Standards
-
IEC 60092-376 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004 VG 95218 part 29

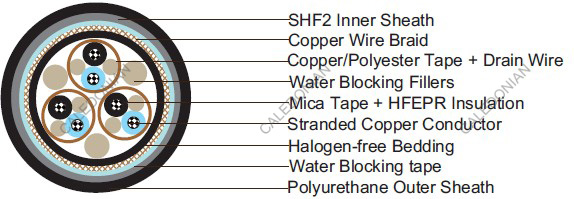

Construction
-
l Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.
l Insulation: Mica tape + Halogen free EPR compound.
l Twinning: Colour coded cores twisted together.
l Filler: Water blocking fillers, if required.
l Individual Shielding: Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
l Filler: Water blocking fillers, if required.
l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe).
Electrical Characteristics
-
Nominal Cross Section Area mm2 0.75 1.0 1.5 2.5 Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0 Maximum Resistant@20˚C O/km 26.3 19.3 12.9 8.02 Mutual Capacitance nF/km 85 95 100 110 Nominal Inductance@1KHz MH/km 0.731 0.691 0.673 0.629 Maximum L/R@1KHz μH/O 20 25 35 55 Operating Voltage V 250 250 250 250
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
- Temperature Range : -20˚C ~ +90˚C.
Dimensions and Weigh
Construction No. of elements×No. of cores in element×Cross section (mm2) |
Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Inner Sheath Thickness mm | Nominal Outer Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
---|---|---|---|---|---|---|
1×2×0.75 | 0.6 | 1.1 | 1.2 | 1 | 14.1±2 | 236 |
2×2×0.75 | 0.6 | 1.1 | 1.3 | 1 | 18.7±2 | 425 |
3×2×0.75 | 0.6 | 1.1 | 1.4 | 1 | 19.5±2 | 567 |
4×2×0.75 | 0.6 | 1.1 | 1.4 | 1 | 20.6±2 | 641 |
5×2×0.75 | 0.6 | 1.1 | 1.5 | 1 | 22.2±2 | 740 |
6×2×0.75 | 0.6 | 1.1 | 1.5 | 1 | 23.7±2 | 845 |
7×2×0.75 | 0.6 | 1.1 | 1.5 | 1 | 23.7±2 | 872 |
8×2×0.75 | 0.6 | 1.1 | 1.6 | 1 | 25.6±2 | 950 |
9×2×0.75 | 0.6 | 1.1 | 1.7 | 1 | 27.1±2 | 1050 |
10×2×0.75 | 0.6 | 1.1 | 1.7 | 1 | 28.2±2 | 1082 |
12×2×0.75 | 0.6 | 1.1 | 1.7 | 1 | 28.8±2 | 1202 |
14×2×0.75 | 0.6 | 1.1 | 1.8 | 1 | 30.2±2 | 1265 |
15×2×0.75 | 0.6 | 1.1 | 1.8 | 1 | 32.0±2 | 1370 |
16×2×0.75 | 0.6 | 1.1 | 1.9 | 1 | 32.6±2 | 1486 |
18×2×0.75 | 0.6 | 1.1 | 1.9 | 1 | 34.1±2 | 1549 |
19×2×0.75 | 0.6 | 1.2 | 1.9 | 1 | 34.7±2 | 1654 |
20×2×0.75 | 0.6 | 1.2 | 2 | 1 | 36.1±2 | 1785 |
21×2×0.75 | 0.6 | 1.2 | 2 | 1 | 37.0±2 | 1853 |
23×2×0.75 | 0.6 | 1.2 | 2 | 1 | 37.5±2 | 1990 |
24×2×0.75 | 0.6 | 1.2 | 2.1 | 1 | 39.7±2 | 2079 |
27×2×0.75 | 0.6 | 1.2 | 2.2 | 1 | 40.7±2 | 2273 |
30×2×0.75 | 0.6 | 1.2 | 2.2 | 1 | 41.9±2 | 2452 |
33×2×0.75 | 0.6 | 1.2 | 2.3 | 1 | 43.5±2 | 2662 |
37×2×0.75 | 0.6 | 1.2 | 2.3 | 1 | 44.7±2 | 2861 |
1×3×0.75 | 0.6 | 1.1 | 1.1 | 1 | 13.9±2 | 257 |
2×3×0.75 | 0.6 | 1.1 | 1.4 | 1 | 17.5±2 | 441 |
3×3×0.75 | 0.6 | 1.1 | 1.4 | 1 | 20.4±2 | 609 |
4×3×0.75 | 0.6 | 1.1 | 1.4 | 1 | 21.7±2 | 709 |
7×3×0.75 | 0.6 | 1.1 | 1.6 | 1 | 25.6±2 | 1008 |
8×3×0.75 | 0.6 | 1.1 | 1.7 | 1 | 27.0±2 | 1029 |
12×3×0.75 | 0.6 | 1.3 | 1.8 | 1 | 31.6±2 | 1507 |
16×3×0.75 | 0.6 | 1.4 | 1.9 | 1 | 34.6±2 | 1859 |
19×3×0.75 | 0.6 | 1.4 | 2.1 | 1 | 36.4±2 | 2084 |
24×3×0.75 | 0.6 | 1.8 | 2.2 | 1 | 41.6±2 | 2709 |
1×2×1.0 | 0.6 | 1.1 | 1.2 | 1 | 14.5±2 | 257 |
2×2×1.0 | 0.6 | 1.1 | 1.4 | 1 | 19.6±2 | 473 |
3×2×1.0 | 0.6 | 1.1 | 1.4 | 1 | 20.3±2 | 630 |
4×2×1.0 | 0.6 | 1.1 | 1.4 | 1 | 21.3±2 | 656 |
5×2×1.0 | 0.6 | 1.1 | 1.5 | 1 | 23.1±2 | 966 |
6×2×1.0 | 0.6 | 1.1 | 1.6 | 1 | 24.8±2 | 998 |
7×2×1.0 | 0.6 | 1.1 | 1.6 | 1 | 24.8±2 | 903 |
8×2×1.0 | 0.6 | 1.1 | 1.6 | 1 | 26.7±2 | 1034 |
9×2×1.0 | 0.6 | 1.1 | 1.7 | 1 | 28.3±2 | 1192 |
10×2×1.0 | 0.6 | 1.1 | 1.7 | 1 | 29.4±2 | 1229 |
12×2×1.0 | 0.6 | 1.1 | 1.8 | 1 | 30.3±2 | 1365 |
14×2×1.0 | 0.6 | 1.1 | 1.8 | 1 | 31.5±2 | 1449 |
15×2×1.0 | 0.6 | 1.1 | 1.9 | 1 | 33.6±2 | 1586 |
16×2×1.0 | 0.6 | 1.1 | 1.9 | 1 | 34.1±2 | 1701 |
18×2×1.0 | 0.6 | 1.2 | 2 | 1 | 36.2±2 | 1832 |
19×2×1.0 | 0.6 | 1.2 | 2 | 1 | 36.5±2 | 1922 |
20×2×1.0 | 0.6 | 1.2 | 2.1 | 1 | 38.0±2 | 2074 |
21×2×1.0 | 0.6 | 1.2 | 2.1 | 1 | 39.3±2 | 2242 |
23×2×1.0 | 0.6 | 1.2 | 2.1 | 1 | 39.9±2 | 2410 |
24×2×1.0 | 0.6 | 1.2 | 2.2 | 1 | 41.8±2 | 2452 |
27×2×1.0 | 0.6 | 1.2 | 2.2 | 1 | 42.6±2 | 2625 |
30×2×1.0 | 0.6 | 1.2 | 2.3 | 1 | 44.1±2 | 2856 |
33×2×1.0 | 0.6 | 1.2 | 2.3 | 1 | 45.6±2 | 3087 |
37×2×1.0 | 0.6 | 1.4 | 2.4 | 1 | 47.4±2 | 3392 |
1×3×1.0 | 0.6 | 1.1 | 1.2 | 1 | 14.6±2 | 289 |
2×3×1.0 | 0.6 | 1.1 | 1.4 | 1 | 20.8±2 | 672 |
3×3×1.0 | 0.6 | 1.1 | 1.5 | 1 | 21.3±2 | 698 |
4×3×1.0 | 0.6 | 1.1 | 1.5 | 1 | 22.9±2 | 814 |
5×3×1.0 | 0.6 | 1.1 | 1.6 | 1 | 24.8±2 | 1013 |
6×3×1.0 | 0.6 | 1.1 | 1.7 | 1 | 27.4±2 | 1192 |
7×3×1.0 | 0.6 | 1.1 | 1.7 | 1 | 27.4±2 | 1239 |
8×3×1.0 | 0.6 | 1.1 | 1.7 | 1 | 29.0±2 | 1334 |
9×3×1.0 | 0.6 | 1.1 | 1.8 | 1 | 30.9±2 | 1523 |
10×3×1.0 | 0.6 | 1.1 | 1.9 | 1 | 33.1±2 | 1528 |
12×3×1.0 | 0.6 | 1.1 | 1.9 | 1 | 34.0±2 | 1769 |
14×3×1.0 | 0.6 | 1.2 | 2 | 1 | 35.8±2 | 1911 |
15×3×1.0 | 0.6 | 1.2 | 2 | 1 | 36.8±2 | 2032 |
16×3×1.0 | 0.6 | 1.2 | 2.1 | 1 | 38.0±2 | 2210 |
18×3×1.0 | 0.6 | 1.2 | 2.1 | 1 | 40.1±2 | 2426 |
19×3×1.0 | 0.6 | 1.2 | 2.2 | 1 | 40.6±2 | 2473 |
20×3×1.0 | 0.6 | 1.2 | 2.2 | 1 | 41.6±2 | 2720 |
21×3×1.0 | 0.6 | 1.2 | 2.2 | 1 | 42.4±2 | 2819 |
23×3×1.0 | 0.6 | 1.2 | 2.3 | 1 | 44.0±2 | 3082 |
24×3×1.0 | 0.6 | 1.2 | 2.3 | 1 | 44.8±2 | 3302 |
27×3×1.0 | 0.6 | 1.4 | 2.4 | 1 | 47.3±2 | 3418 |
30×3×1.0 | 0.6 | 1.4 | 2.5 | 1 | 49.4±2 | 3743 |
32×3×1.0 | 0.6 | 1.4 | 2.5 | 1 | 50.6±2 | 3943 |
1×2×1.5 | 0.7 | 1.1 | 1.2 | 1 | 15.5±2 | 310 |
2×2×1.5 | 0.7 | 1.1 | 1.4 | 1 | 21.2±2 | 572 |
3×2×1.5 | 0.7 | 1.1 | 1.5 | 1 | 22.2±2 | 761 |
4×2×1.5 | 0.7 | 1.1 | 1.5 | 1 | 23.5±2 | 809 |
5×2×1.5 | 0.7 | 1.1 | 1.6 | 1 | 25.4±2 | 1024 |
6×2×1.5 | 0.7 | 1.1 | 1.7 | 1 | 27.4±2 | 1187 |
7×2×1.5 | 0.7 | 1.1 | 1.7 | 1 | 27.4±2 | 1229 |
8×2×1.5 | 0.7 | 1.1 | 1.7 | 1 | 29.5±2 | 1286 |
9×2×1.5 | 0.7 | 1.1 | 1.8 | 1 | 31.4±2 | 1475 |
10×2×1.5 | 0.7 | 1.1 | 1.9 | 1 | 32.9±2 | 1512 |
12×2×1.5 | 0.7 | 1.1 | 1.9 | 1 | 33.6±2 | 1764 |
14×2×1.5 | 0.7 | 1.2 | 2 | 1 | 35.6±2 | 1838 |
15×2×1.5 | 0.7 | 1.2 | 2.1 | 1 | 38.0±2 | 2006 |
16×2×1.5 | 0.7 | 1.2 | 2.1 | 1 | 38.9±2 | 2158 |
18×2×1.5 | 0.7 | 1.2 | 2.2 | 1 | 40.9±2 | 2373 |
19×2×1.5 | 0.7 | 1.2 | 2.2 | 1 | 41.3±2 | 2515 |
20×2×1.5 | 0.7 | 1.2 | 2.2 | 1 | 42.8±2 | 2667 |
21×2×1.5 | 0.7 | 1.2 | 2.3 | 1 | 44.1±2 | 2793 |
23×2×1.5 | 0.7 | 1.2 | 2.3 | 1 | 44.7±2 | 3008 |
24×2×1.5 | 0.7 | 1.4 | 2.4 | 1 | 47.2±2 | 3234 |
27×2×1.5 | 0.7 | 1.4 | 2.4 | 1 | 48.1±2 | 3313 |
30×2×1.5 | 0.7 | 1.4 | 2.5 | 1 | 49.8±2 | 3612 |
32×2×1.5 | 0.7 | 1.4 | 2.6 | 1 | 51.0±2 | 3869 |
33×2×1.5 | 0.7 | 1.4 | 2.6 | 1 | 51.7±2 | 3927 |
37×2×1.5 | 0.7 | 1.4 | 2.6 | 1 | 53.2±2 | 4242 |
1×3×1.5 | 0.7 | 1.1 | 1.3 | 1 | 15.6±2 | 341 |
2×3×1.5 | 0.7 | 1.1 | 1.5 | 1 | 20.5±2 | 588 |
3×3×1.5 | 0.7 | 1.1 | 1.5 | 1 | 23.4±2 | 840 |
4×3×1.5 | 0.7 | 1.1 | 1.6 | 1 | 25.7±2 | 1024 |
5×3×1.5 | 0.7 | 1.1 | 1.7 | 1 | 27.4±2 | 1255 |
6×3×1.5 | 0.7 | 1.1 | 1.8 | 1 | 30.3±2 | 1475 |
7×3×1.5 | 0.7 | 1.1 | 1.8 | 1 | 30.3±2 | 1544 |
8×3×1.5 | 0.7 | 1.1 | 1.8 | 1 | 32.2±2 | 1664 |
9×3×1.5 | 0.7 | 1.2 | 1.9 | 1 | 34.6±2 | 1927 |
10×3×1.5 | 0.7 | 1.2 | 2 | 1 | 37.1±2 | 2032 |
12×3×1.5 | 0.7 | 1.2 | 2.1 | 1 | 38.8±2 | 2221 |
14×3×1.5 | 0.7 | 1.2 | 2.1 | 1 | 40.3±2 | 2478 |
15×3×1.5 | 0.7 | 1.2 | 2.2 | 1 | 41.7±2 | 2657 |
16×3×1.5 | 0.7 | 1.2 | 2.2 | 1 | 42.8±2 | 2914 |
18×3×1.5 | 0.7 | 1.2 | 2.3 | 1 | 44.9±2 | 3050 |
19×3×1.5 | 0.7 | 1.2 | 2.3 | 1 | 45.3±2 | 3360 |
20×3×1.5 | 0.7 | 1.4 | 2.4 | 1 | 46.9±2 | 3470 |
21×3×1.5 | 0.7 | 1.4 | 2.4 | 1 | 47.8±2 | 3602 |
23×3×1.5 | 0.7 | 1.4 | 2.5 | 1 | 49.7±2 | 3943 |
24×3×1.5 | 0.7 | 1.4 | 2.5 | 1 | 50.6±2 | 4121 |
27×3×1.5 | 0.7 | 1.4 | 2.6 | 1 | 53.1±2 | 4321 |
30×3×1.5 | 0.7 | 1.4 | 2.7 | 1 | 55.5±2 | 4736 |
32×3×1.5 | 0.7 | 1.6 | 2.8 | 1 | 57.5±2 | 5093 |
1×2×2.5 | 0.7 | 1.1 | 1.3 | 1 | 16.0±2 | 357 |
2×2×2.5 | 0.7 | 1.1 | 1.5 | 1 | 20.5±2 | 588 |
3×2×2.5 | 0.7 | 1.1 | 1.5 | 1 | 23.6±2 | 908 |
4×2×2.5 | 0.7 | 1.1 | 1.6 | 1 | 25.2±2 | 1061 |
5×2×2.5 | 0.7 | 1.1 | 1.7 | 1 | 27.3±2 | 1244 |
6×2×2.5 | 0.7 | 1.1 | 1.7 | 1 | 29.4±2 | 1439 |
7×2×2.5 | 0.7 | 1.1 | 1.7 | 1 | 29.4±2 | 1502 |
8×2×2.5 | 0.7 | 1.1 | 1.8 | 1 | 31.9±2 | 1638 |
9×2×2.5 | 0.7 | 1.1 | 1.9 | 1 | 33.9±2 | 1869 |
10×2×2.5 | 0.7 | 1.2 | 2 | 1 | 35.8±2 | 1864 |
12×2×2.5 | 0.7 | 1.2 | 2 | 1 | 36.6±2 | 2063 |
14×2×2.5 | 0.7 | 1.2 | 2.1 | 1 | 38.9±2 | 2389 |
15×2×2.5 | 0.7 | 1.2 | 2.2 | 1 | 41.5±2 | 2604 |
16×2×2.5 | 0.7 | 1.2 | 2.2 | 1 | 42.1±2 | 2720 |
18×2×2.5 | 0.7 | 1.2 | 2.3 | 1 | 44.3±2 | 2966 |
19×2×2.5 | 0.7 | 1.2 | 2.3 | 1 | 44.7±2 | 3077 |
20×2×2.5 | 0.7 | 1.4 | 2.4 | 1 | 46.8±2 | 3402 |
21×2×2.5 | 0.7 | 1.4 | 2.4 | 1 | 48.1±2 | 3544 |
23×2×2.5 | 0.7 | 1.4 | 2.5 | 1 | 48.9±2 | 3738 |
24×2×2.5 | 0.7 | 1.4 | 2.5 | 1 | 51.1±2 | 3843 |
27×2×2.5 | 0.7 | 1.4 | 2.6 | 1 | 52.3±2 | 4200 |
30×2×2.5 | 0.7 | 1.4 | 2.7 | 1 | 54.2±2 | 4589 |
33×2×2.5 | 0.7 | 1.4 | 2.7 | 1 | 56.1±2 | 4972 |
37×2×2.5 | 0.7 | 1.6 | 2.8 | 1 | 58.4±2 | 5486 |
1×3×2.5 | 0.7 | 1.1 | 1.2 | 1 | 16.5±2 | 399 |
2×3×2.5 | 0.7 | 1.1 | 1.6 | 1 | 24.5±2 | 998 |
3×3×2.5 | 0.7 | 1.1 | 1.6 | 1 | 25.4±2 | 1108 |
4×3×2.5 | 0.7 | 1.1 | 1.7 | 1 | 27.3±2 | 1313 |
5×3×2.5 | 0.7 | 1.1 | 1.7 | 1 | 29.4±2 | 1533 |
6×3×2.5 | 0.7 | 1.1 | 1.9 | 1 | 32.7±2 | 1822 |
7×3×2.5 | 0.7 | 1.1 | 1.9 | 1 | 32.7±2 | 1922 |
8×3×2.5 | 0.7 | 1.2 | 2 | 1 | 35.3±2 | 2126 |
9×3×2.5 | 0.7 | 1.2 | 2 | 1 | 37.4±2 | 2405 |
10×3×2.5 | 0.7 | 1.2 | 2.2 | 1 | 40.8±2 | 2525 |
12×3×2.5 | 0.7 | 1.2 | 2.2 | 1 | 42.0±2 | 2819 |
14×3×2.5 | 0.7 | 1.2 | 2.3 | 1 | 43.9±2 | 3150 |
15×3×2.5 | 0.7 | 1.2 | 2.3 | 1 | 45.1±2 | 3350 |
16×3×2.5 | 0.7 | 1.4 | 2.4 | 1 | 46.9±2 | 3591 |
18×3×2.5 | 0.7 | 1.4 | 2.5 | 1 | 49.2±2 | 3927 |
19×3×2.5 | 0.7 | 1.4 | 2.5 | 1 | 49.6±2 | 4079 |
20×3×2.5 | 0.7 | 1.4 | 2.5 | 1 | 50.9±2 | 4394 |
21×3×2.5 | 0.7 | 1.4 | 2.6 | 1 | 52.0±2 | 4589 |
23×3×2.5 | 0.7 | 1.4 | 2.7 | 1 | 54.1±2 | 4998 |
24×3×2.5 | 0.7 | 1.4 | 2.7 | 1 | 55.0±2 | 5024 |
27×3×2.5 | 0.7 | 1.6 | 2.8 | 1 | 58.2±2 | 5602 |
30×3×2.5 | 0.7 | 1.6 | 2.9 | 1 | 60.8±2 | 6148 |
32×3×2.5 | 0.7 | 1.6 | 3 | 1 | 62.6±2 | 6526 |
