NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P7 or P7/P14 BFOU 6/10kV

Applications

  • These P7 or P7/P14 BFOU 6/10kV NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

IEC 60092-354 IEC 60092-351
IEC 60092-359 IEC 60332-1
IEC 60331-21 IEC 60332-3-22
IEC 60754-1,2 IEC 61034-1,2
NEK 606:2004 VG 95218 part 29?

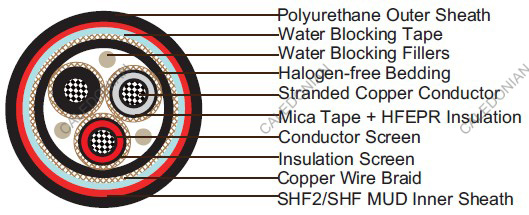

Water Blocked P7r P7/P14 BFOU 6/10kV NEK606  Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
    l Conductor Screen: Semi conducting material.
    l Insulation: Mica tape + Halogen free EPR.
    l Insulation Screen: Semi conducting material and tinned copper wire braid.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the
    braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal
    water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P7), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P7/P14), coloured red.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 25 35 50 70 95 120 150
    Nominal Conductor Diameter mm 6.5 7.4 8.7 10.3 12.2 13.8 15.1
    Maximum DC Resistant@20˚C O/km 0.734 0.529 0.391 0.27 0.195 0.154 0.126
    Continuous Current Rating@45˚C1 Core A 127 157 196 242 293 339 389
    Continuous Current Rating@45˚C3 Core A 89 110 137 169 205 237 272
    Short Circuit Current 1s A 3580 5010 7150 10020 13590 17170 21460
    Operating Voltage KV 6/10 6/10 6/10 6/10 6/10 6/10 6/10
  • Nominal Cross Section Area mm2 185 240 300 400 500 630
    Nominal Conductor Diameter mm 17.0 19.6 21.9 24.5 27.5 32.3
    Maximum DC Resistant@20˚C O/km 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
    Continuous Current Rating@45˚C1 Core A 444 522 601 690 780 890
    Continuous Current Rating@45˚C3 Core A 311 365 421 483 546 623
    Short Circuit Current 1s A 26470 34340 42930 57230 71540 90140
    Operating Voltage KV 6/10 6/10 6/10 8.7/15 8.7/15 8.7/15

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section (mm2) Nominal Insulation Thickness mm Nominal Bedding Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm Nominal Weight kg/km
1×16 3.4 1.5 1.2 1 27.6±2 1040
1×25 3.4 1.6 1.2 1.2 29.5±2 1208
1×35 3.4 1.7 1.2 1.2 30.9±2 1386
1×50 3.4 1.7 1.3 1.2 32.3±2 1575
1×70 3.4 1.8 1.3 1.2 34.3±2 1901
1×95 3.4 1.8 1.4 1.4 36.8±2 2268
1×120 3.4 1.9 1.4 1.4 38.9±2 2741
1×150 3.4 2 1.5 1.4 40.9±2 3140
1×185 3.4 2 1.5 1.4 42.7±2 3612
1×240 3.4 2.2 1.6 1.6 46.3±2 4389
1×300 3.4 2.3 1.7 1.6 49.1±2 5177
1×400 3.4 2.4 1.7 1.6 52.2±2 6195
1×500 3.4 2.5 1.8 1.6 55.7±2 7424
1×630 3.4 2.7 1.9 1.6 60.2±2 9125
3×16 3.4 2.4 1.8 1 52.2±2 3969
3×25 3.4 2.5 1.8 1.2 55.6±2 4599
3×35 3.4 2.6 1.9 1.2 58.8±2 5292
3×50 3.4 2.7 2 1.2 61.7±2 6027
3×70 3.4 2.9 2.1 1.2 66.1±2 7245
3×95 3.4 3.1 2.2 1.4 71.2±2 8684
3×120 3.4 3.2 2.3 1.4 74.9±2 9944
3×150 3.4 3.3 2.4 1.4 78.8±2 11340
3×185 3.4 3.5 2.5 1.4 83.6±2 12989
3×240 3.4 3.7 2.7 1.6 91.4±2 15792
3×300 3.4 3.9 2.9 1.6 97.2±2 18323
