NEK606 Water Blocked Offshore & Marine Cables
Water Blocked P6 or P6/P13 BFOU 3.6/6kV

Applications

  • These P6 or P6/P13 BFOU 3.6/6kV NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for fixed installation for medium voltage power.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    VG 95218 part 29

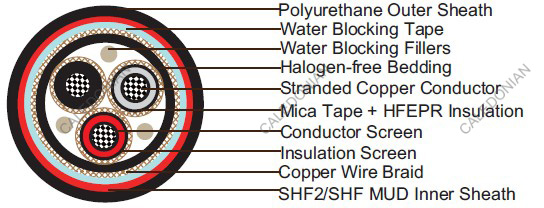

Water Blocked P6 or P6/P13 BFOU 3.6/6kV NEK606  Marine Cables

Construction

  • l Conductors: Circular tinned annealed stranded copper to IEC 60228 class 2.
    l Conductor Screen: Semi conducting material.
    l Insulation: Mica tape + Halogen free EPR.
    l Insulation Screen: Semi conducting material and tinned copper wire braid.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2 (for TYPE P6), or halogen free mud resistant thermosetting compound, SHF MUD (for TYPE P6/P13), coloured red.
    l Outer Sheath: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 25 35 50 70 95 120 150
    Nominal Conductor Diameter mm 6.5 7.4 8.7 10.3 12.2 13.8 15.1
    Maximum DC Resistant@20˚C O/km 0.734 0.529 0.391 0.27 0.195 0.154 0.126
    Continuous Current Rating@45˚C1 Core A 127 157 196 242 293 339 389
    Continuous Current Rating@45˚C3 Core A 89 110 137 169 205 237 272
    Short Circuit Current 1s A 3580 5010 7150 10020 13590 17170 21460
    Operating Voltage KV 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6 3.6/6
  • Nominal Cross Section Area mm2 185 240 300 400 500 630
    Nominal Conductor Diameter mm 17.0 19.6 21.9 24.5 27.5 32.3
    Maximum DC Resistant@20˚C O/km 0.1 0.0762 0.0607 0.0475 0.0369 0.0286
    Continuous Current Rating@45˚C1 Core A 444 522 601 690 780 890
    Continuous Current Rating@45˚C3 Core A 311 365 421 483 546 623
    Short Circuit Current 1s A 26470 34340 42930 57230 71540 90140
    Operating Voltage KV 3.6/6 3.6/6 3.6/6 8.7/15 8.7/15 8.7/15

Ambient Temperature Correction Factors

  • Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
    Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

  • Bending Radius :15×OD (during installation); 9×OD (fixed installed).

  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction No. of cores×Cross section (mm2) Nominal Insulation Thickness mm Nominal Bedding Thickness mm Nominal Inner Sheath Thickness mm Nominal Outer Sheath Thickness mm Nominal Overall Diameter mm
Nominal Weight kg/km
1×16 2.5 1.5 1.2 1 26.8±2 998
1×25 2.5 1.6 1.2 1.2 28.7±2 1166
1×35 2.5 1.6 1.2 1.2 30.0±2 1323
1×50 2.5 1.7 1.3 1.2 31.5±2 1533
1×70 2.5 1.7 1.3 1.2 33.3±2 1827
1×95 2.5 1.8 1.4 1.4 36.0±2 2216
1×120 2.5 1.9 1.4 1.4 37.7±2 2552
1×150 2.5 1.9 1.4 1.4 39.7±2 3035
1×185 2.5 2 1.5 1.4 41.9±2 3539
1×240 2.6 2.1 1.6 1.6 45.4±2 4305
1×300 2.8 2.2 1.6 1.6 47.9±2 5051
1×400 3 2.3 1.7 1.6 51.3±2 6101
1×500 3.2 2.5 1.8 1.6 55.3±2 7382
1×630 3.2 2.6 1.9 1.6 59.7±2 9062
3×16 2.5 2.3 1.7 1 49.8±2 3728
3×25 2.5 2.5 1.8 1.2 53.9±2 4389
3×35 2.5 2.6 1.9 1.2 57.1±2 5061
3×50 2.5 2.7 1.9 1.2 59.8±2 5765
3×70 2.5 2.8 2 1.2 64.0±2 6920
3×95 2.5 3 2.1 1.4 69.0±2 8316
3×120 2.5 3.1 2.2 1.4 72.9±2 9608
3×150 2.5 3.3 2.3 1.4 76.8±2 10983
3×185 2.5 3.4 2.4 1.4 81.4±2 12611
3×240 2.6 3.7 2.6 1.6 89.5±2 15425
3×300 2.8 3.9 2.8 1.6 95.1±2 17987
