NEK606 Water Blocked Offshore & Marine Cables
Water Blocked S16 BFOU-HCF(c) 250 V

Applications

  • These S16 BFOU-HCF(c) 250 V NEK606 Water Blocked Offshore & Marine cables are partially water blocked, fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100°C hydrocarbon fire.

Standards

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
    IEC 60331-21 VG 95218 part 29

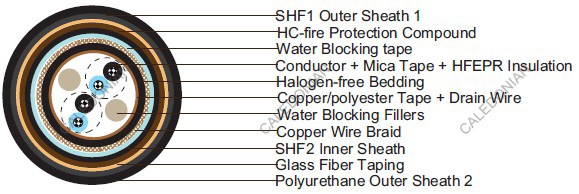

Water Blocked S16 BFOU-HCF(c) 250 V NEK606 Marine cables

Construction

  • l Conductors: Circular tinned stranded copper wire to IEC 60228 class 2.
    l Insulation: Mica tape + Halogen free EPR compound.
    l Twinning: Colour coded cores twisted together.
    l Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
    l Filler: Water blocking fillers, if required.
    l Bedding: Halogen free compound, PETP wrapping tape will be applied over the bedding, if required.
    l Armour: Tinned copper wire braid, PETP wrapping tape will be applied over the braiding, if required.
    l Water Blocking Elements: Water blocking tape and strings for providing longitudinal water tightness.
    l Inner Sheath: Halogen free thermosetting compound, SHF2.
    l HC-fire protection: Extruded thermoplastic fire protection compound.
    l Taping: Lapped glass fibre tape.
    l Outer Sheath 1: Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).
    l Outer Sheath 2: Polyurethane for providing transversal water tightness, PE is optional,but can not meet low smoke standard.

Electrical Characteristics

  • Nominal Cross Section Area mm2 1.5
    Nominal Conductor Diameter mm 1.6
    Maximum Resistant@20˚C O/km 12.9
    Mutual Capacitance nF/km 85
    Nominal Inductance@1KHz MH/km 0.667
    Operating Voltage V 250

Mechanical and Thermal Properties

  • Bending Radius : 20×OD (during installation); 12×OD (fixed installed).
  • Temperature Range : -20˚C ~ +90˚C.

Dimensions and Weight

Construction
No. of elements×No. of cores in element×Cross section
(mm2)
Nominal
Insulation Thickness
mm
Nominal
Diameter Over Bedding
mm
Nominal
Diameter Over Inner Sheath
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
2×2×1.5 0.7 13 16.4 46.5±2 2520
4×2×1.5 0.7 15 19.9 48.5±2 2783
8×2×1.5 0.7 20.5 25.3 55.0±2 3749
12×2×1.5 0.7 23.5 29.6 59.0±2 4368
