Type SOOW Cable 600V

Applications

These cables is a a flexible, highly durable portable power cable manufactured for indoor or outdoor commercial and industrial-grade applications. Suitable for extra-hard usage per NEC Article 400.

Standards

  • UL Flexible Cord - UL 62
  • CSA FT2
  • CSA C 22.2 #49

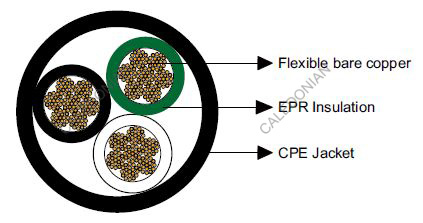

Construction


Type SOOW Cable 600V
Conductors Flexible bare copper.
Insulation Color-coded, Ethylene Propylene Rubber (EPR).
Jacket Heavy-duty Chlorinated Polyethylene (CPE), black. (Cables having a nominal outside diameter of more than 2.0 inches require extra-heavy-duty jackets.)

Options

• Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
• Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Features

• Excellent resistance to oil, water and moisture
• Sunlight (UV), ozone and weather exposure resistant.

Mechanical and Thermal Properties

Nominal Temperature Range: -40°C - +90°C

Dimensions and Weight

Construction No. of
Strands
Nominal Insulation
Thickness
Nominal Jacket
Thickness
Nominal Overall
Diameter
Nominal Weight
No. of
cores×AWG/kcmil
- inch inch inch kg/km
3×14 41/30 0.045 0.080 0.535 155
