NTMCGCWOEU Flexible Medium Voltage Single Core Cable

Applications

These cables are used for connection in switch-gear and for connection of mobile transformer substations to the overhead line.

Standards

VDE 0250 Part 813

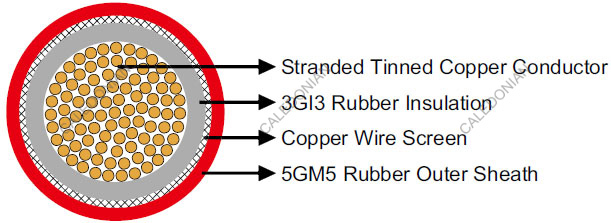

Construction

NTMCGCWOEU Flexible Medium Voltage Single Core Cable
Conductors Flexible stranded tinned copper conductor , class 5 according to DIN VDE 0295.
Inner Conductor Layer Semiconductive rubber.
Insulation EPR type 3GI3.
Outer Conductor Layer Semiconductive rubber.
Screen Copper wire braid.
Outer Sheath PCP type 5GM5.

Dimensions and Weight

3.6/6kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
1×16/16KON 19.4 21.4 601
1×25/16KON 21.4 23.4 825
1×35/16KON 22.6 24.6 882
1×50/16KON 24.6 27.6 1104
1×70/16KON 26.5 29.5 1346
1×95/16KON 28.5 31.5 1614
1×120/16KON 31.2 34.2 1983
1×150/25KON 32.9 35.9 2300
1×185/25KON 34.3 37.3 2642
1×240/25KON 38.6 41.6 3371

6/10 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
1×16/16KON 20.4 22.4 644
1×25/16KON 22.2 24.2 791
1×35/16KON 23.4 25.4 1050
1×50/16KON 25.4 28.4 1153
1×70/16KON 27.3 30.3 1399
1×95/16KON 29.3 32.3 1910
1×120/16KON 32.0 35.0 2044
1×150/25KON 33.7 36.7 2364
1×185/25KON 35.1 38.1 2709
1×240/25KON 39.4 42.4 3446

8.7/15 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
1×16/16KON 22.6 24.6 760
1×25/16KON 24.8 27.8 954
1×35/16KON 26.4 29.4 1101
1×50/16KON 28.0 31.0 1304
1×70/16KON 30.5 33.5 1623
1×95/16KON 32.5 35.5 1912
1×120/16KON 34.2 37.2 2219
1×150/25KON 36.9 39.9 2637
1×185/25KON 38.3 41.3 2995
1×240/25KON 41.6 44.6 3658

12/20 kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
1×16/16KON 26.0 29.0 971
1×25/16KON 27.2 30.2 1090
1×35/16KON 28.4 31.4 1236
1×50/16KON 31.0 34.0 1680
1×70/16KON 32.5 35.5 1776
1×95/16KON 34.5 37.5 2170
1×120/16KON 37.2 40.2 2481
1×150/25KON 38.9 41.9 3020
1×185/25KON 40.3 43.3 3182
1×240/25KON 43.6 46.6 3870
