(N)TSCGEWOEU Medium Voltage Trailing Cable With Anti-Torsion Braid

Applications

These cables are used for the connection of electrical equipment, in mines and underground excavations with hazardous environments under particularly high mechanical loads, e.g. high-voltage transformers on power lines in underground mining and tunnelling.

Standards

Based on VDE 0250 Part 813

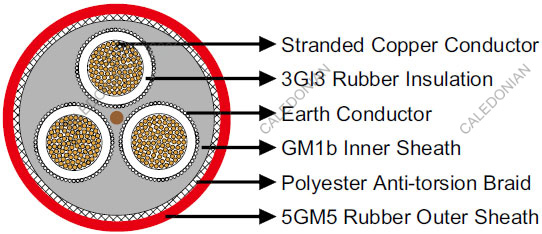

Construction

(N)TSCGEWOEU Medium Voltage Trailing Cable With Anti-Torsion Braid
Conductors Flexible stranded copper conductor, class 5 according to DIN VDE 0295.
Inner Conductor Layer Special rubber compound, conductive.
Insulation Rubber type 3GI3.
Outer Conductor Layer Special rubber compound, conductive, easy strippable.
Earth Conductor Spiral of tinned copper wires.
Inner Sheath Rubber type GM1b.
Reinforcement Polyester anti-torsion braid between the jackets embedded.
Outer Sheath Rubber type 5GM5.

Dimensions and Weight

8.7/15kV

Number of Cores×Nominal Cross Section Minimum Overall Diameter
 Maximum Overall Diameter Nominal Weight
No. ×mm^2 mm mm kg/km
3×150+3×70/3E 73.0 78.0 10150
