(N)SHOEU 0.6/1kV Flexible cable
Applications
These cables are designed for use in open cast mining factories for laying of excavators and conveyor belts with permanent movements between parts of the equipment. These cables are used where the ascending pipe serves as earth conductor, for instance for submersible pumps.
Standards
VDE 0250 Part 812

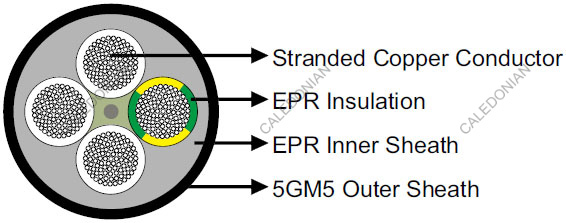

Construction
| Conductors |
Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295/IEC 60228. |
| Insulation |
EPR. |
| Earth Conductor (for –J type) |
Incorporated as a fourth core or split into three in the outer interstices. |
| Inner Sheath |
EPR. |
| Outer Sheath |
CM type 5GM5. |
Dimensions and Weight
(N)SHOEU-J
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Inner Sheath |
Thickness of Outer Sheath |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 3×1.0 |
0.60 |
0.8 |
1.2 |
9.2 |
9.6 |
160 |
| 3×1.5 |
0.60 |
0.8 |
1.2 |
10.4 |
12.0 |
180 |
| 3×2.5 |
0.70 |
0.8 |
1.2 |
11.3 |
12.9 |
240 |
| 3×4 |
0.80 |
0.9 |
1.3 |
12.5 |
14.1 |
295 |
| 3×6 |
0.80 |
1.0 |
1.4 |
13.9 |
15.5 |
370 |
| 3×10 |
1.00 |
1.0 |
1.4 |
16.8 |
18.8 |
570 |
| 3x50+3x25/3 |
1.10 |
1.4 |
2.5 |
31.5 |
34.5 |
2500 |
| 3x70+3x35/3 |
1.10 |
1.4 |
2.5 |
36.2 |
39.2 |
3400 |
| 3x95+3x50/3 |
1.20 |
1.7 |
2.8 |
42.0 |
45.0 |
4475 |
| 3x120+3x70/3 |
1.20 |
2.0 |
3.0 |
46.0 |
49.0 |
5400 |
| 4×1.5 |
0.60 |
0.8 |
1.2 |
10.7 |
13.0 |
210 |
| 4×2.5 |
0.70 |
0.9 |
1.4 |
11.7 |
13.7 |
260 |
| 4×4 |
0.80 |
0.9 |
1.4 |
13.7 |
15.7 |
350 |
| 4×6 |
0.80 |
1.0 |
1.4 |
15.2 |
17.2 |
485 |
| 4×10 |
1.00 |
1.0 |
1.6 |
19.0 |
21.0 |
690 |
| 4×16 |
1.00 |
1.2 |
1.8 |
22.0 |
24.0 |
1090 |
| 4×25 |
1.00 |
1.3 |
2.2 |
26.5 |
29.5 |
1600 |
| 4×35 |
1.00 |
1.3 |
2.3 |
30.0 |
33.0 |
2090 |
| 4×50 |
1.10 |
1.5 |
2.6 |
34.5 |
38.5 |
2700 |
| 4×70 |
1.10 |
1.5 |
2.6 |
39.5 |
43.5 |
3620 |
| 4×95 |
1.20 |
1.7 |
2.8 |
45.0 |
49.0 |
4710 |
| 4×120 |
1.20 |
2.0 |
3.3 |
51.0 |
55.0 |
6020 |
(N)SHOEU-O
| Number of Cores×Nominal Cross Section |
Insulation Thickness |
Thickness of Inner Sheath |
Thickness of Outer Sheath |
Minimum Overall Diameter |
Maximum Overall Diameter |
Nominal Weight |
| No. ×mm^2 |
mm |
mm |
mm |
mm |
mm |
kg/km |
| 5×1.5 |
0.60 |
0.8 |
1.2 |
12.0 |
14.0 |
240 |
| 5×2.5 |
0.70 |
0.9 |
1.3 |
13.0 |
14.8 |
305 |
| 5×4 |
0.80 |
0.9 |
1.4 |
14.8 |
17.0 |
440 |
| 5×6 |
0.80 |
1.0 |
1.6 |
17.0 |
19.0 |
580 |
| 5×10 |
1.00 |
1.0 |
1.6 |
20.0 |
23.0 |
870 |
| 5×16 |
1.00 |
1.2 |
1.8 |
23.8 |
26.8 |
1280 |
| 5×25 |
1.00 |
1.3 |
2.3 |
29.5 |
32.5 |
1950 |
| 2×1.5 |
0.60 |
0.8 |
1.2 |
9.8 |
11.8 |
155 |
| 7×1.5 |
0.60 |
0.9 |
1.4 |
13.0 |
14.6 |
295 |
| 8×1.5 |
0.60 |
0.9 |
1.4 |
14.0 |
15.6 |
320 |
| 10×1.5 |
0.60 |
1.0 |
1.6 |
15.5 |
17.5 |
390 |
| 12×1.5 |
0.60 |
1.0 |
1.6 |
16.5 |
18.5 |
445 |
| 2×2.5 |
0.70 |
0.8 |
1.2 |
10.8 |
12.8 |
195 |
| 4×2.5 |
0.70 |
0.9 |
1.4 |
11.7 |
13.7 |
290 |
| 7×2.5 |
0.70 |
0.9 |
1.4 |
15.0 |
17.0 |
410 |
| 8×2.5 |
0.70 |
0.9 |
1.4 |
16.0 |
19.0 |
430 |
| 10×2.5 |
0.70 |
1.0 |
1.6 |
18.0 |
20.5 |
520 |
| 12×2.5 |
0.70 |
1.0 |
1.6 |
18.5 |
21.5 |
580 |
| 18×2.5 |
0.70 |
1.0 |
1.6 |
21.5 |
24.5 |
835 |
| 24×2.5 |
0.70 |
1.2 |
1.8 |
25.5 |
28.5 |
895 |
| 2×4 |
0.80 |
0.9 |
1.2 |
12.0 |
13.6 |
250 |
| 12×4 |
0.80 |
1.2 |
1.8 |
25.0 |
28.0 |
990 |
| 1×16 |
1.00 |
- |
1.4 |
9.6 |
11.2 |
215 |
| 1×25 |
1.00 |
- |
1.7 |
11.2 |
13.2 |
325 |
| 1×35 |
1.00 |
- |
1.8 |
12.6 |
14.6 |
430 |
| 1×50 |
1.10 |
- |
2.0 |
14.6 |
16.6 |
610 |
| 1×70 |
1.10 |
- |
2.2 |
16.6 |
18.6 |
825 |
| 1×95 |
1.20 |
- |
2.3 |
18.9 |
20.9 |
1070 |
| 1×120 |
1.20 |
- |
2.4 |
20.8 |
22.8 |
1300 |
| 1×150 |
1.30 |
- |
2.5 |
23.0 |
25.0 |
1610 |
| 1×185 |
1.40 |
- |
2.6 |
24.9 |
27.9 |
2000 |
| 1×240 |
1.50 |
- |
2.8 |
28.2 |
31.2 |
2500 |
| 1×300 |
1.80 |
- |
3.3 |
31.8 |
34.8 |
3200 |
| 3×2.5 |
0.70 |
0.8 |
1.2 |
11.3 |
12.9 |
240 |
| 3×4 |
0.80 |
0.9 |
1.3 |
12.5 |
14.1 |
295 |
| 3×6 |
0.80 |
1.0 |
1.4 |
13.9 |
15.5 |
370 |
| 3×10 |
1.00 |
1.0 |
1.4 |
16.8 |
18.8 |
570 |
| 3×16 |
1.00 |
1.0 |
1.6 |
19.0 |
22.0 |
770 |
| 3×25 |
1.00 |
1.2 |
2.0 |
23.5 |
26.5 |
1200 |
| 3×35 |
1.10 |
1.3 |
2.2 |
27.5 |
30.5 |
1570 |
| 3×50 |
1.10 |
1.5 |
2.6 |
31.5 |
35.5 |
2200 |
| 3×70 |
1.10 |
1.5 |
2.6 |
36.0 |
40.0 |
2910 |
| 3×95 |
1.20 |
1.7 |
2.8 |
41.0 |
45.0 |
3780 |
| 3×120 |
1.20 |
1.8 |
3.0 |
45.0 |
49.0 |
4700 |
| 3×150 |
1.30 |
1.7 |
2.8 |
49.0 |
53.0 |
5650 |
| 3×185 |
1.40 |
2.2 |
3.4 |
55.0 |
59.0 |
7050 |
