Flexible Fibre Optic cable

Applications

These cables are designed for the optical transmission of data and signals in tough operational conditions, such as on materials handling equipment (no reeling) or alongside conveyor belts etc., withstanding to high mechanical loads; suitable for outdoor and indoor use, also for hazardous environment.

Standards

DIN VDE 0888

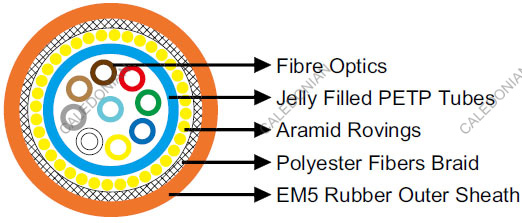

Construction



Fiber Optics Type: 9/125, 50/125 or 62.5/125.
Plastic Tubes PETP tubes filled with jelly.
Stress Relief Aramid rovings.
Braid Polyester fibers.
Sheath Rubber type EM5.
Flexible Fibre Optic cable

Dimensions and Weight

Number of Fibers & Fibre Type Minimum Overall Diameter
 Maximum Overall Diameter Nominal Weight
  mm mm kg/km
1×12G50/125 9 11.0 105
1×12G62.5/125 9 11.0 105
1×12E9/125 9 11.0 105
1×18G50/125 9 11.0 105
1×18G62.5/125 9 11.0 105
1×18E9/125 9 11.0 105
1×24G50/125 9 11.0 105
1×24G62.5/125 9 11.0 105
1×24E9/125 9 11.0 105
