Portable Welding Cable 600V

Applications

These cables are designed for useas flexible welding leads connecting the electrode holder to thewelding machine in the secondary circuit of electric arc welding systems.

Standards

  • ICEA S-75-381/NEMA WC 58
  • ASTM B 172
  • ASTM B 33
  • CAN/CSA C22.2 No. 96
  • UL 1581

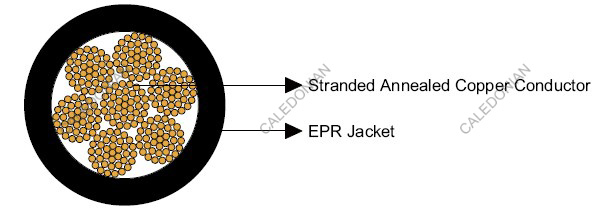

Construction

Portable Welding Cable 600V

  • Conductors: Class K/M stranded annealed copper conductor.
  • Sheath:EPR. Other sheath materials can be offered as an option.

Options:
Other jacket materials such as CSP/PCP/NBR/PVC are available upon request.
Two-layer jacket with reinforcing fibre between the two layers can be offered as an option.

Mechanical and Thermal Properties

  • Minimum Bending Radius: 6×OD
  • Maximum Operating Temperature: +90℃

Dimensions and Weight:

Construction No. of Strands

Nominal Insulation Thickness

Nominal Overall Diameter

Nominal Weight

 Ampacity
No. of cores×AWG/kcmil - inch mm inch mm lbs/kft kg/km A
1×6 259 0.060 1.5 0.37 9.4 124 184 125
1×4 420 0.060 1.5 0.42 10.7 180 268 182
1×2 665 0.060 1.5 0.49 12.5 268 399 271
1×1 836 0.080 2.0 0.53 13.3 319 475 360
1×1/0 1045 0.080 2.0 0.59 14.9 415 617 444
1×2/0 1330 0.080 2.0 0.64 16.3 508 756 535
1×3/0 1672 0.080 2.0 0.70 17.8 628 934 667
1×4/0 2107 0.080 2.0 0.81 20.7 775 1153 809
1×250 2499 0.095 2.4 0.88 22.4 934 1390 1048
1×350 3458 0.095 2.4 1.01 25.6 1267 1885 1396
1×500 5054 0.095 2.4 1.18 30.0 1801 2680 1973
