NEK606 Offshore Marine Cable
S9 IYXI(c) 60 V

Applications

These S9 IYXI(c) 60 V NEK606 Offshore Marine cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.

Standards

• IEC 60092-359	IEC 60332-1
  IEC 60332-3-22	IEC 60754-1,2
  IEC 61034-1,2	NEK 606:2004

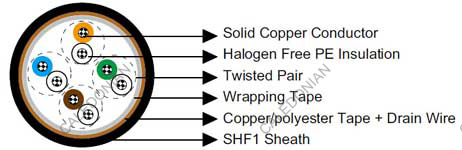

Construction

Conductors : Solid tinned copper, 0.5mm.
Insulation : Halogen-free thermoplastic compound PE.
Twinning : Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
Wrapping : Polyester tape.
Collective Shielding : The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
Sheath : Halogen-free thermoplastic compound, type SHF1, coloured grey.

Electrical Characteristics

• Nominal Conductor Diameter	mm	0.5
  Maximum Resistant@20℃	Ω/km	95
  Nominal Inductance@1KHz	MH/km	0.61
  Mutual Capacitance 1-pair cable	nF/km	90
  Mutual Capacitance 2-pair cable	nF/km	80
  Mutual Capacitance 4-pair and above cable	nF/km	70
  Operating Voltage	V	60

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -10℃ ~ +60℃.

Dimensions and Weight

Construction No. of elements×No. of cores in element×Core diameter (mm)	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
1×2×0.5	0.2	1.2	5.0	30
2×2×0.5	0.2	1.2	5.5	35
4×2×0.5	0.2	1.2	7.0	55
10×2×0.5	0.2	1.5	8.5	90
20×2×0.5	0.2	1.5	11.0	148
30×2×0.5	0.2	1.5	13.5	210
50×2×0.5	0.2	1.5	16.0	320
