NEK606 Offshore Marine Cable
RG6 Armoured Coaxial Cable
Applications :
- These 75Ω RG6 NEK606 Offshore Marine coaxial cables are suitable for installation on board of ships and other indoor marine environments.
Standards :
-
IEC 60092-350 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

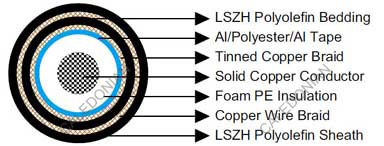

Construction :
- Conductors : 18AWG solid bare copper.
- Insulation : Foam PE.
- Shielding1 : Al/Polyester/Al tape.
- Shielding2 : Tinned copper braid.
- Bedding : Low smoke and halogen-free polyolefin, coloured black.
- Armour : Copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Electrical Characteristics :
-
AWG 18 Nominal Conductor Diameter mm 1.0 Impedance Ω 75+/-5 Nominal Attenuation@100MHz dB/100m 6.9 Nominal Attenuation@200MHz dB/100m 9.0 Nominal Attenuation@300MHz dB/100m 11.8 Nominal Attenuation@400MHz dB/100m 13.1 Nominal Attenuation@500MHz dB/100m 15.4 Nominal Attenuation@900MHz dB/100m 21.5 Nominal Attenuation@1700MHz dB/100m 29.4 Capacitance pF/m 53.5 Velocity of Propagation % 83 Conductor DCR Ω/km 21.4 Shield DCR Ω/km 7.5 Inductance μH/m 0.32 Time Delay ns/m 4
Mechanical and Thermal Properties :
- Bending Radius : 15×OD.
- Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight :
Nominal Inner Conductor Diameter mm | Nominal Insulation Thickness mm | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
---|---|---|---|---|
1.0 | 1.8 | 1.2 | 11.2 | 208 |
