NEK606 Offshore Marine Cable
P105 (Formerly P5 or P5/P12) BFOU 0.6/1KV

Applications

P105 (Formerly P5 or P5/P12) BFOU 0.6/1KV NEK606 Offshore Marine Cables are fire resistant, flame retardant, low smoke,halogen free and mud resistant, used for control, power and lighting systems.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60331-21
    IEC 60332-1 IEC 60332-3-22
    IEC 60754-1,2 IEC 61034-1,2
    NEK 606:2004

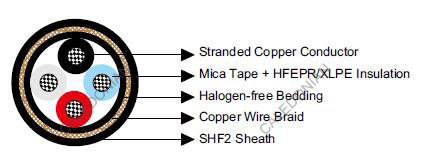

  P5 or P5/P12 BFOU 0.6/1KV NEK606 Marine Cable P5 or P5/P12 BFOU 0.6/1KV NEK606 Marine Cable

Construction

Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2 or calss 5.
Insulation : Mica tape + Halogen free EPR/Mica tape + XLPE.
Bedding : Halogen free compound.
Armour : Tinned copper wire braid in accordance with IEC 60092-350.
Outer Sheath : Halogen free thermosetting compound, SHF2 (for fomerly TYPE P5). Halogen free, mud resistant thermosetting compound, SHF MUD (for fomerly TYPE P5/P12), coloured black.

Electrical Characteristics

Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50
Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4 5.1 6.5 7.4 8.7
Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391
Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196
Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167
Continuous Current Rating@45℃3&4 Core A 16 21 28 36 50 67 89 110 137
Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Nominal Cross Section Area mm² 70 95 120 150 185 240 300 400 630
Nominal Conductor Diameter mm 10.3 12.2 13.8 15.1 17.0 19.6 21.9 24.6 32.5
Maximum DC Resistant@20℃ Ω/km 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0286
Continuous Current Rating@45℃1 Core A 242 293 339 389 444 522 601 690 890
Continuous Current Rating@45℃2 Core A 206 249 288 331 444 444 511 587 757
Continuous Current Rating@45℃3&4 Core A 169 205 237 272 311 365 421 483 623
Short Circuit Current 1s A 10020 13590 17170 21460 26470 34340 42930 57230 90140
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

Bending Radius : 8×OD (during installation); 6×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of cores×Cross section(mm²) Nominal Insulation Thickness mm Nominal Sheath Thickness
mm
Nominal Overall Diameter mm Nominal Weight kg/km
Inner Outer
1×1.5 1.0 1.1 1.1 9.3 145
1×2.5 1.0 1.1 1.1 9.7 160
1×4 1.0 1.1 1.1 10.4 220
1×6 1.0 1.1 1.1 10.9 250
1×10 1.0 1.1 1.2 12.7 310
1×16 1.0 1.1 1.2 13.9 390
1×25 1.2 1.1 1.3 16.3 585
1×35 1.2 1.1 1.3 17.2 690
1×50 1.4 1.1 1.4 19.0 890
1×70 1.4 1.1 1.4 20.6 1110
1×95 1.6 1.1 1.5 23.1 1440
1×120 1.6 1.2 1.6 25.0 1735
1×150 1.8 1.2 1.7 27.0 2060
1×185 2.0 1.2 1.7 29.4 2545
1×240 2.2 1.2 1.8 32.6 3170
1×300 2.4 1.2 1.9 35.3 3910
1×400 2.4 1.4 2.1 41.0 5100
1×630 2.8 1.4 2.3 48.5 7660
2×1.5 1.0 1.1 1.2 14.2 310
2×2.5 1.0 1.1 1.3 15.1 360
2×4 1.0 1.1 1.3 16.6 470
2×6 1.0 1.1 1.4 17.9 555
2×10 1.0 1.1 1.4 19.9 705
2×16 1.0 1.1 1.5 22.5 985
2×25 1.2 1.2 1.6 26.4 1360
2×35 1.2 1.2 1.7 28.4 1620
2×50 1.4 1.2 1.9 32.4 2290
2×70 1.4 1.2 2.1 38.0 3260
2×95 1.6 1.2 2.3 41.6 3910
2×120 1.6 1.4 2.4 45.3 4710
2×150 1.8 1.4 2.6 49.7 5670
2×185 2.0 1.4 2.7 54.3 6840
2×240 2.2 1.6 3.0 61.5 8790
2×300 2.4 1.6 3.2 67.8 10630
3×1.5 1.0 1.1 1.3 14.8 345
3×2.5 1.0 1.1 1.3 16.2 445
3×4 1.0 1.1 1.3 17.4 530
3×6 1.0 1.1 1.4 18.7 635
3×10 1.0 1.1 1.5 21.1 830
3×16 1.0 1.1 1.5 23.7 1160
3×25 1.2 1.2 1.7 28.1 1640
3×35 1.2 1.2 1.8 30.2 1980
3×50 1.4 1.2 2.0 34.3 2750
3×70 1.4 1.2 2.2 39.0 3675
3×95 1.6 1.4 2.4 44.7 4955
3×120 1.6 1.4 2.5 48.3 6035
3×150 1.8 1.4 2.7 53.2 7355
3×185 2.0 1.6 2.9 59.5 9025
3×240 2.2 1.6 3.2 66.5 11590
3×300 2.4 1.8 3.4 72.6 13740
4×1.5 1.0 1.1 1.3 16.4 400
4×2.5 1.0 1.1 1.3 17.3 505
4×4 1.0 1.1 1.4 18.8 620
4×6 1.0 1.1 1.4 20.1 750
4×10 1.0 1.1 1.5 22.7 985
4×16 1.0 1.2 1.6 25.9 1400
4×25 1.2 1.2 1.8 30.7 1995
4×35 1.2 1.2 1.9 33.1 2440
4×50 1.4 1.4 2.0 38.2 3430
4×70 1.4 1.4 2.2 42.7 4600
4×95 1.6 1.6 2.4 49.4 6135
4×120 1.6 1.6 2.5 53.6 7515
4×150 1.8 1.6 2.9 59.0 9010
4×185 2.0 1.6 3.1 64.7 11000
4×240 2.2 1.8 3.4 73.1 14160
4×300 2.4 1.8 3.7 80.7 17550
5×1.5 1.0 1.1 1.4 17.7 510
6×1.5 1.0 1.1 1.4 19.0 545
7×1.5 1.0 1.1 1.4 19.0 590
8×1.5 1.0 1.1 1.5 21.8 715
9×1.5 1.0 1.1 1.6 23.3 720
10×1.5 1.0 1.1 1.6 23.6 790
12×1.5 1.0 1.2 1.6 24.3 880
14×1.5 1.0 1.2 1.7 25.5 965
16×1.5 1.0 1.2 1.7 26.7 1035
19×1.5 1.0 1.2 1.7 27.4 1185
20×1.5 1.0 1.2 1.8 29.5 1260
23×1.5 1.0 1.2 1.9 31.8 1435
24×1.5 1.0 1.2 2.0 33.2 1510
27×1.5 1.0 1.2 2.0 33.9 1615
30×1.5 1.0 1.2 2.0 34.9 1735
32×1.5 1.0 1.4 2.0 35.5 1800
33×1.5 1.0 1.4 2.0 36.7 1940
37×1.5 1.0 1.4 2.0 38.0 2090
44×1.5 1.0 1.4 2.3 42.6 2460
5×2.5 1.0 1.1 1.4 18.8 595
6×2.5 1.0 1.1 1.4 20.4 650
7×2.5 1.0 1.1 1.4 20.4 700
8×2.5 1.0 1.1 1.5 23.5 790
9×2.5 1.0 1.1 1.6 25.1 860
10×2.5 1.0 1.1 1.6 25.4 955
12×2.5 1.0 1.2 1.6 26.1 1045
14×2.5 1.0 1.2 1.7 27.3 1160
16×2.5 1.0 1.2 1.8 28.8 1265
19×2.5 1.0 1.2 1.8 29.6 1445
20×2.5 1.0 1.2 1.9 31.8 1545
23×2.5 1.0 1.4 2.0 34.7 1805
24×2.5 1.0 1.4 2.0 35.8 1850
27×2.5 1.0 1.4 2.0 35.4 1970
30×2.5 1.0 1.4 2.1 38.1 2235
33×2.5 1.0 1.4 2.2 39.6 2390
37×2.5 1.0 1.4 2.3 41.2 2610
44×2.5 1.0 1.4 2.4 46.2 3075
