NEK606 Offshore Marine Cable
P118 (Formerly P34) BFOU-HCF 0.6/1 kV

Applications

These P118 (Formerly P34) BFOU-HCF 0.6/1 kV NEK606 Offshore Marine cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency control, power and lighting systems that need to be operational during a 1100℃ hydrocarbon fire.

Standards

  • IEC 60092-353 IEC 60092-351
    IEC 60092-359 IEC 60331-21
    IEC 60332-1 IEC 60332-3-22
    IEC 60754-1,2 IEC 61034-1,2
    NEK 606:2004

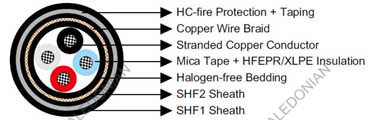

  P34 BFOU-HCF 0.6/1 kV NEK606 Marine Cable P34 BFOU-HCF 0.6/1 kV NEK606 Marine Cable

Construction

  • Conductors : Tinned annealed stranded compacted copper to IEC 60228 class 2 or class 5.
  • Insulation : Mica tape + Halogen free EPR/XLPE.
  • Bedding : Halogen free compound.
  • Armour : Tinned copper wire braid in accordance with IEC 60092-350.
  • Outer Sheath1 : Halogen free thermosetting compound, SHF2.
  • HC-fire protection : Extruded thermoplastic fire protection compound.
  • Taping : Lapped glass fibre tape.
  • Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, SHF1, coloured black.

Electrical Characteristics

Nominal Cross Section Area mm² 1.5 2.5 4 6 16 35
Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 5.1 7.4
Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.16 0.529
Continuous Current Rating@45℃1 Core A 23 30 40 52 96 157
Continuous Current Rating@45℃2 Core A 20 26 34 44 82 133
Continuous Current Rating@45℃3&4 Core A 16 21 28 36 67 110
Short Circuit Current 1s A 210 360 570 860 2290 5010
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Nominal Cross Section Area mm² 50 70 95 120 150 185 240 300
Nominal Conductor Diameter mm 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
Maximum DC Resistant@20℃ Ω/km 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
Continuous Current Rating@45℃1 Core A 196 242 293 339 389 444 522 601
Continuous Current Rating@45℃2 Core A 167 206 249 288 331 444 444 511
Continuous Current Rating@45℃3&4 Core A 137 169 205 237 272 311 365 421
Short Circuit Current 1s A 7150 10020 13590 17170 21460 26470 34340 42930
Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1
Note: For more than 4-cores, the current ratings may be calculated from the following formula (IN=I1/ ³√ N ), I1= Current rating for 1-core, N = Number of cores.

Ambient Temperature Correction Factors

Ambient Temperature Correction Factors 35 40 45 50 55 60 65 70 75 80
Rating Factor 1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47

Mechanical and Thermal Properties

Bending Radius :20×OD (during installation); 12×OD (fixed installed).

Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of cores×Cross section
(mm²)
Nominal Insulation Thickness
mm
Nominal Diameter Over Bedding
mm
Nominal Diameter Over Sheath1
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
1×50 1.4 15.0 18.5 45.5 2900
1×70 1.4 16.5 20.5 47.5 3300
1×95 1.6 18.5 23.0 50.5 3800
1×120 1.6 20.5 25.0 52.5 4260
1×150 1.8 23.0 27.0 54.5 4750
1×185 2.0 25.0 29.5 57.5 5380
1×240 2.2 28.0 32.5 66.0 7050
1×300 2.4 30.5 35.5 68.0 8000
2×1.5 1.0 10.0 13.0 40.5 1890
2×2.5 1.0 11.0 14.5 42.0 2080
3×1.5 1.0 10.5 14.0 42.0 2140
3×2.5 1.0 11.5 15.0 42.5 2200
3×4 1.0 13.0 16.5 43.0 2400
3×6 1.0 14.0 18.0 45.0 2600
3×16 1.0 18.5 23.0 50.0 3500
3×35 1.2 25.0 29.5 57.5 4840
3×70 1.4 33.0 39.0 72.0 8150
3×120 1.6 41.0 48.0 81.5 11300
3×150 1.8 46.0 54.5 88.5 13300
4×2.5 1.0 12.5 16.5 44.0 2300
4×6 1.0 15.5 19.5 47.5 2870
4×16 1.0 20.5 25.0 53.5 3830
7×1.5 1.0 14.0 17.5 44.5 2550
12×1.5 1.0 18.5 22.5 50.0 3140
27×1.5 1.0 26.5 31.0 64.5 5070
7×2.5 1.0 15.0 19.0 46.0 2760
12×2.5 1.0 20.5 24.5 52.0 3500
