NEK606 Offshore Marine Cable
P101 (Formerly P1 or P1/P8) RFOU/TFOU 0.6/1KV
Applications
P101 (Formerly P1 or P1/P8) RFOU/TFOU 0.6/1KV NEK606 Offshore Marine cables are flame retardant, low smoke, halogen freeand mud resistant, used for control, power and lighting systems.
Standards
-
IEC 60092-353 IEC 60092-351 IEC 60092-359 IEC 60332-1 IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

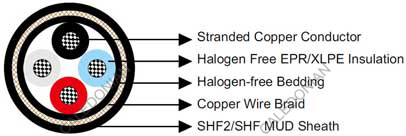

Construction
Conductors : Tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Insulation: Halogen-free EPR or XLPE.
Bedding : Extruded halogen free compound.
Armour : Tinned copper wire braid in accordance with IEC 60092-350.
Outer Sheath : Halogen free thermosetting compound, SHF2 (for TYPE 101, formerly TYPE P1). Halogen free, mud resistant thermosetting compound, SHF MUD (formerly TYPE P1/P8), coloured black.
Electrical Characteristics
-
Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 70 Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3 Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27 Continuous Current Rating@45℃1 Core A 23 30 40 52 72 96 127 157 196 242 Continuous Current Rating@45℃2 Core A 20 26 34 44 61 82 108 133 167 206 Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169 Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Nominal Cross Section Area mm² 95 120 150 185 240 300 400 500 630 Nominal Conductor Diameter mm 12.2 13.8 15.1 17.0 19.6 21.9 24.6 27.6 32.5 Maximum DC Resistant@20℃ Ω/km 0.195 0.154 0.126 0.1 0.0762 0.0607 0.0475 0.0369 0.0286 Continuous Current Rating@45℃1 Core A 293 339 389 444 522 601 690 780 890 Continuous Current Rating@45℃2 Core A 249 288 331 444 444 511 587 663 757 Continuous Current Rating@45℃3&4 Core A 205 237 272 311 365 421 483 546 623 Short Circuit Current 1s A 13590 17170 21460 26470 34340 42930 57230 71540 90140 Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 -
Ambient Temperature Correction Factors
-
Ambient Temperature Correction Factors
35 40 45 50 55 60 65 70 75 80 Rating Factor1.1 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight
Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness mm | Nominal Diameter Over Bedding mm |
Nominal Overall Diameter mm | Nominal Weight kg/km |
|
---|---|---|---|---|---|
Inner | Outer | ||||
1×1.5 | 1.0 | 1.1 | 1.1 | 8.9 | 135 |
1×2.5 | 1.0 | 1.1 | 1.1 | 9.3 | 150 |
1×4 | 1.0 | 1.1 | 1.1 | 9.9 | 180 |
1×6 | 1.0 | 1.1 | 1.1 | 10.4 | 205 |
1×10 | 1.0 | 1.1 | 1.2 | 12.2 | 295 |
1×16 | 1.0 | 1.1 | 1.2 | 13.5 | 385 |
1×25 | 1.2 | 1.1 | 1.2 | 15.4 | 525 |
1×35 | 1.2 | 1.1 | 1.3 | 16.9 | 685 |
1×50 | 1.4 | 1.1 | 1.4 | 18.7 | 870 |
1×70 | 1.4 | 1.1 | 1.4 | 20.4 | 1105 |
1×95 | 1.6 | 1.1 | 1.5 | 22.8 | 1435 |
1×120 | 1.6 | 1.2 | 1.6 | 24.9 | 1745 |
1×150 | 1.8 | 1.2 | 1.6 | 26.8 | 2055 |
1×185 | 2.0 | 1.2 | 1.7 | 29.3 | 2560 |
1×240 | 2.2 | 1.2 | 1.8 | 32.5 | 3190 |
1×300 | 2.4 | 1.2 | 1.9 | 35.2 | 3935 |
1×400 | 2.4 | 1.4 | 2.1 | 40.5 | 5060 |
1×500 | 2.4 | 1.4 | 2.2 | 44.0 | 6180 |
1×630 | 2.4 | 1.4 | 2.3 | 48.0 | 7620 |
2×1.5 | 1.0 | 1.1 | 1.2 | 13.6 | 295 |
2×2.5 | 1.0 | 1.1 | 1.2 | 14.4 | 335 |
2×4 | 1.0 | 1.1 | 1.3 | 16.1 | 445 |
2×6 | 1.0 | 1.1 | 1.3 | 17.1 | 520 |
2×10 | 1.0 | 1.1 | 1.4 | 19.3 | 680 |
2×16 | 1.0 | 1.1 | 1.5 | 21.7 | 955 |
2×25 | 1.2 | 1.2 | 1.6 | 25.9 | 1335 |
2×35 | 1.2 | 1.2 | 1.7 | 27.9 | 1595 |
2×50 | 1.4 | 1.2 | 1.9 | 31.9 | 2250 |
2×70 | 1.4 | 1.2 | 2.1 | 35.8 | 2795 |
2×95 | 1.6 | 1.2 | 2.3 | 41.2 | 3780 |
2×120 | 1.6 | 1.4 | 2.4 | 44.8 | 4560 |
2×150 | 1.8 | 1.4 | 2.6 | 49.2 | 5500 |
2×185 | 2.0 | 1.4 | 2.7 | 53.8 | 6675 |
2×240 | 2.2 | 1.6 | 3.0 | 61.0 | 8605 |
2×300 | 2.4 | 1.6 | 3.2 | 67.0 | 10510 |
3×1.5 | 1.0 | 1.1 | 1.2 | 14.2 | 320 |
3×2.5 | 1.0 | 1.1 | 1.3 | 15.6 | 415 |
3×4 | 1.0 | 1.1 | 1.3 | 16.8 | 500 |
3×6 | 1.0 | 1.1 | 1.4 | 18.1 | 605 |
3×10 | 1.0 | 1.1 | 1.4 | 20.3 | 795 |
3×16 | 1.0 | 1.1 | 1.5 | 22.8 | 1125 |
3×25 | 1.2 | 1.2 | 1.6 | 27.5 | 1620 |
3×35 | 1.2 | 1.2 | 1.7 | 29.6 | 1955 |
3×50 | 1.4 | 1.2 | 1.9 | 33.9 | 2730 |
3×70 | 1.4 | 1.4 | 2.0 | 38.4 | 3655 |
3×95 | 1.6 | 1.4 | 2.2 | 43.8 | 4885 |
3×120 | 1.6 | 1.4 | 2.3 | 47.6 | 6000 |
3×150 | 1.8 | 1.6 | 2.5 | 52.4 | 7300 |
3×185 | 2.0 | 1.6 | 2.7 | 58.6 | 8960 |
3×240 | 2.2 | 1.8 | 2.9 | 66.1 | 11610 |
3×300 | 2.2 | 1.8 | 3.4 | 71.9 | 13490 |
4×1.5 | 1.0 | 1.1 | 1.3 | 15.7 | 350 |
4×2.5 | 1.0 | 1.1 | 1.3 | 16.6 | 425 |
4×4 | 1.0 | 1.1 | 1.4 | 18.1 | 590 |
4×6 | 1.0 | 1.1 | 1.4 | 19.5 | 725 |
4×10 | 1.0 | 1.1 | 1.5 | 22.1 | 955 |
4×16 | 1.0 | 1.2 | 1.6 | 25.2 | 1375 |
4×25 | 1.2 | 1.2 | 1.7 | 30.0 | 1965 |
4×35 | 1.2 | 1.2 | 1.8 | 32.4 | 2410 |
4×50 | 1.4 | 1.4 | 2.0 | 37.3 | 3365 |
4×70 | 1.4 | 1.4 | 2.2 | 42.1 | 4580 |
4×95 | 1.6 | 1.4 | 2.4 | 48.2 | 6020 |
4×120 | 1.6 | 1.6 | 2.5 | 52.7 | 7440 |
4×150 | 1.8 | 1.6 | 2.9 | 58.3 | 8800 |
4×185 | 2.0 | 1.6 | 3.1 | 64.0 | 10760 |
4×240 | 2.2 | 1.8 | 3.4 | 72.4 | 13890 |
4×300 | 2.4 | 1.8 | 3.7 | 79.8 | 17405 |
5×1.5 | 1.0 | 1.1 | 1.3 | 16.7 | 420 |
6×1.5 | 1.0 | 1.1 | 1.3 | 17.8 | 495 |
7×1.5 | 1.0 | 1.1 | 1.3 | 17.8 | 540 |
8×1.5 | 1.0 | 1.1 | 1.5 | 20.3 | 645 |
9×1.5 | 1.0 | 1.1 | 1.5 | 21.5 | 675 |
10×1.5 | 1.0 | 1.1 | 1.5 | 21.8 | 705 |
12×1.5 | 1.0 | 1.1 | 1.5 | 22.5 | 805 |
14×1.5 | 1.0 | 1.1 | 1.6 | 23.6 | 860 |
16×1.5 | 1.0 | 1.1 | 1.7 | 24.9 | 940 |
19×1.5 | 1.0 | 1.1 | 1.7 | 26.0 | 1100 |
20×1.5 | 1.0 | 1.1 | 1.7 | 27.2 | 1130 |
23×1.5 | 1.0 | 1.1 | 1.8 | 29.3 | 1285 |
24×1.5 | 1.0 | 1.1 | 1.8 | 30.0 | 1305 |
27×1.5 | 1.0 | 1.1 | 1.9 | 30.8 | 1460 |
30×1.5 | 1.0 | 1.1 | 1.9 | 31.8 | 1520 |
33×1.5 | 1.0 | 1.2 | 2.0 | 33.5 | 1670 |
37×1.5 | 1.0 | 1.2 | 2.0 | 34.6 | 1840 |
44×1.5 | 1.0 | 1.2 | 2.2 | 39.2 | 2210 |
5×2.5 | 1.0 | 1.1 | 1.4 | 18.0 | 555 |
6×2.5 | 1.0 | 1.1 | 1.4 | 19.2 | 590 |
7×2.5 | 1.0 | 1.1 | 1.4 | 19.2 | 655 |
8×2.5 | 1.0 | 1.1 | 1.5 | 21.8 | 775 |
9×2.5 | 1.0 | 1.1 | 1.6 | 23.3 | 785 |
10×2.5 | 1.0 | 1.1 | 1.6 | 23.6 | 865 |
12×2.5 | 1.0 | 1.1 | 1.6 | 24.5 | 955 |
14×2.5 | 1.0 | 1.1 | 1.7 | 25.5 | 1070 |
16×2.5 | 1.0 | 1.1 | 1.7 | 26.7 | 1155 |
19×2.5 | 1.0 | 1.1 | 1.8 | 28.2 | 1360 |
20×2.5 | 1.0 | 1.1 | 1.8 | 29.5 | 1410 |
23×2.5 | 1.0 | 1.1 | 1.9 | 31.8 | 1610 |
24×2.5 | 1.0 | 1.2 | 2.0 | 33.2 | 1690 |
27×2.5 | 1.0 | 1.2 | 2.0 | 33.9 | 1815 |
30×2.5 | 1.0 | 1.2 | 2.0 | 34.9 | 1960 |
33×2.5 | 1.0 | 1.2 | 2.1 | 36.7 | 2190 |
37×2.5 | 1.0 | 1.2 | 2.1 | 38.0 | 2370 |
44×2.5 | 1.0 | 1.2 | 2.3 | 42.6 | 2795 |
