NEK606 Offshore Marine Cable
P109 TFLI (Formerly P16 IFLI) 250 V

Applications

  • P109 TFLI (Formerly P16 IFLI) 250 V NEK606 Offshore Marine Cable are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

Standards

  • IEC 60092-376 IEC 60092-351
    IEC 60092-359 IEC 60332-1
    IEC 60332-3-22 IEC 60754-1,2
    IEC 61034-1,2 NEK 606:2004
  NEK606 Offshore Marine Cable P109 TFLI (Formerly P16 IFLI) 250 V NEK606 Offshore Marine Cable P109 TFLI (Formerly P16 IFLI) 250 V

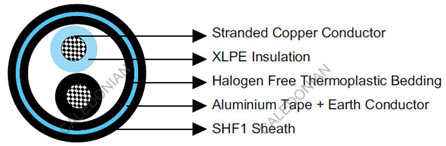

Construction

  • Conductors : Circular stranded copper wire to IEC 60228 class 2.
  • Insulation : XLPE.
  • Bedding : Halogen free thermoplastic compound.
  • Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.
  • Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.

Electrical Characteristics

  • Nominal Cross Section Area mm² 2.5
    Maximum Resistant@20℃ Ω/km 7.41
    Continuous Current Rating@45℃2 Core A 26
    Short Circuit Current 1s A 360
    Operating Voltage V 250

Mechanical and Thermal Properties

  • Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
  • Temperature Range : -20℃ ~ +90℃.

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section
(mm²)
Nominal Insulation Thickness
mm
Nominal Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
Inner Outer
2×1×2.5 0.7 1.1 1.2 10.0 180
