NEK606 Offshore Marine Cable
P108 (Formerly P15) UX 0.6/1kV
Applications
These P108 (Formerly P15) UX 0.6/1kV NEK606 Offshore Marine cables are flame retardant, low smoke and halogen free, used for earthing and bonding services.
Standards
| IEC 60092-353 |
IEC 60092-359 |
| IEC 60332-1 |
IEC 60332-3-22 |
| IEC 60754-1,2 |
IEC 61034-1,2 |
| NEK 606:2004 |
|

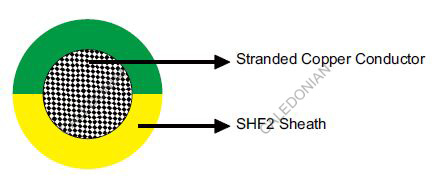

Construction
Conductors : Tinned annealed stranded copper to IEC 60228 class 2 or class 5.
Sheath: Halogen free thermosetting compound, SHF2.yellow/green.
Electrical Characteristics
| Nominal Cross Section Area |
mm² |
10 |
16 |
25 |
35 |
50 |
70 |
| Nominal Conductor Diameter |
mm |
4 |
5.1 |
6.5 |
7.4 |
8.7 |
10.3 |
| Maximum DC Resistant@20℃ |
Ω/km |
1.84 |
1.16 |
0.734 |
0.529 |
0.391 |
0.27 |
| Continuous Current Rating@45℃1 Core |
A |
72 |
96 |
127 |
157 |
196 |
242 |
| Short Circuit Current 1s |
A |
1430 |
2290 |
3580 |
5010 |
7150 |
10020 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
| Nominal Cross Section Area |
mm² |
95 |
120 |
150 |
185 |
240 |
300 |
| Nominal Conductor Diameter |
mm |
12.2 |
13.8 |
15.1 |
17.0 |
19.6 |
21.9 |
| Maximum DC Resistant@20℃ |
Ω/km |
0.195 |
0.154 |
0.126 |
0.1 |
0.0762 |
0.0607 |
| Continuous Current Rating@45℃1 Core |
A |
293 |
339 |
389 |
444 |
522 |
601 |
| Short Circuit Current 1s |
A |
13590 |
17170 |
21460 |
26470 |
34340 |
42930 |
| Operating Voltage |
KV |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
0.6/1 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 6×OD (fixed installed).
Temperature Range : -20℃ ~ +90℃.
Dimensions and Weight
| Construction No. of cores×Cross section (mm²) |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| 1×10 |
1.0 |
6.6 |
125 |
| 1×16 |
1.0 |
7.7 |
185 |
| 1×25 |
1.2 |
9.5 |
290 |
| 1×35 |
1.2 |
10.4 |
380 |
| 1×50 |
1.4 |
12.1 |
510 |
| 1×70 |
1.4 |
13.6 |
700 |
| 1×95 |
1.6 |
15.5 |
950 |
| 1×120 |
1.6 |
17.5 |
1205 |
| 1×150 |
1.8 |
19.4 |
1470 |
| 1×185 |
2.0 |
21.7 |
1875 |
| 1×240 |
2.2 |
24.7 |
2420 |
| 1×300 |
2.4 |
27.2 |
3060 |
