NEK606 Offshore Marine Cable
Mud Resistant Composite Cable
Applications
These composite cables consist of cat6 data cable & coaxial cable & power cable, with copper wire braid armoured & flame retardant oil&mud resistant outer sheath.
Standards :
| IEC 60092-359 |
IEC 60332-3-22 |
| IEC 60754-1,2 |
IEC 61034-1,2 |
| NEK 606:2004 |
|

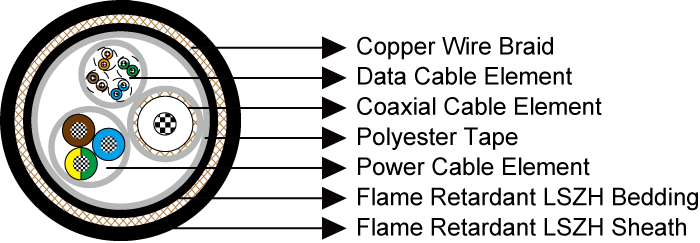

Construction
1) 4×2×0.57mm U/UTP Cat6 Data Cable:
| |
Conductors : Solid bare copper wire. |
| |
Insulation : PE. |
| |
Twinning : Two coloured insulated wire twisted to form a pair. |
| |
Sheath : Flame retardant LSZH, coloured grey. |
2) RG59 Coaxial Cable:
| |
Conductors : 0.58mm solid bare copper wire. |
| |
Insulation : PE. |
| |
Shielding : Bare copper wire braid. |
| |
Sheath : Flame retardant LSZH, coloured grey. |
3) 3×1.0mm² Power Cable :
| |
Conductors : 7/0.44mm stranded bare copper wire. |
| |
Insulation : XLPE. Coloured Blue, Brown, Green/Yellow. |
| |
Sheath : Flame retardant LSZH, coloured grey |
4) Element Assembly :
| |
Bedding : Flame retardant LSZH. |
| |
Armour : Tinned copper wire braid. |
| |
Outer Sheath : Oil & mud resistant, flame retardant LSZH, coloured grey. |
| |
Filler : PP, PVC, PE or LSZH Material. |
| |
Wrapping : Polyester Tape. |
Dimensions
| Cable Construction |
Nominal Data Cable Diameter mm |
Nominal Coaxial Cable Diameter |
Nominal Power Cable Diameter |
Nominal Overall Diameter |
| |
|
mm |
mm |
mm |
| 4×2×0.57mm + RG59 + 3×1.0mm² |
6.0 |
6.2 |
6.8 |
21.0 |
Note: Other construction can be offered opon request.
