NEK606 Offshore Marine Cable
Cat5E UTP/FTP Armoured Data Cable
Applications
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
IEC 60332-3-22 | IEC 60754-1,2 |
IEC 61034-1,2 | NEK 606:2004 |

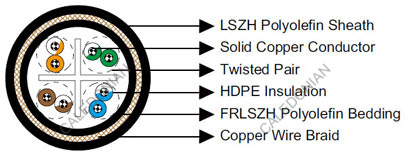

Construction
Conductors : 23AWG solid bare copper.
Insulation : HDPE.
Twinning : Two coloured insulated conductors twisted together to form a pair.
Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armour : 0.2/0.3mm copper wire braid.
Outer Sheath : Low smoke and halogen-free polyolefin.
Optional :

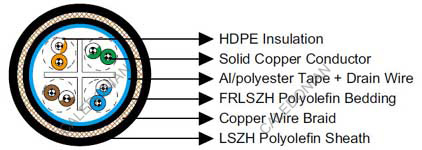

Cat6 F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat6 SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.
Electrical Characteristics
AWG | 24 | |
---|---|---|
Nominal Conductor Diameter | mm | 0.58 |
Maximum DC Resistant@20℃ | Ω/100m | 9.38 |
Maximum DCR Unbalance | % | 3 |
Maximum Mutual Capacitance | pF/m | 5.8 |
Maximum Capacitance Unbalance | pF/100m | 30 |
Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
Maximum Propagation Delay Skew | ns/100m | 18 |
FREQ MHz | Maximum Attenuation dB/100m | Minimum NEXT dB | Minimum PSNEXT dB | Minimum ELFEXT dB/100m | Minimum PSELFEXT dB/100m | Minimum RL dB |
---|---|---|---|---|---|---|
0.772 | 1.8 | 76.0 | 74.0 | 70.0 | 67.0 | — |
1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
Mechanical and Thermal Properties
Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight
Construction No. of elements×No. of cores in element×Conductor diameter (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
---|---|---|---|---|
4×2×0.58 | 0.2 | 1.2 | 11.5 | 214 |
