NEK606 Offshore Marine Cable
Cat5E UTP/FTP Armoured Data Cable
Applications
- Cat5E UTP/FTP Armoured Marine Data Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
Standards
-
IEC 60332-3-22 IEC 60754-1,2 IEC 61034-1,2 NEK 606:2004

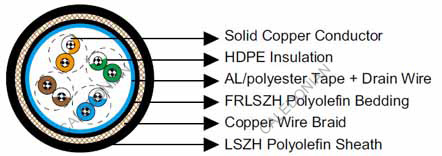

Construction
- Conductors : 24AWG solid bare copper.
- Insulation : HDPE.
- Twinning : Two coloured insulated conductors twisted together to form a pair.
- Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
- Armour : 0.2/0.3mm copper wire braid.
- Outer Sheath : Low smoke and halogen-free polyolefin.
Optional :
- Cat5E F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.
- Cat5E SF/UTP :These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire
-
Electrical Characteristics
-
AWG 18 Nominal Conductor Diameter mm 1.0 Maximum DC Resistant@20℃ Ω/100m 9.38 Maximum DCR Unbalance % 5 Maximum Mutual Capacitance pF/m 55.8 Maximum Capacitance Unbalance pF/100m 330 Characteristic Impedance@1-100MHz Ω 100+/-15 Maximum Propagation Delay Skew ns/100m 45 -
FREQ MHz Maximum Attenuation dB/100m Minimum NEXT dB Minimum PSNEXT dB Minimum ELFEXT dB/100m Minimum PSELFEXT dB/100m Minimum RL dB 0.772 1.8 67.0 64.0 66.0 63.0 — 1 2.0 65.3 62.3 63.8 60.8 20.0 4 4.1 56.3 53.3 51.7 48.7 23.0 8 5.8 51.8 48.8 45.7 42.7 24.5 10 6.5 50.3 47.3 43.8 40.8 25.0 16 8.2 47.3 44.3 39.7 36.7 25.0 20 9.3 45.8 42.8 37.7 34.7 25.0 25 10.4 44.3 41.3 35.8 32.8 24.3 31.25 11.7 42.9 39.9 33.9 30.9 23.6 62.5 17.0 38.4 35.4 27.8 24.8 21.5 100 22.0 35.3 32.3 23.8 20.8 20.1
Mechanical and Thermal Properties
- Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
- Temperature Range : -30℃ ~ +75℃.
Dimensions and Weight :
Construction No. of elements×No. of cores in element×Conductor diameter (mm²) |
Nominal Insulation Thickness mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
---|---|---|---|---|---|
Inner | Outer | ||||
4×2×0.53 | 0.2 | 0.8 | 1.2 | 11.2 | 208 |
