  Coaxial Cables
RG Coax URM Coax CT Coax

LMR Coax

Product type: LMR 240

bending radius

30mm

operating temperature

-40℃ to +85℃

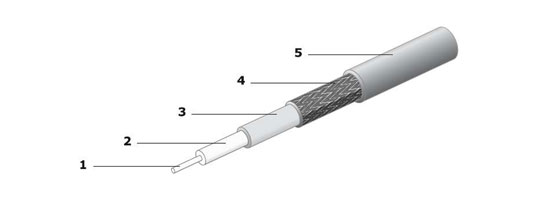

Construction :



Item

Material

Diameter (mm)
1

Inner Conductor(mm)

solid copper

1.42
2

Dielectric(mm)

solid polyethylene

3.81
3

Outer Conductor(mm)

bonded alunimium foil

3.84
4

overall braid

tinned copper

4.52
5

Jacket(mm)

black polyethylene

6.1

Electrical:

Impedance

50ohm

Capacitance(PF/m)

79.4PF/m

volecity of propagation

84%

voltage withstanding

1500V DC

Maximum operating frequency

11 GHz

Attenuation(dB/100m)Max

150Hz

9.9dB

220Hz

12dB

450Hz

17.3dB

900Hz

24.8dB

1500Hz

32.4dB

1800Hz

35.6dB

2000Hz

37.7dB

2500Hz

42.4dB

3000Hz

46.5dB

5800Hz

66.8dB
