PAS 5308 Cables PAS5308 Part 1 / Type 3 (lead sheath cables)
PAS 5308 Cable Part 1 Type 3 IS-OS-Lead SWA

Application

These cables are designed to connect electrical instrumentation and communication systems in and around process plants and similar applications, Generally used to transmit analogue or digital signals in measurement and process control where chemicals may be present. The individual screening of each pair limits the consequence of crosstalk. They are well adapted to underground use in industrial applications, in moist areas, where chemical and mechanical protections are needed. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

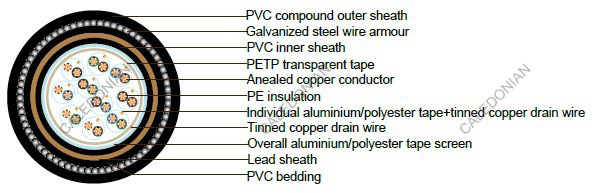

PAS 5308 Cable Part 1 Type 3 IS-OS-Lead SWA

Conductor Annealed copper, sizes: 0.5mm² mulitistranded(Class 5), 0.5 mm² and 1.0 mm² solid(Class 1), 1.5mm² or 2.5 multistranded(Class 2) to BS EN 60228
Insulation thermoplastic PE to BS EN 50290-2-23:2002, grade L/MD or a cross-linked PE to BS EN 50290-2-29
Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm, Two-pair cables without individual pair screens (quads) shall have four cores laid in quad formation round a central dummy
Colour code See technical information
Individual screen Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm²
Binder tape Non-hygroscopic binder tape of minimum thickness 0.023 mm
Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Inner Sheath Extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51
Lead Sheath Lead Alloy conforming to BS EN 50307
Bedding Extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51
Amour Galvanized steel wire armour
Outer sheath extruded sheath of a PVC compound conforming to BS EN 50290-2-22:2002, grade TM51
Sheath colour Generally black

Electrical Properties

Temperature range: above 0˚C( fixed installation)
-15˚C to +65˚C(during operation )

Conductor Area Size mm² 0.5 0.5 1.0 1.5 2.5
Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 1 x 1.13 7 x 0.53 7 x 0.67
Conductor resistance max ohm/km 36.8 39.7 18.4 12.3 7.6
Insulation resistance min Individual conductor Gohm/km 5 5 5 5 5
individual screen Mohm/km 1 1 1 1 1
Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m

250
Max. Mutual Capacitance @ 1 kHz for Non OS or OS cables (except one-pair and two-pairs) pF/m 75 75 75 85 105
Max. Mutual Capacitance @ 1 kHz
IS/OS cables (include 1 pair and
2 pair)		 pF/m 115 115 115 120 140
Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 40 60
Test voltage V 2000 2000 2000 2000 2000
Rated voltage V 300/500 300/500 300/500 300/500 300/500

Parameter

NO. of Pairs Thick- ness of Insula- tion Thick- ness of Inner sheath Dia- meter over Inner sheath Thick- ness of Lead Sheath Dia- meter over Lead Sheath Thick- ness of Bedding Dia- meter over Bedding Thick- ness of Armour Dia- meter over Armor Thick- ness of Sheath Dia- meter of Cable
mm mm mm mm mm mm mm mm mm mm mm
solid conductor 0.5mm² (1/0.80mm)
2 0.5 0.9 8.5 1.1 10.7 0.8 12.3 1.25 14.8 1.5 17.8
5 0.5 0.9 10.9 1.1 13.1 0.8 14.7 1.25 17.2 1.6 20.4
10 0.5 1.1 15.6 1.2 18 1 20 1.6 23.2 1.7 26.6
15 0.5 1.2 18.1 1.2 20.5 1 22.5 1.6 25.7 1.8 29.3
20 0.5 1.3 20.4 1.3 23 1 25 1.6 28.2 1.9 32
30 0.5 1.4 24.2 1.4 27 1.2 29.4 2 33.4 2 37.4
50 0.5 1.7 31.2 1.6 34.4 1.2 36.8 2 40.8 2.2 45.2
stranded conductor 0.5 mm² (16/0.20mm)
2 0.6 0.9 9.7 1.1 11.9 0.8 13.5 1.25 16 1.5 19
5 0.6 1 12.6 1.1 14.8 0.8 16.4 1.25 18.9 1.6 22.1
10 0.6 1.2 18 1.2 20.4 1 22.4 1.6 25.6 1.8 29.2
15 0.6 1.3 20.9 1.3 23.5 1 25.5 1.6 28.7 1.9 32.5
20 0.6 1.4 23.6 1.4 26.4 1.2 28.8 2 32.8 2 36.8
30 0.6 1.6 28.2 1.5 31.2 1.2 33.6 2 37.6 2.2 42
50 0.6 1.8 36.1 1.8 39.7 1.4 42.5 2.5 47.5 2.4 52.3
solid conductor 1.0mm² (1/1.13mm)
2 0.6 0.9 10.3 1.1 12.5 0.8 14.1 1.25 16.6 1.6 19.8
5 0.6 1 13.5 1.1 15.7 1 17.7 1.6 20.9 1.7 24.3
10 0.6 1.2 19.4 1.3 22 1 24 1.6 27.2 1.9 31.0
15 0.6 1.4 22.7 1.4 25.5 1.2 27.9 2 31.9 2.0 35.9
20 0.6 1.5 25.7 1.5 28.7 1.2 31.1 2 35.1 2.1 39.3
30 0.6 1.6 30.4 1.6 33.6 1.2 36 2 40 2.2 44.4
50 0.6 1.9 39.1 1.9 42.9 1.4 45.7 2.5 50.7 2.5 55.7
stranded conductor 1.5 mm² (7/0.53mm)
2 0.6 1 12.1 1.1 14.3 0.8 15.9 1.25 18.4 1.6 21.6
5 0.6 1.1 15.8 1.2 18.2 1 20.2 1.6 23.4 1.8 27
10 0.6 1.4 22.9 1.4 25.7 1.2 28.1 2 32.1 2 36.1
15 0.6 1.5 26.6 1.5 29.6 1.2 32 2 36 2.1 40.2
20 0.6 1.6 30.1 1.6 33.3 1.2 35.7 2 39.7 2.2 44.1
30 0.6 1.8 35.8 1.8 39.4 1.4 42.2 2.5 47.2 2.4 52
50 0.6 2.2 46.2 2.1 50.4 1.6 53.6 2.5 58.6 2.7 64
stranded conductor 2.5 mm² (7/0.67mm)
2 0.6 1 13.5 1.1 15.7 1 17.7 1.6 20.9 1.7 24.3
5 0.6 1.2 17.9 1.2 20.3 1 22.3 1.6 25.5 1.8 29.1
10 0.6 1.5 25.9 1.5 28.9 1.2 31.3 2 35.3 2.1 39.5
15 0.6 1.6 30.1 1.6 33.3 1.2 35.7 2 39.7 2.2 44.1
20 0.6 1.8 34.3 1.7 37.7 1.4 40.5 2.5 45.5 2.4 50.3
30 0.6 2 40.8 1.9 44.6 1.4 47.7 2.5 52.4 2.6 57.6
50 0.6 2.4 52.6 2.3 57.2 1.6 60.4 2.5 65.4 2.9 71.2
