NF M 87-202 EISF
Applications
These NF M 87-202 EISF instrumentation cables are used to transmit analogue or digital signals in easurement and process control where chemicals may be present.

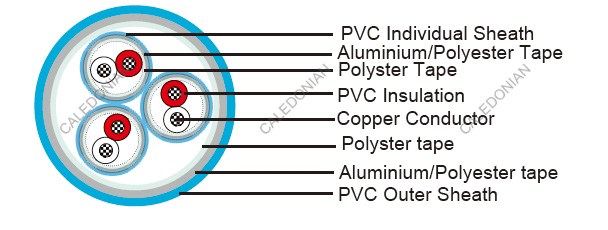

Construction
| Conductor |
Solid or Stranded copper conductor |
| Insulation |
PVC (70 mm maximum pair length) |
| Individual Binder Tape |
Polyster tape |
| Individual Screen |
Aluminium/polyester tape |
| Individual Sheath |
PVC |
| Overall Binder Tape |
Polyster tape |
| Collective Screen |
Aluminium/polyester tape |
| Outer Sheath |
PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant) |
| Outer Sheath Colour |
Light-blue |
Core identification
| Colours |
Natural |
Red |
Blue |
Yellow |
| 1 pair |
√ |
√ |
|
|
| 1 triple |
√ |
√ |
√ |
|
| 1 quad |
√ |
√ |
√ |
√ |
Natural cores printed with pair/triple number
Standards References
- NF M 87-202
- UTE C 32-014
- NF C 32-020
- IEC 60332-1
- IEC 60332-3-24
Characteristics
| Voltage Rationg |
300/500V |
| Operating Temperature |
-40°C/+90°C |
| Installation Temperature |
MAX+50°C |
| Maximum Voltage |
250V |
| Voltage Test |
2000V |
Maximum conductor d.c. Resistance
| Conductor Size |
Ohm/km at +20°C |
| 1/0.80mm(0.50 sqmm) |
37.50 |
| 7/0.40mm(0.88 sqmm) |
21.40 |
| 7/0.53mm(1.50 sqmm) |
12.50 |
Capacitance between cond. (nf/km)
- 0.5 sqmm ≤ 145
- 0.88 sqmm ≤ 160
- 1.50 sqmm ≤ 180
Type/codification
| 1 Serie |
Number of pairs, triples or quads / 01 to 27 |
| 2 Serie |
Lay up in pair(IP) ,triple (IT) , quads (IQ) |
| 3 Serie |
Core section 05 (0.5mm²) , 09 (0.88 mm²) or 15(1.5mm²) |
| 4 Serie |
Overall screen(EG) or individual screen + overall screen(EI) |
| 5 Serie |
Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF) |
Dimensions and Weight
| NF M 87-202 |
Number of beams x cross section |
Cond. mm² |
Outer Diameter(mm) |
Weight(kg/km) |
| |
|
|
Min. |
Max. |
|
| 03 IP 05 EISF |
3X2X0.50 |
0.50 |
11.10 |
12.80 |
180 |
| 07 IP 05 EISF |
7X2X0.50 |
0.50 |
15.40 |
17.70 |
335 |
| 12 IP 05 EISF |
12X2X0.50 |
0.50 |
19.80 |
22.80 |
545 |
| 19 IP 05 EISF |
19X2X0.50 |
0.50 |
24.50 |
28.10 |
820 |
| 27 IP 05 EISF |
27X2X0.50 |
0.50 |
28.90 |
33.20 |
1135 |
| 03 IP 09 EISF |
3X2X0.88 |
0.88 |
13.50 |
15.50 |
270 |
| 07 IP 09 EISF |
7X2X0.88 |
0.88 |
19.00 |
21.80 |
500 |
| 12 IP 09 EISF |
12X2X0.88 |
0.88 |
24.50 |
28.10 |
820 |
| 19 IP 09 EISF |
19X2X0.88 |
0.88 |
30.30 |
34.80 |
1120 |
| 27 IP 09 EISF |
27X2X0.88 |
0.88 |
35.80 |
41.10 |
1700 |
| 01 IP 15 EISF |
1X2X1.50 |
1.50 |
7.20 |
8.40 |
90 |
| 07 IT 05 EISF |
7X3X0.50 |
0.50 |
16.90 |
19.40 |
425 |
| 12 IT 05 EISF |
12X3X0.50 |
0.50 |
21.50 |
24.60 |
695 |
| 07 IT 09 EISF |
7X3X0.88 |
0.88 |
20.60 |
23.70 |
655 |
| 12 IT 09 EISF |
12X3X0.88 |
0.88 |
26.50 |
30.40 |
1045 |
| 01 IT 15 EISF |
1X3X1.50 |
1.50 |
7.50 |
8.80 |
110 |
