NF M 87-202 EGPF

Applications

These NF M 87-202 EGPF instrumentation cables are used for safety extra-low use in petroleum and petrochemical units particularly for the transmission of a.c. or d.c. analogue signals, They lead cover brings an enhanced resistance to aromatics hydrocarbons.

Construction

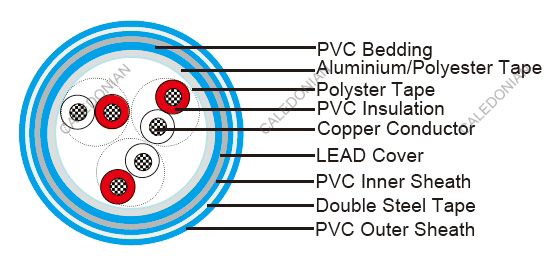

  NF M 87-202 EGPF



Conductor Solid or Stranded copper conductor
Insulation PVC (70 mm maximum pair length)
Binder tape Polyster tape
Collective Screen Aluminium/polyester tape
Bedding PVC
Armouring Double Steel Tap
Outer Sheath PVC (Flame retardant, sunlight, mineral oil and hydrocarton resistant)
Outer Sheath Colour Light-blue

Core identification

Colours Natural Red Blue Yellow
1 pair √ √
1 triple √ √ √
1 quad √ √ √ √

Natural cores printed with pair/triple number

Standards References

  • NF M 87-202
  • UTE C 32-014
  • NF C 32-020
  • IEC 60332-1
  • IEC 60332-3-24

Characteristics

Voltage Rationg 300/500V
Operating Temperature -40°C/+90°C
Installation Temperature MAX+50°C
Maximum Voltage 250V
Voltage Test 2000V

Maximum conductor d.c. Resistance

Conductor Size Ohm/km at +20°C
1/0.80mm(0.50 sqmm) 37.50
7/0.40mm(0.88 sqmm) 21.40
7/0.53mm(1.50 sqmm) 12.50

Capacitance between cond. (nf/km)

  • 0.5 sqmm ≤ 145
  • 0.88 sqmm ≤ 160
  • 1.50 sqmm ≤ 180

Type/codification

1 Serie Number of pairs, triples or quads / 01 to 27
2 Serie Lay up in pair(IP) ,triple (IT) , quads (IQ)
3 Serie Core section 05 (0.5mm²) , 09 (0.88 mm²) or 15(1.5mm²)
4 Serie Overall screen(EG) or individual screen + overall screen(EI)
5 Serie Mechanical protection: without armour (SF), with armour (FA), with lead + armour(PF)

Dimensions and Weight

NF M 87-202 Number of beams x cross section Cond. mm² Outer Diameter(mm) Weight(kg/km)
      Min. Max.
01 IQ 05 EGPF 1X4X0.50 0.50 11.30 12.60 453
02 IP 05 EGPF 2X2X0.50 0.50 10.60 11.90 401
03 IP 05 EGPF 3X2X0.50 0.50 13.70 15.70 635
07 IP 05 EGPF 7X2X0.50 0.50 16.30 18.70 840
12 IP 05 EGPF 12X2X0.50 0.50 19.40 22.20 1160
19 IP 05 EGPF 19X2X0.50 0.50 22.90 26.30 1550
27 IP 05 EGPF 27X2X0.50 0.50 25.90 19.80 1855
01 IQ 09 EGPF 1X4X0.88 0.88 12.70 14.60 575
01 IP 09 EGPF 1X2X0.88 0.88 11.70 13.40 500
02 IP 09 EGPF 2X2X0.88 0.88 11.80 13.20 485
03 IP 09 EGPF 3X2X0.88 0.88 16.80 18.50 759
07 IP 09 EGPF 7X2X0.88 0.88 20.80 22.90 1136
12 IP 09 EGPF 12X2X0.88 0.88 25.20 27.80 1605
19 IP 09 EGPF 19X2X0.88 0.88 30.00 33.10 2185
27 IP 09 EGPF 27X2X0.88 0.88 34.30 37.90 2798
03 IP 09 EGPF 3X2X0.88 0.88 16.20 18.60 825
07 IP 09 EGPF 7X2X0.88 0.88 19.90 22.90 1205
12 IP 09 EGPF 12X2X0.88 0.88 24.20 27.80 1740
19 IP 09 EGPF 19X2X0.88 0.88 28.80 33.00 2300
27 IP 09 EGPF 27X2X0.88 0.88 33.00 37.80 2910
01 IP 15 EGPF 1X2X1.50 1.50 12.70 14.10 546
03 IP 15 EGPF 3X2X1.50 1.50 18.00 19.80 887
07 IP 15 EGPF 7X2X1.50 1.50 22.60 24.90 1362
12 IP 15 EGPF 12X2X1.50 1.50 27.70 30.60 2039
19 IP 15 EGPF 19X2X1.50 1.50 33.20 36.60 2783
27 IP 15 EGPF 27X2X1.50 1.50 37.80 41.70 3556
01 IT 05 EGPF 01X3X0.50 0.50 10.90 12.20 421
07 IT 05 EGPF 7X3X0.50 0.50 18.50 20.40 959
12 IT 05 EGPF 12X3X0.50 0.50 22.30 24.60 1353
19 IT 05 EGPF 19X3X0.50 0.50 26.30 29.00 1838
01 IQ 09 EGPF 1X4X0.88 0.88 13.00 14.40 573
01 IT 09 EGPF 1X3X0.88 0.88 12.00 13.70 530
07 IT 09 EGPF 7X3X0.88 0.88 23.10 25.50 1396
12 IT 09 EGPF 12X3X0.88 0.88 28.20 31.10 2071
19 IT 09 EGPF 19X3X0.88 0.88 33.60 37.00 2821
01 IT 15 EGPF 1X3X1.50 1.50 13.10 14.60 594
07 IT 15 EGPF 7X3X1.50 1.50 25.40 28.00 1785
12 IT 15 EGPF 12X3X1.50 1.50 30.80 33.90 2526
19 IT 15 EGPF 19X3X1.50 1.50 37.00 40.80 3617
