  HomeProuductsBS 5308 Cables

 BS5308 Part 2 / Type 2

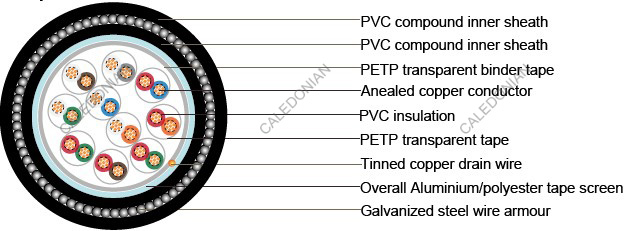

BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC

Application

The armoured versions (Part 2 Type 2) are generally used when the risk of mechanical damage is increased. The galvanised steel wire armour provides excellent protection. Generally used within industrial process anufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, typically in chemical or petrolchemical industry. The armored versions are generally use for outdoor installation for direct burial or installed in the duct and suitable for wet and damp reas.

Construction

Conductor Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 1.5mm² multistranded(Class 2) to BS6360
Insulation PVC (polyvinyl chloride), type TI1 to BS 6746
Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code Multicore cables: up to 40 cores yellow with black numbers, 41 -80 cores black with yellow numbers. Multipair cables:See technical information
Binder tape PETP transparent tape
Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Inner Sheath PVC (polyvinyl chloride), type TM 1 to BS 6746
Amour Galvanized steel wire armour
Outer sheath PVC Sheath, type TM 1 or type 6 to BS 6746
Sheath colour Black or blue

Mechanical and Electrical Properties

Operating temperature: -40˚C up to + 70˚C( fixed installation)
0˚C to +50˚C(during operation )
Minimum bending radius: 6 x overall diameter

Conductor Area Size mm 2 0.5 0.75 1.5
Conductor Stranding No. x mm 16 x 0.2 24 x 0.2 7 x 0.53
Conductor resistance max ohm/km 39.7 26.5 12.3
Insulation resistance min Mohm/km 25 25 25
Max. Mutual Capacitance:pair or adjacent cores pF/m 250 250 250
Capacitance between any core or screen max. pF/m 400 400 400
Max. L/R Ratio for adjacentcores(Inductance/Resistance) μH/ohm 25 25 40
Test voltage Core to core V 1000 1000 1000
Core to screen V 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500

Parameter

Multicore

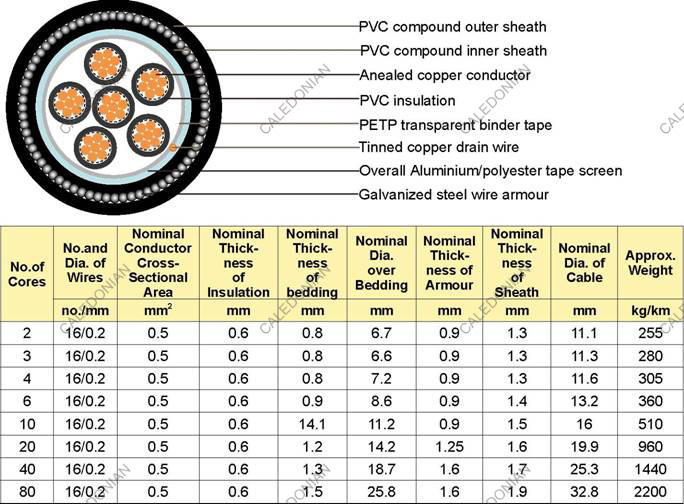

BS5308 Part 2 / Type 2 BS5308 Cable Part 2 Type2 PVC-OS-SWA-PVC

No.of Cores No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath
no./mm mm2 mm mm mm mm mm
2 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3
3 24/0.2 0.75 0.6 0.8 7.2 0.9 1.3
4 24/0.2 0.75 0.6 0.8 7.8 0.9 1.3
6 24/0.2 0.75 0.6 0.9 9.4 0.9 1.4
10 24/0.2 0.75 0.6 1.1 12.2 0.9 1.5
20 24/0.2 0.75 0.6 1.2 15.6 1.25 1.6
40 24/0.2 0.75 0.6 1.3 20.6 1.6 1.7
80 24/0.2 0.75 0.6 1.5 28.5 1.6 1.9
2 7/0.53 1.5 0.6 0.8 8 0.9 1.4
3 7/0.53 1.5 0.6 0.9 8.2 0.9 1.4
4 7/0.53 1.5 0.6 0.9 9 0.9 1.4
6 7/0.53 1.5 0.6 1.1 11 0.9 1.4
10 7/0.53 1.5 0.6 1.2 14 1.25 1.6
20 7/0.53 1.5 0.6 1.3 17.9 1.6 1.7
40 7/0.53 1.5 0.6 1.5 24 1.6 1.9
80 7/0.53 1.5 0.6 1.7 32.9 2 2.1

Multipair

No.of pairs No.and Dia. of Wires Nominal Conductor Cross-Sectional Area Nominal Thickness of Insulation Nominal Thickness of bedding Nominal Dia. over Bedding Nominal Thickness of Armour Nominal Thickness of Sheath
no./mm mm2 mm mm mm mm mm
1 16/0.2 0.5 0.6 0.8 6.2 0.9 1.3
2 16/0.2 0.5 0.6 0.8 7.1 0.9 1.3
5 16/0.2 0.5 0.6 1.1 12.4 0.9 1.5
10 16/0.2 0.5 0.6 1.2 16.5 1.25 1.6
15 16/0.2 0.5 0.6 1.3 19.2 1.6 1.7
20 16/0.2 0.5 0.6 1.3 21.7 1.6 1.8
30 16/0.2 0.5 0.6 1.5 26.4 1.6 1.9
50 16/0.2 0.5 0.6 1.7 33.4 2 2.1
1 24/0.2 0.75 0.6 0.8 6.7 0.9 1.3
2 24/0.2 0.75 0.6 0.8 7.7 0.9 1.4
5 24/0.2 0.75 0.6 1.2 13.8 1.25 1.5
10 24/0.2 0.75 0.6 1.3 18.4 1.6 1.7
15 24/0.2 0.75 0.6 1.3 21.1 1.6 1.8
20 24/0.2 0.75 0.6 1.5 24.4 1.6 1.8
30 24/0.2 0.75 0.6 1.7 29.6 2 2
50 24/0.2 0.75 0.6 2 37.4 2.5 2.3
1 7/0.53 1.5 0.6 0.8 7.5 0.9 1.4
2 7/0.53 1.5 0.6 0.9 8.8 0.9 1.4
5 7/0.53 1.5 0.6 1.2 15.6 1.25 1.6
10 7/0.53 1.5 0.6 1.3 20.9 1.6 1.8
15 7/0.53 1.5 0.6 1.5 24.6 1.6 1.9
20 7/0.53 1.5 0.6 1.5 27.8 1.6 2
30 7/0.53 1.5 0.6 1.7 33.7 2 2.1
50 7/0.53 1.5 0.6 2 43 2.5 2.4
