 BS5308 Part 1 / Type 1 (unarmoured cables)
BS5308 Cable Part 1 Type1 XLPE-OS-LSOH

Application

The unarmoured LSOH versions (Part 1 Type 1) are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSOH sheath can reduce toxic smoke and fume emission.

Construction

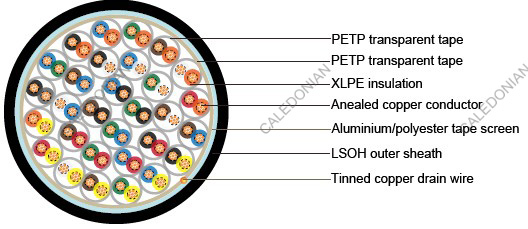

BS5308 Cable Part 1 Type1 XLPE-OS-LSOH

Conductor Annealed copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
Insulation XLPE (Cross Linked Polyethylene), or PE (optional)
Pairing Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Colour code See technical information
Binder tape PETP transparent tape
Collective screen Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Outer sheath LSOH(Low Smoke Zero Halogen) sheath Flame retardant to IEC60332-3-22 Fire resistant to IEC60331 Halogen free to IEC60754-1 Low smoke emission to IEC61034-1-2
Sheath colour Black or blue

Mechanical and Electrical Properties

Operating temperature: -20˚C up to + 90˚C( fixed installation) 0˚C to +50˚C(during operation)
Minimum bending radius: 5 x overall diameter

Conductor Area Size mm 2 0.5 0.5 0.75 1.0 1.5
Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
Insulation resistance min Gohm/km 5 5 5 5 5
Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
Max. Mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two-pairs) pF/m 115 115 115 115 115
Max. Mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75 75
Max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 25 40

Test voltage

Core to core V 1000 1000 1000 1000 1000
Core to screen V 1000 1000 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500 300/500 300/500

Number of Pairs

Number and Diameter of Wires Nominal Conductor Cross-Sectional Area Nominal Radial Thickness of Insulation Nominal Thickness of Sheath
no./mm mm2 mm mm
2 16/0.20 0.5 0.6 0.8
5 16/0.20 0.5 0.6 1.1
10 16/0.20 0.5 0.6 1.2
15 16/0.20 0.5 0.6 1.3
20 16/0.20 0.5 0.6 1.3
30 16/0.20 0.5 0.6 1.5
50 16/0.20 0.5 0.6 1.7
1 24/0.2 0.75 0.6 0.8
2 24/0.2 0.75 0.6 0.9
5 24/0.2 0.75 0.6 1.2
10 24/0.2 0.75 0.6 1.3
15 24/0.2 0.75 0.6 1.5
20 24/0.2 0.75 0.6 1.5
30 24/0.2 0.75 0.6 1.7
50 24/0.2 0.75 0.6 2
1 1/1.13 1 0.6 0.8
2 1/1.13 1 0.6 0.8
5 1/1.13 1 0.6 1.2
10 1/1.13 1 0.6 1.2
15 1/1.13 1 0.6 1.3
20 1/1.13 1 0.6 1.5
30 1/1.13 1 0.6 1.5
50 1/1.13 1 0.6 2
1 7/0.53 1.5 0.6 0.8
2 7/0.53 1.5 0.6 0.9
5 7/0.53 1.5 0.6 1.2
10 7/0.53 1.5 0.6 1.3
15 7/0.53 1.5 0.6 1.5
20 7/0.53 1.5 0.6 1.5
30 7/0.53 1.5 0.6 1.7
50 7/0.53 1.5 0.6 2
