600/1000V,PVC Insulated Cables according to IEC 60502-1 Four core(unarmoured)
Application
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

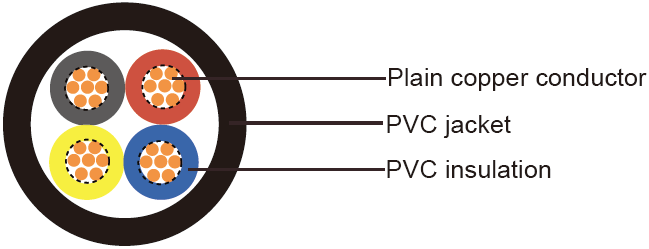

Construction
Conductors
The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228.
Insulation
PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1.
Colour Code
Colour Code (1) :
- 4Cores:?Red, Yellow, Blue, Black
- Colour Code (2) :
- 4Cores:?Blue, Brown, Black, Grey
- Other colours can be manufactured upon request.
Outer Sheath
Outer sheath shall be of extruded PVC Type ST1/ST2 as per IEC 60502-1, Polyethylene type ST3/ST7, Halogen free compound ST8, Polychloroprene, chlorosulfonated polyethylene or similar polymers, type SE1 are also available on request.
Fire Performance of Cable Sheaths
Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, Halogen Free material comply to IEC60754-1/2 and IEC 60684-2.
Parameters
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
---|---|---|---|---|
mm2 | mm | mm | mm | mm |
4x1.5 | 1.4 | 0.8 | 1.8 | 10.8 |
4x2.5 | 1.8 | 0.8 | 1.8 | 11.8 |
4x4 | 2.3 | 1 | 1.8 | 14 |
4x6 | 2.8 | 1 | 1.8 | 15.2 |
4x10 | 3.6 | 1 | 1.8 | 17.1 |
4x16 | 4.5 | 1 | 1.8 | 19.3 |
4x25 | 5.6 | 1.2 | 1.8 | 22.9 |
4x35 | 6.7 | 1.2 | 1.8 | 25.6 |
4x50 | 8 | 1.4 | 1.9 | 29.9 |
4x70 | 9.4 | 1.4 | 2 | 33.5 |
4x95 | 11 | 1.6 | 2.2 | 38.7 |
4x120 | 12.4 | 1.6 | 2.3 | 42.3 |
4x150 | 13.8 | 1.8 | 2.5 | 46.9 |
4x185 | 15.3 | 2 | 2.6 | 51.9 |
4x240 | 17.5 | 2.2 | 2.9 | 58.6 |
4x300 | 19.5 | 2.4 | 3.1 | 64.8 |
4x400 | 22.6 | 2.6 | 3.3 | 73.8 |
