Mineral Insulated Heating Cable,single core up to 700 °C

Mineral Insulated Heating Cable,single core up to 700 °C

Application

Moisture proof applications at high outputs and temperatures
High-temperature sistuations
Can be immersed in fluids
Chemical & petrochemical industries
Machinery and plant construction
Molten Salt Applications
Vacuum technology
Heat tracing on piping
Heat tracing on vessels

Voltage Rating

400V

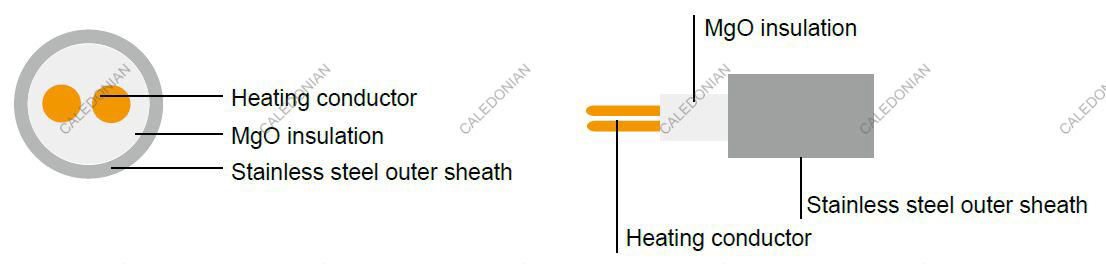

Construction

Conductors: Solid alloy or copper conductor.
Insulation: Magnesium Oxide (MgO).
Outer sheath: Stainless Steel 1.4541 (AISI 321).

Mechanical and Thermal Properties

Maximum Operating temperature: 700℃
Bending radius: 8×OD
Nominal output: 250 W/m
Cold lead, length: 2 x 0.50 m
Cold lead, cross section: 1.50 mm²

Cable Parameter

Overall Diameter mm Resistance  at 20 °C ohms/km Temperature coefficient x 10¯³/K
3.20 36000 0.09
4.00 24600 0.09
3.80 19680 0.09
4.40 13120 0.09
5.10 9840 0.09
5.00 4600 0.09
5.30 4600 0.09
4.00 3200 0.04
5.00 2460 0.04
4.70 1600 0.04
4.40 1000 0.5
5.10 750 0.5
6.70 330 0.5
