Fluoropolymer-insulated Heating Cable up to 260 °C with Protective Braid Cu/Ni

Fluoropolymer-insulated Heating Cable up to 260 °C with Protective Braid Cu/Ni

Application

Vessels, piping, valves
Small components
Industrial areas
Rotor blades
Marble plates

Standard

DIN VDE 0253

Voltage Rating

750V

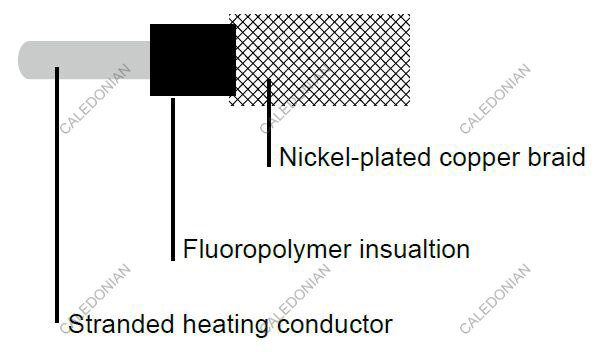

Construction

Heating conductor.
Insulation: Fluoropolymer.
Protective: Nickel-plated copper braid.

Mechanical and Thermal Properties

Maximum operating temperature: 260℃
Minimum installation temperature: -60℃
Minimum bending radius: 2.5xOD
Maximum output: 30 W/m
Nominal resistance of heating conductor: 8000 Ω/km

Cable Parameter

Nominal resistance Ω/km APPROX. outer diameter
mm		 7APPROX. weight g/m Temperature coefficient x 10¯³/K
1.95 (Cu 10mm²) 7.11 157.0 4.3
2.90 (Cu 6mm²) 5.99 104.9 4.3
4.40 (Cu 4mm²) 4.73 69.8 4.3
7.20 (Cu 2.5mm²) 3.89 48.3 4.3
10.0 3.62 40.6 4.3
11.7 (Cu 1.5mm²) 3.53 37.6 4.3
15.0 3.20 33.6 4.3
25.0 3.15 31.1 3.0
31.5 3.55 39.6 1.6
50.0 3.15 31.3 1.6
65.0 3.04 28.6 1.6
80.0 3.32 34.5 0.9
100.0 3.11 31.0 0.9
157.0 3.10 31.2 0.45
180.0 2.84 25.8 0.45
200.0 2.98 28.2 0.45
260.0 2.87 26.3 0.45
280.0 2.76 24.3 0.38
328.0 3.13 30.6 0.18
360.0 2.71 23.7 0.45
430.0 2.96 27.6 0.18
480.0 2.94 26.8 0.18
600.0 2.80 24.9 0.18
800.0 2.69 23.2 0.18
1000.0 2.81 24.9 0.04
1470.0 2.64 22.6 0.04
1750.0 2.66 22.3 0.04
1900.0 2.84 25.6 0.40
2900.0 2.68 23.1 0.40
4000.0 2.61 21.9 0.40
4700.0 2.55 21.6 0.15
6000.0 2.49 20.6 0.20
7000.0 2.43 19.9 0.15
8000.0 2.41 19.7 0.15
