Self-regulating Heating Cable Type ELSR-N up to 80°C

Self-regulating Heating Cable Type ELSR-N up to 80°C

Application

Frost protection
Heat tracing on level indicators
Chemical & petrochemical industries
Tank bottom heating of LNG storage tanks
Pipe heat tracing
Vessels and tanks
Automotive
Food processing industry

Standard

EN 62395-1

Voltage Rating

230V

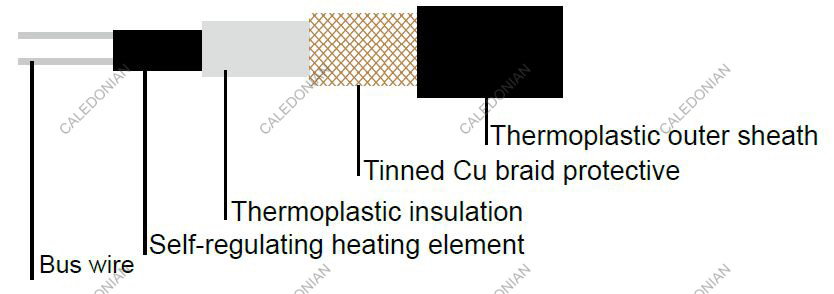

Construction

Bus wire: Nickel plated copper.
Self-regulating heating element
Insulation: Thermoplastic.
Protective: Tinned Cu braid.
Outer sheath: Thermoplastic or fluoropolymer.

Mechanical and Thermal Properties

Maximum maintenance temperature: 65℃
Maximum exposure temperature: 85℃
Minimum installation temperature: -51℃
Minimum bending radius: 25 mm

Cable Parameter

APPROX. Dimension mm Nominal output at 10℃ W/m APPROX. Weigh g/m
13.6×5.5 10 91
14.1×5.8 10 108
13.8×5.6 10 108
13.6×5.5 20 91
14.1×5.8 20 108
13.8×5.6 20 108
13.6×5.5 30 91
14.1×5.8 30 108
13.8×5.6 30 108
13.6×5.5 40 91
14.1×5.8 40 108
13.8×5.6 40 108
