Type ELSR-M-AF/BF up to 65°C
Application
Internal trace heating for pipes and hoses
Voltage Rating
230V

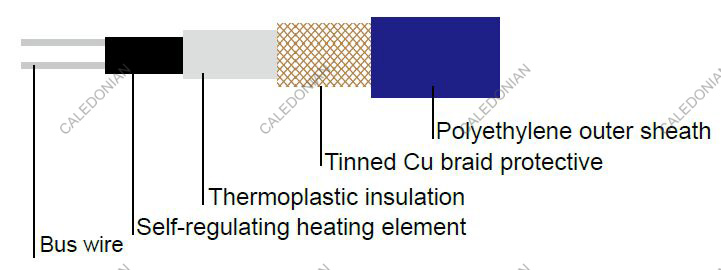

Construction
Bus wire: Nickel plated copper.
Self-regulating heating element
Insulation: Thermoplastic.
Protective: Tinned Cu braid.
Outer sheath: Polyethylene.
Mechanical and Thermal Properties
Maximum maintenance temperature: 65℃
Maximum exposure temperature: 65℃
Minimum installation temperature: -45℃
Minimum bending radius: 25 mm
Cable Parameter
| APPROX. Dimension mm | Nominal output at 10℃ W/m | APPROX. Weigh g/m |
|---|---|---|
| 7.5×4.9 | 10 | 62 |
| 7.0×4.6 | 10 | 53 |
