Mineral Insulated Heating Cable,single core up to 700 °C

Mineral Insulated Heating Cable,single core up to 700 °C

Application

Moisture proof applications at high outputs and temperatures
High-temperature sistuations
Can be immersed in fluids
Chemical & petrochemical industries
Machinery and plant construction
Molten Salt Applications
Vacuum technology
Heat tracing on piping
Heat tracing on vessels

Voltage Rating

500V

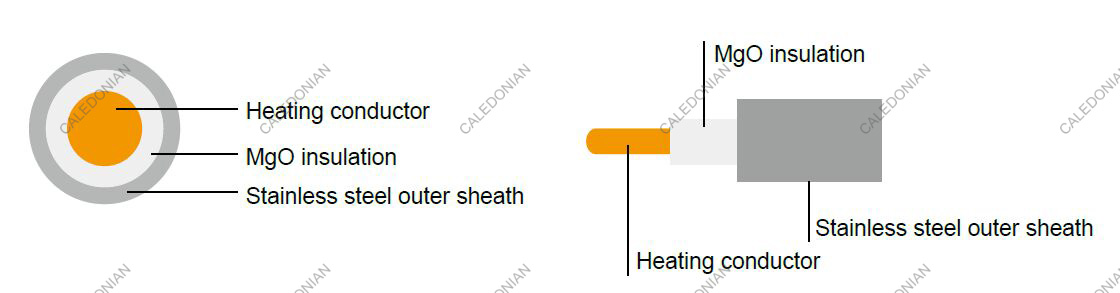

Construction

Conductors: Solid alloy or copper conductor.
Insulation: Magnesium Oxide (MgO).
Outer sheath: Stainless Steel 1.4541 (AISI 321).

Mechanical and Thermal Properties

Maximum Operating temperature: 700℃
Maximum continuous exposure temperature: 600℃
Minimum installation temperature: -60℃
Bending radius: 5×OD
Nominal output: 250 W/m
Cold lead, length: 2 x 0.50 m

Cable Parameter

Overall Diameter mm Resistance  at 20 °C ohms/km Temperature coefficient x 10¯³/K
3.20 10000 0.09
3.20 6300 0.09
3.20 4000 0.09
3.40 2500 0.09
3.60 1600 0.09
3.90 1000 0.09
4.30 630 0.09
4.70 400 0.09
5.30 250 0.09
6.50 160 0.09
