Flame Retardant RS485 Databus Cables
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.STANDARDS
Basic design to EIA/TIA 485
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
60V

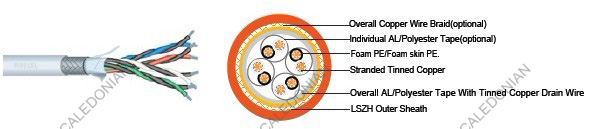

CABLE CONSTRUCTION
Multipair RS 485 Overall Screened Databus CableConductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall screen: Aluminum/polyester tape with tinned copper drain wire.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZHcompound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Multipair RS 485 Overall Double Screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall screen: Aluminium/polyester tape+copper wire braid.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Multipair RS 485 Individual & Overall screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Individual Screen: Individual aluminium/polyester tape.
Overall Screen: Copper wire braid.
outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Multipair RS 485 Overall Screened Databus Cable
Conductors: tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Foam PE or foam skin PE.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Overall Screen: Copper wire braid.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -20°C - +90°CTemperature range during installation (mobile state): -5°C - +60°C
Minimum bending radius: 8 x Overall
Electrical Properties
Dielectric test | 1000 V r.m.s. for 5’ (core-core) |
---|---|
1000 V r.m.s. for 5’ (core-screen) | |
Impedance | 120Ω |
capacitance | 45 nF/km conductor to conductor |
90 nF/km conductor to shield |
CONSTRUCTION PARAMETERS
Multipair RS 485 Overall Screened Databus Cable
RE-02Y(St)H / RE-02YS(St)H
No.of pair x | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|---|---|
mm2 | No/mm | mm | mm | mm | kg/km | |
1 | 0.22 | 7/0.2 | 0.55 | 0.40 | 4.0 | 21 |
2 | 0.22 | 7/0.2 | 0.55 | 0.40 | 7.1 | 42 |
4 | 0.22 | 7/0.2 | 0.55 | 0.40 | 8.3 | 68 |
1 | 0.50 | 16/0.2 | 0.55 | 0.40 | 4.6 | 32 |
2 | 0.50 | 16/0.2 | 0.55 | 0.40 | 8.2 | 68 |
4 | 0.50 | 16/0.2 | 0.55 | 0.40 | 9.8 | 115 |
1 | 0.75 | 24/0.2 | 0.55 | 0.40 | 5.1 | 40 |
2 | 0.75 | 24/0.2 | 0.55 | 0.40 | 9.1 | 84 |
4 | 0.75 | 24/0.2 | 0.55 | 0.40 | 10.9 | 144 |
1 | 1.00 | 30/0.2 | 0.55 | 0.40 | 5.2 | 49 |
2 | 1.00 | 30/0.2 | 0.55 | 0.40 | 9.5 | 105 |
4 | 1.00 | 30/0.2 | 0.55 | 0.40 | 11.2 | 182 |
Multipair RS 485 Overall Double Screened Databus Cable
RE-02Y(St)CH / RE-02YS(St)CH
No.of pair x | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|---|---|
mm2 | No/mm | mm | mm | mm | kg/km | |
1 | 0.22 | 7/0.2 | 0.55 | 0.40 | 4.5 | 34 |
2 | 0.22 | 7/0.2 | 0.55 | 0.40 | 7.5 | 67 |
4 | 0.22 | 7/0.2 | 0.55 | 0.40 | 8.8 | 97 |
1 | 0.50 | 16/0.2 | 0.55 | 0.40 | 5.1 | 48 |
2 | 0.50 | 16/0.2 | 0.55 | 0.40 | 8.7 | 97 |
4 | 0.50 | 16/0.2 | 0.55 | 0.40 | 10.3 | 150 |
1 | 0.75 | 24/0.2 | 0.55 | 0.40 | 5.6 | 57 |
2 | 0.75 | 24/0.2 | 0.55 | 0.40 | 9.7 | 116 |
4 | 0.75 | 24/0.2 | 0.55 | 0.40 | 11.4 | 182 |
1 | 1.00 | 30/0.2 | 0.55 | 0.40 | 5.7 | 67 |
2 | 1.00 | 30/0.2 | 0.55 | 0.40 | 10.0 | 138 |
4 | 1.00 | 30/0.2 | 0.55 | 0.40 | 11.8 | 222 |
Multipair RS 485 Individual & Overall screened Databus Cable
RE-02Y(St)H pimf / RE-02YS(St)H pimf
No.of pair x | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|---|---|
mm2 | No/mm | mm | mm | mm | kg/km | |
1 | 0.22 | 7/0.2 | 0.55 | 0.40 | 4.4 | 35 |
2 | 0.22 | 7/0.2 | 0.55 | 0.40 | 7.5 | 69 |
4 | 0.22 | 7/0.2 | 0.55 | 0.40 | 8.8 | 106 |
1 | 0.50 | 16/0.2 | 0.55 | 0.40 | 5.0 | 49 |
2 | 0.50 | 16/0.2 | 0.55 | 0.40 | 8.7 | 100 |
4 | 0.50 | 16/0.2 | 0.55 | 0.40 | 10.3 | 159 |
1 | 0.75 | 24/0.2 | 0.55 | 0.40 | 5.5 | 58 |
2 | 0.75 | 24/0.2 | 0.55 | 0.40 | 9.7 | 119 |
4 | 0.75 | 24/0.2 | 0.55 | 0.40 | 11.2 | 174 |
1 | 1.00 | 30/0.2 | 0.55 | 0.40 | 5.6 | 68 |
2 | 1.00 | 30/0.2 | 0.55 | 0.40 | 10.0 | 142 |
4 | 1.00 | 30/0.2 | 0.55 | 0.40 | 11.8 | 234 |
Multipair RS 485 Overall Screened Databus Cable
RE-02YCH / RE-02YSCH
No.of pair x | Nominal Cross Sectional Area | No./Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|---|---|
mm2 | No/mm | mm | mm | mm | kg/km | |
1 | 0.22 | 7/0.2 | 0.55 | 0.40 | 4.3 | 31 |
2 | 0.22 | 7/0.2 | 0.55 | 0.40 | 7.3 | 61 |
4 | 0.22 | 7/0.2 | 0.55 | 0.40 | 8.5 | 91 |
1 | 0.50 | 16/0.2 | 0.55 | 0.40 | 4.9 | 44 |
2 | 0.50 | 16/0.2 | 0.55 | 0.40 | 8.5 | 91 |
4 | 0.50 | 16/0.2 | 0.55 | 0.40 | 10.0 | 142 |
1 | 0.75 | 24/0.2 | 0.55 | 0.40 | 5.4 | 53 |
2 | 0.75 | 24/0.2 | 0.55 | 0.40 | 9.5 | 109 |
4 | 0.75 | 24/0.2 | 0.55 | 0.40 | 11.2 | 174 |
1 | 1.00 | 30/0.2 | 0.55 | 0.40 | 5.5 | 63 |
2 | 1.00 | 30/0.2 | 0.55 | 0.40 | 9.8 | 131 |
4 | 1.00 | 30/0.2 | 0.55 | 0.40 | 11.5 | 213 |
