Flame Retardant RG6 Coaxial cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design to MIL-C-17
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

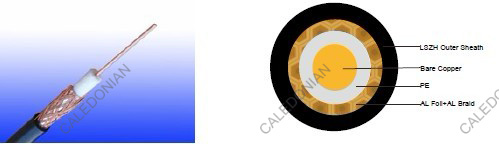

CABLE CONSTRUCTION
Conductors: Bare copper copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE compound.
Overall Screen: Aluminium foil(100%)+Aluminium braid (70%)
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter
Electrical Properties
ImPEDANCE |
75±5Ω |
CAPACITANCE |
54 NF/Km |
Velocity ratio(%) |
82 |
Insulation resistance |
>5000 mohm.Km |
Shield coverage |
AL FOIL(100%)+AL 70% |
DC resistance |
|
Inner conductor |
23.1 Ω/km |
Outer conductor |
31 Ω/km |
Att enuation
Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
50 |
5.0 |
1.5 |
100 |
6.4 |
1.96 |
200 |
9.2 |
2.8 |
500 |
14.5 |
4.4 |
600 |
15.9 |
4.9 |
800 |
17.7 |
5.4 |
1000 |
21.9 |
6.7 |
1350 |
24.9 |
7.6 |
1750 |
29.0 |
8.8 |
2050 |
33.1 |
10.1 |
2400 |
36.4 |
11.1 |
Return Loss
Frequency(MHz) |
Return Loss (dB) |
30-300 |
>28dB |
300-600 |
>24dB |
600-900 |
>22dB |
CONSTRUCTION PARAMETERS
Cable
Code |
Conductor
Diameter |
Nominal Insulation Diameter |
Nominal
Screen
No.x Diameter |
Nominal Overall Diameter |
Approx. Weight |
|
mm |
mm |
No. x mm |
mm |
kg/km |
RG6 A/U |
1.02 |
4.57 ± 0.20 |
96 x 0.12 |
7.00 |
81.6 |
