Flame Retardant Overall Screened Instrumentation Cables (multicore)
RE-2X(St)H
RE-2X(St)HSWAH
APPLICATION
The unarmoured LSZH versions (Part 1 Type 1&2) cables are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.STANDARDS
Basic design to BS 5308 Part1 Type1 & 2FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
300/500V

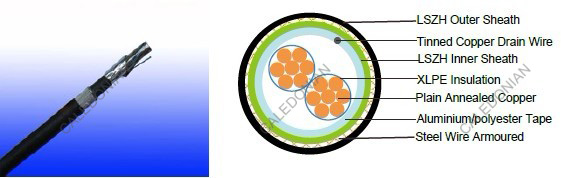

CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2 and 5 .Insulation: Extruded cross-linked XLPE compound.
Overall Screen: Aluminium/polyester tape with 0.5mm2 screen (7/0.3mm) tinned copper drain wire.
Inner Sheath(optional): LSZH compound
Armouring(optional): Galvanised steel wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE250°C in short-circuit for 5s max.
Minimum bending radius: 8 x Overall Diameter (unarmoured cable)
10 x Overall Diameter (armoured cable)
CONSTRUCTION PARAMETERS
Conductor | RE-2X(St)H | RE-2X(St)HSWAH | ||||||
---|---|---|---|---|---|---|---|---|
No. of Core X Cross Section | No./ Nominal Diameter of Strands | Nominal Insulation Thickness | Unarmoured | Armoured | ||||
Nominal Overall Diameter | Approx. Weight | Diameter Under Armour | Armour Wire Diameter | Nominal Overall Diameter | Approx. Weight | |||
mm2 | No./mm | mm | mm | kg/km | mm | mm | mm | kg/km |
2x0.5 | 16/0.20 | 0.6 | 7.0 | 50 | 7.0 | 0.90 | 11.4 | 237 |
3x0.5 | 16/0.20 | 0.6 | 7.3 | 59 | 7.3 | 0.90 | 11.7 | 254 |
4x0.5 | 16/0.20 | 0.6 | 7.9 | 69 | 7.9 | 0.90 | 12.3 | 278 |
6x0.5 | 16/0.20 | 0.6 | 9.3 | 94 | 9.3 | 0.90 | 13.9 | 345 |
10x0.5 | 16/0.20 | 0.6 | 11.9 | 147 | 11.9 | 0.90 | 16.7 | 470 |
20x0.5 | 16/0.20 | 0.6 | 14.9 | 253 | 14.9 | 1.25 | 20.6 | 759 |
40x0.5 | 16/0.20 | 0.6 | 20.1 | 444 | 20.1 | 1.60 | 26.7 | 1229 |
2x0.75 | 24/0.20 | 0.6 | 7.3 | 57 | 7.3 | 0.90 | 11.7 | 251 |
3x0.75 | 24/0.20 | 0.6 | 7.7 | 68 | 7.7 | 0.90 | 12.1 | 272 |
4x0.75 | 24/0.20 | 0.6 | 8.3 | 81 | 8.3 | 0.90 | 12.9 | 310 |
6x0.75 | 24/0.20 | 0.6 | 9.9 | 114 | 9.9 | 0.90 | 14.5 | 379 |
10x0.75 | 24/0.20 | 0.6 | 12.7 | 179 | 12.7 | 0.90 | 17.5 | 522 |
20x0.75 | 24/0.20 | 0.6 | 16.0 | 311 | 16.0 | 1.25 | 21.7 | 858 |
40x0.75 | 24/0.20 | 0.6 | 21.7 | 555 | 21.7 | 1.60 | 28.5 | 1420 |
2x1.5 | 7/0.53 | 0.6 | 8.3 | 78 | 8.3 | 0.90 | 12.9 | 300 |
3x1.5 | 7/0.53 | 0.6 | 8.9 | 103 | 8.9 | 0.90 | 13.5 | 345 |
4x1.5 | 7/0.53 | 0.6 | 9.7 | 125 | 9.7 | 0.90 | 14.3 | 377 |
6x1.5 | 7/0.53 | 0.6 | 11.7 | 163 | 11.7 | 0.90 | 16.3 | 490 |
10x1.5 | 7/0.53 | 0.6 | 14.7 | 285 | 14.7 | 1.25 | 20.4 | 773 |
20x1.5 | 7/0.53 | 0.6 | 18.7 | 504 | 18.7 | 1.60 | 25.3 | 1262 |
40x1.5 | 7/0.53 | 0.6 | 24.6 | 935 | 24.6 | 1.60 | 31.6 | 1968 |
