Flame Retardant Individual and Overall Screened Instrumentation Cables (multipair)

RE-2X(St)H Pimf

Flame Retardant Instrumentation Cables

APPLICATION

The unarmoured LSZH versions (Part 1 Type 1) cables are generally use for indoor installation and suitable for wet and damp areas. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services, Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume
emission.

STANDARDS

Basic design to BS 5308 Part1 Type1 & 2

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
minimum Smoke Emission IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

VOLTAGE RATING

300/500V

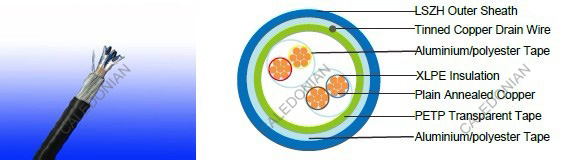

CABLE CONSTRUCTION

Conductor: Annealed or tinned copper, sizes: 0.5mm² and 0.75mm² mulitistranded(Class 5), 0.5 mm², 1.0 mm² solid(Class 1), 1.5mm² or 2.5mm², multistranded(Class 2) to BS6360
Insulation: XLPE (Cross Linked Polyethylene), or PE (optional)
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm
Individual Screen: Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire, 0.5mm²
Binder tape: PETP transparent tape
Overall Screen: Aluminium/polyester tape is applied over the laid up pairs metallic side down in contact with tinned copper drain wire, 0.5mm²
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE

Insulation Colour: See technical information
Outer sheath: Black or blue

Physical AND THERMAL PROPERTIES

Maximum Operating temperature: -20˚C - + 90˚C( fixed installation)
0˚C - +50˚C(during operation)
Minimum bending radius: 5 x Overall Diameter

Electrical Properties

Conductor Area Size mm 2 0.5 0.5 0.75 1.0 1.5
Conductor Stranding No. x mm 1 x 0.8 16 x 0.2 24 x 0.2 1 x 1.13 7 x 0.53
Conductor resistance max ohm/km 36.8 39.7 26.5 18.2 12.3
Insulation resistance min Gohm/km 5 5 5 5 5
Capacitance unbalance at 1 kHz(pair to pair screen) pF/250m 250
max. mutual Capacitance @ 1 kHz forNon OS or OS cables (except one-pair and two- pairs) pF/m 115 115 115 115 115
max. mutual Capacitance @ 1 kHz IS/OS cables (include 1 pair and 2 pair) pF/m 75 75 75 75 75
max. L/R Ratio for adjacent cores(Inductance/Resistance) μH/ohm 25 25 25 25 40
Test voltage Core to core V 1000 1000 1000 1000 1000
Core to screen V 1000 1000 1000 1000 1000
Rated voltage max V 300/500 300/500 300/500 300/500 300/500

CONSTRUCTION PARAMETERS

Number of Pairs No./ Nominal Diameter of Strands Nominal Conductor Cross- Section Area Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Approx. Weight
No./mm mm2 mm mm mm kg/km
2 1/0.8 0.5 0.5 0.9 9.7 95
5 1/0.8 0.5 0.5 1.2 13 180
10 1/0.8 0.5 0.5 1.2 16.9 310
15 1/0.8 0.5 0.5 1.3 19.7 440
20 1/0.8 0.5 0.5 1.3 22.3 560
30 1/0.8 0.5 0.5 1.5 27.1 820
50 1/0.8 0.5 0.5 2 35 1370
2 16/0.2 0.5 0.6 1.1 11.2 110
5 16/0.2 0.5 0.6 1.2 14.5 250
10 16/0.2 0.5 0.6 1.3 19.3 480
15 16/0.2 0.5 0.6 1.5 22.6 570
20 16/0.2 0.5 0.6 1.5 25.7 780
30 16/0.2 0.5 0.6 1.7 31 1020
50 16/0.2 0.5 0.6 2.2 39.9 1680
2 1/1.13 1 0.6 1.1 11.9 200
5 1/1.13 1 0.6 1.2 15.4 290
10 1/1.13 1 0.6 1.3 20.5 580
15 1/1.13 1 0.6 1.5 24.1 780
20 1/1.13 1 0.6 1.7 27.7 1010
30 1/1.13 1 0.6 2 33.7 1430
50 1/1.13 1 0.6 2.2 42.5 2360
2 7/0.53 1.5 0.6 1.2 13.6 250
5 7/0.53 1.5 0.6 1.3 17.7 460
10 7/0.53 1.5 0.6 1.5 23.9 760
15 7/0.53 1.5 0.6 1.7 28 1020
20 7/0.53 1.5 0.6 2 31.7 1350
30 7/0.53 1.5 0.6 2.2 38.6 1900
50 7/0.53 1.5 0.6 2.2 48.9 3060
