450/750V LSZH Insulated, Non-sheathed Power Cables (single core)
FTX100 07Z1-R (CU/LSZH 450/750V Class 2)
APPLICATION
This cables are mainly used in power stations, mass transit underground passenger systems,
airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
Basic design to BS 7211
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test) |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test) |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free |
IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
minimum Smoke Emission |
IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases |
NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.
VOLTAGE RATING
450/750V
CABLE CONSTRUCTION

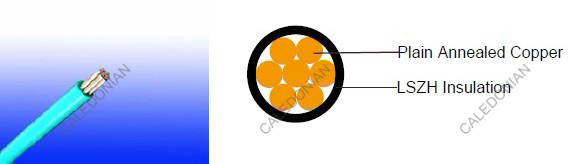

Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: LSZH compound
COLOUR CODE
Insulation colour as per bs7671
|
with earth conductor |
without earth conductor |
2Cores |
- |
Brown,Blue |
3Cores |
Yellow/Green,Brown,Blue |
Brown,Gray,Black |
4Cores |
Yellow/Green,Brown,Gray,Black |
Brown,Gray,Black,Blue |
5Cores |
Yellow/Green,Brown,Gray,Black,Blue |
Brown,Gray,Black,Blue,Black |
above 5 Cores |
Yellow/Green,Black Numbered |
Black Numbered |
sheath colour: Black
Physical AND THERMAL PROPERTIES
Temperature range during operation: Max.90°C for XLPE
250°C in short-circuit for 5s max.
Minimum bending radius: 6 x Overall Diameter
CONSTRUCTION PARAMETERS
Conductor |
FTX100 07Z1-R |
No. of Core X
Cross Section |
No./Nominal
Diameter of
Strands |
Nominal
Insulation
Thickness |
Nominal
Overall
Diameter |
Approx. Weight |
Noxmm2 |
No./mm |
mm |
mm |
kg/km |
1x1.5 |
7/0.53 |
0.7 |
3.1 |
23 |
1x2.5 |
7/0.67 |
0.8 |
3.7 |
35 |
1x4 |
7/0.85 |
0.8 |
4.3 |
52 |
1x6 |
7/1.04 |
0.8 |
4.8 |
73 |
1x10 |
7/1.35 |
1.0 |
6.2 |
120 |
1x16 |
7/1.70 |
1.0 |
7.2 |
180 |
1x25 |
7/2.24 |
1.2 |
9.0 |
285 |
1x35 |
19/1.53 |
1.2 |
10.2 |
375 |
1x50 |
19/1.78 |
1.4 |
12.0 |
510 |
1x70 |
19/2.14 |
1.4 |
14.0 |
720 |
1x95 |
19/2.52 |
1.6 |
16.0 |
995 |
1x120 |
37/2.03 |
1.6 |
18.0 |
1230 |
1x150 |
37/2.25 |
1.8 |
20.0 |
1520 |
1x185 |
37/2.52 |
2.0 |
22.0 |
1900 |
1x240 |
61/2.25 |
2.2 |
25.0 |
2480 |
1x300 |
61/2.52 |
2.4 |
28.0 |
3100 |
1x400 |
61.2.85 |
2.6 |
31.5 |
3950 |
1x500 |
61/3.20 |
2.8 |
35.0 |
4950 |
1x630 |
127/2.52 |
2.8 |
39.0 |
6360 |
Electrical PROPERTIES
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor cross- sectional area |
Reference method
4 (enclosed in conduit
in thermally insulating wall etc) |
Reference method 3 (enclosed in conduit on
a wall or in trunking etc) |
Reference method
1 (clipped direct) |
Reference method 11 (on a perforated cable tray, horizontal or vertical) |
Reference method 12 (free air) |
Horizontal flat spaced |
Vertical flat spaced |
Trefoil |
2 cables, single- phase a.c. or d.c. |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c |
3 or 4 cables,
3-phase a.c. |
2 cables, single- phase a.c. or d.c. flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c. or flat and touching |
3 or 4 cables,
3-phase a.c. flat and touching or trefoil |
2 cables, single- phase a.c. or d.c.
or 3 c ables three phase |
2
cables, single- phase a.c. or d.c.
or 3 cables three
phase |
3 cables, trefoil
3-phase a.c. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18 |
17 |
22 |
19 |
25 |
23 |
- |
- |
- |
- |
- |
2.5 |
24 |
23 |
30 |
26 |
34 |
31 |
- |
- |
- |
- |
- |
4 |
33 |
30 |
40 |
35 |
46 |
41 |
- |
- |
- |
- |
- |
6 |
43 |
39 |
51 |
45 |
59 |
54 |
- |
- |
- |
- |
- |
10 |
58 |
53 |
71 |
63 |
81 |
74 |
- |
- |
- |
- |
- |
16 |
76 |
70 |
95 |
85 |
109 |
99 |
- |
- |
- |
- |
- |
25 |
100 |
91 |
126 |
111 |
143 |
130 |
158 |
140 |
183 |
163 |
138 |
35 |
125 |
111 |
156 |
138 |
176 |
161 |
195 |
176 |
226 |
203 |
171 |
50 |
149 |
135 |
189 |
168 |
228 |
209 |
293 |
215 |
274 |
246 |
209 |
70 |
189 |
170 |
240 |
214 |
293 |
268 |
308 |
279 |
351 |
318 |
270 |
95 |
228 |
205 |
290 |
259 |
355 |
326 |
375 |
341 |
426 |
389 |
330 |
120 |
263 |
235 |
336 |
299 |
413 |
379 |
436 |
398 |
495 |
453 |
385 |
150 |
300 |
270 |
375 |
328 |
476 |
436 |
505 |
461 |
570 |
524 |
445 |
185 |
341 |
306 |
426 |
370 |
545 |
500 |
579 |
530 |
651 |
600 |
511 |
240 |
400 |
358 |
500 |
433 |
644 |
590 |
686 |
630 |
769 |
711 |
606 |
300 |
459 |
410 |
573 |
493 |
743 |
681 |
794 |
730 |
886 |
824 |
701 |
400 |
- |
- |
684 |
584 |
868 |
793 |
915 |
849 |
1065 |
994 |
820 |
500 |
- |
- |
783 |
666 |
990 |
904 |
1044 |
973 |
1228 |
1150 |
936 |
630 |
- |
- |
900 |
764 |
1130 |
1033 |
1191 |
1115 |
1423 |
1338 |
1069 |
Voltage Drop (Per Amp Per Meter)
Nominal
Cross
Section
Area |
2 cables
d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, 3-phase a.c. |
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall) |
Ref. Methods 1
and 11 (clipped
direct or on trays
touching) |
Ref. Methods 3
and 4 (enclosed
in conduit etc,
in or on a wall) |
Ref. Methods 1,
11 and 12 (in
trefoil) |
Ref. Methods 1 and
11(Flat and touching) |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
16 |
16 |
16 |
16 |
4 |
33 |
12 |
10 |
10 |
10 |
10 |
6 |
7.8 |
7.9 |
6.8 |
6.8 |
6.8 |
6.8 |
10 |
4.7 |
4.7 |
4.7 |
4 |
4 |
4 |
16 |
2.9 |
2.9 |
2.9 |
2.5 |
2.5 |
2.5 |
|
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
25 |
1.85 |
1.85 |
0.31 |
1.9 |
1.85 |
0.19 |
1.85 |
1.6 |
0.27 |
1.65 |
1.6 |
0.165 |
1.6 |
1.6 |
0.19 |
1.6 |
35 |
1.35 |
1.35 |
0.29 |
1.35 |
1.35 |
0.18 |
1.35 |
1.15 |
0.25 |
1.15 |
1.15 |
0.155 |
1.5 |
1.15 |
0.18 |
1.15 |
50 |
0.99 |
1 |
0.29 |
1.05 |
0.99 |
0.18 |
1 |
0.87 |
0.25 |
0.9 |
0.86 |
0.155 |
0.87 |
0.86 |
0.18 |
0.87 |
70 |
0.68 |
0.7 |
0.28 |
0.75 |
0.68 |
0.175 |
0.71 |
0.6 |
0.24 |
0.65 |
0.59 |
0.15 |
0.61 |
0.59 |
0.175 |
0.62 |
95 |
0.49 |
0.51 |
0.27 |
0.58 |
0.49 |
0.17 |
0.52 |
0.44 |
0.23 |
0.5 |
0.43 |
0.145 |
0.45 |
0.43 |
0.17 |
0.46 |
120 |
0.39 |
0.41 |
0.26 |
0.48 |
0.39 |
0.165 |
0.43 |
0.35 |
0.23 |
0.42 |
0.34 |
0.14 |
0.37 |
0.34 |
0.165 |
0.38 |
150 |
0.32 |
0.33 |
0.26 |
0.43 |
0.32 |
0.165 |
0.36 |
0.29 |
0.23 |
0.37 |
0.28 |
0.14 |
0.31 |
0.28 |
0.165 |
0.32 |
185 |
0.25 |
0.27 |
0.26 |
0.37 |
0.26 |
0.165 |
0.3 |
0.23 |
0.23 |
0.32 |
0.22 |
0.14 |
0.26 |
0.22 |
0.165 |
0.28 |
240 |
0.19 |
0.21 |
0.26 |
0.33 |
0.2 |
0.16 |
0.25 |
0.185 |
0.22 |
0.29 |
0.17 |
0.14 |
0.22 |
0.17 |
0.165 |
0.24 |
300 |
0.155 |
0.175 |
0.25 |
0.31 |
0.16 |
0.16 |
0.22 |
0.15 |
0.22 |
0.27 |
0.14 |
0.14 |
0.195 |
0.135 |
0.16 |
0.21 |
400 |
0.12 |
0.14 |
0.25 |
0.29 |
0.13 |
0.155 |
0.2 |
0.125 |
0.22 |
0.25 |
0.11 |
0.135 |
0.175 |
0.11 |
0.16 |
0.195 |
500 |
0.093 |
0.12 |
0.25 |
0.28 |
0.105 |
0.155 |
0.185 |
0.1 |
0.22 |
0.24 |
0.09 |
0.135 |
0.16 |
0.088 |
0.16 |
0.18 |
630 |
0.072 |
0.1 |
0.25 |
0.27 |
0.086 |
0.155 |
0.175 |
0.088 |
0.21 |
0.23 |
0.074 |
0.135 |
0.15 |
0.071 |
0.16 |
0.17 |
