Flame Retardant Power & Control Cables
300/500V PVC Insulated, PVC Sheathed Power Cables (2-5 Cores)

FGD200 05VV-K (CU/PVC/PVC 300/500V Class 5)

BS Code: 3182Y/3183Y/3184Y/3185Y

HAR Code: H05VV-F

Application

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.

Standards

  • Basic design to BS EN 50525-2-11(formerly BS 6500)

Fire Performance

Flame Retardance (Single Vertical Wire Test) EN 60332-1-2

Voltage Rating

300/500V

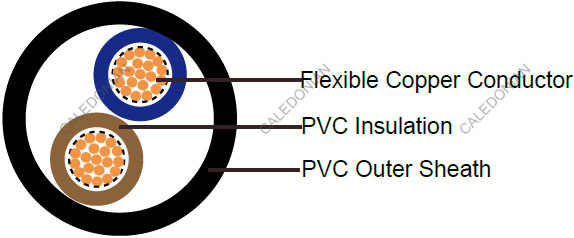

Cable Construction

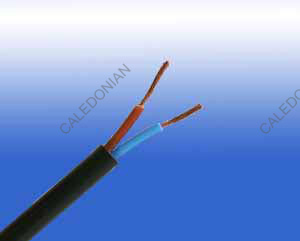

PVC Insulated, PVC Sheathed Power Cables PVC Sheathed Power Cables
Conductor Flexible copper wire according to EN 60228 class 5.
Insulation PVC type TI 2 according to EN 50363-3.
Filling For circular cable having two cores, the space between the cores shall be filled either by separate fillers or by the sheath filling the interstices. For circular cables with three, four or five cores, a centre filler may be used.
Outer Sheath PVC type TM 2 according to EN 50363-4-1. A tape may be applied around the core assembly before application of the sheath.
Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

Colour Code

Insulation Colour

Cables and cords with a green-and-yellow cores
No. of cores Colour of coresb
Protective Live
3 Cores Yellow/Green Blue Brown
4 Cores Yellow/Green - Brown Black Grey
4 Coresa Yellow/Green Blue Brown Black
5 Cores Yellow/Green Blue Brown Black Grey
a For certain applications only.
b In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour.
Cables and cords without a green-and-yellow cores
No. of cores Colour of coresb
2 Cores Blue Brown
3 Cores - Brown Black Grey
3 Coresa Blue Brown Black
4 Cores Blue Brown Black Grey
5 Cores Blue Brown Black Grey Black
a For certain applications only.
b In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour.

Sheath Colour: Black (other colors upon request)

Physical And Thermal Properties

Maximum temperature range during operation (PVC) 60°C
Maximum short circuit temperature (5 Seconds) 150°C
Minimum bending radius Up to 12mm²: 3 x overall diameter
  Above 12mm²: 4 x overall diameter

Construction Parameters

No. of Core X Cross Section FGD200 05VV-K
Nominal Insulation Thickness Nominal Sheath Thickness Maximum Overall Diameter Approx. Weight
Noxmm2 mm mm mm kg/km
2x0.75 0.6 0.8 7.2 57
2x1.0 0.6 0.8 7.5 65
2x1.5 0.7 0.8 8.6 87
2x2.5 0.8 1.0 10.6 134
2x4 0.8 1.1 12.1 174
3x0.75 0.6 0.8 7.6 68
3x1.0 0.6 0.8 8.0 79
3x1.5 0.7 0.9 9.4 111
3x2.5 0.8 1.1 11.4 169
3x4 0.8 1.2 13.1 233
4x0.75 0.6 0.8 8.3 84
4x1.0 0.6 0.9 9.0 101
4x1.5 0.7 1.0 10.5 142
4x2.5 0.8 1.1 12.5 211
4x4 0.8 1.2 14.3 292
5x0.75 0.6 0.9 9.3 106
5x1.0 0.6 0.9 9.8 123
5x1.5 0.7 1.1 11.6 176
5x2.5 0.8 1.2 13.9 262
5x4 0.8 1.4 16.1 369

Electrical Properties

Current-Carrying Capacities (Amp) according to BS7671:2008 table 4F3A

Conductor cross-sectional area Single-phase a.c. Three-phase a.c.
mm2 A A
0.5 3 3
0.75 6 6
1.0 10 10
1.5 16 16
2.5 25 20
4 32 25

Voltage Drop (Per Amp Per Meter) according to BS7671:2008 table 4F3B

Conductor cross-sectional area d.c. or single-phase a.c. Three-phase a.c.
mm2 mV/A/m mV/A/m
0.5 93 80
0.75 62 54
1.0 46 40
1.5 32 27
2.5 19 16
4 12 10
