Flame Retardant RG11 A/U CWB/SWB/SWA Armoured Coaxial Cables
APPLICATION
These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.STANDARDS
Basic design adapted to MIL-C-17FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.

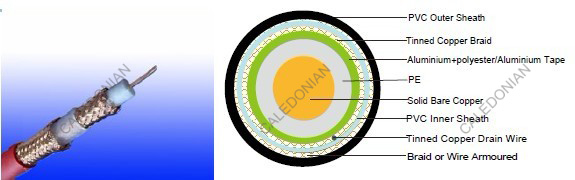

CABLE CONSTRUCTION
Conductors: 14AWG solid bare copper.Insulation: Low density PE compound.
Screen1: Aluminium/polyester or aluminium tape.
Screen2: Tinned copper braid.
Inner Sheath: Low smoke and halogen-free polyolefin, coloured black.
Armour:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +75°CMinimum bending radius: 15 x Overall Diameter
Electrical Properties
| AWG | 14 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 1.6 |
| Impedance | Ω | 75+/-5 |
| Nominal Attenuation@100MHz | dB/100m | 4.5 |
| Nominal Attenuation@270MHz | dB/100m | 7.6 |
| Nominal Attenuation@540MHz | dB/100m | 10.8 |
| Nominal Attenuation@750MHz | dB/100m | 12.8 |
| Nominal Attenuation@1000MHz | dB/100m | 14.8 |
| Capacitance | pF/m | 53.5 |
| Velocity of Propagation | % | 83 |
| Conductor DCR | Ω/km | 8.5 |
| Shield DCR | Ω/km | 12.1 |
| Inductance | μH/m | 0.32 |
| Time Delay | ns/m | 4 |
CONSTRUCTION PARAMETERS
| Cable Code | Nominal Inner Conductor Diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| mm | mm | mm | mm | kg/km | |
| FGD RG11 A/U CWB | 1.6 | 2.7 | 1.7 | 15.2 | 349 |
| FGD RG11 A/U SWB | 1.6 | 2.7 | 1.7 | 15.2 | 344 |
| FGD RG11 A/U SWA | 1.6 | 2.7 | 1.7 | 16.2 | 468 |
