Flame Retardant RG11 A/U Coaxial Cables
APPLICATION
The cables are designed for CCTV, security, smoke detection and evacuation monitoring
applications, where continued functionality is required during a fire situation. Due to the zero halogen
low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design adapted to MIL-C-17
FIRE PERFORMANCE
Flame Retardance (Single Vertical
Wire Test)** |
EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE
0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation
(Vertically-mounted bundled wires
& cable test)** |
EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.

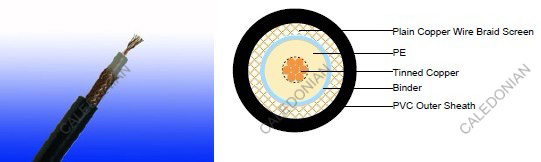

CABLE CONSTRUCTION
Conductors: Tinned copper wire, stranded according to IEC(EN) 60228 class 2.
Insulation: Low density PE.
Overall Screen: Plain copper wire braid
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance,
anti rodent and anti termite properties can be offered as option. Compliance to fire performance
standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the
PVC compound and the overall cable design. LSPVC can also be provided upon request.
Physical AND THERMAL PROPERTIES
Temperature Range During Operation (Fixed State): -30°C - +70°C
Temperature Range During Installation (Mobile State): -5°C - +60°C
Minimum Bending Radius: 8 X Overall Diameter
Electrical Properties
IMPEDANCE |
75±5Ω |
CAPACITANCE |
67 NF/KM |
Velocity ratio(%) |
66 |
Insulation resistance |
>2000 Mohm.Km |
Shield coverage |
97% |
DC resistance |
|
Inner conductor |
20.5 Ω/km |
Outer conductor |
4.5 Ω/km |
Attenuation
Frequency(MHz) |
Attenuation (dB/100 m) |
Attenuation (dB/100ft) |
50 |
4.2 |
1.28 |
100 |
6.2 |
1.89 |
200 |
9.3 |
2.84 |
400 |
13.8 |
4.21 |
500 |
15.5 |
4.73 |
600 |
17.1 |
5.21 |
860 |
20.1 |
6.13 |
1000 |
23.4 |
7.13 |
Return Loss
Frequency(MHz) |
Return Loss (dB) |
30-300 MHz |
>30dB |
300-600 MHz |
>27dB |
600-900 MHz |
>25dB |
CONSTRUCTION PARAMETERS
Cable
Code |
Conductor
Diameter |
Nominal Insulation Diameter |
Nominal
Screen
No.x Diameter |
Nominal Overall Diameter |
Approx. Weight |
|
mm |
mm |
No. x mm |
mm |
kg/km |
FGD RG11 A/U |
7 x 0.40 |
7.25 ± 0.18 |
192 x 0.18 |
10.3 ± 0.18 |
150 |
