600/1000V XLPE Insulated, PVC Sheathed, Armoured Flame Retardant Power Cables (Single Core)

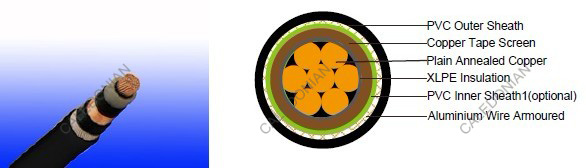

FGD300 1RCVMV-R (CU/XLPE/CUTO/PVC/AWA/PVC 600/1000V Class 2)
APPLICATION
This range of screened cables drastically reduce interferences from electrical noise, especially in Variable Speed Drive (VSD) applications and are manufactured with fixed conductors.STANDARDS
Basic design adapted to IEC 60502-1FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC
compound and the cable design.
VOLTAGE RATING
600/1000V
CABLE CONSTRUCTION
Conductor: Plain annealed copper wire, stranded according to IEC(EN) 60228 class 2.Insulation: Extruded cross-linked XLPE compound.
Overall Screen: Copper Tape
Inner sheath: PVC Compound
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
COLOUR CODE
Insulation Colour as per BS7671
With Earth Conductor | Without Earth Conductor | |
2Cores | - | Brown, Blue |
3Cores | Yellow/Green, Brown, Blue | Brown, Gray, Black |
4Cores | Yellow/Green, Brown, Gray, Black | Brown, Gray, Black, Blue |
5Cores | Yellow/Green, Brown, Gray, Black, Blue | Brown, Gray, Black, Blue, Black |
Above 5 Cores | Yellow/Green, Black Numbered | Black Numbered |
Sheath Colour: Black (other colors upon request)
Physical AND THERMAL PROPERTIES
Maximum conductor temperature: Max 90°C for XLPEMinimum bending radius: 12 x Overall Diameter (for 70mm2 to 1000mm2)
CONSTRUCTION PARAMETERS
Conductor | FGD300 1RCVMV-R | |||||||
---|---|---|---|---|---|---|---|---|
No. of Core X Cross Section | No./ Nominal Diameter of Strands | Nominal Insulation Thickness | Nominal Sheath Thickness | Diameter Under Screen | Diameter Over Inner Sheath | Armour Wire Diameter | Nominal Overall Diameter | Approx. Weight |
mm2 | No./mm | mm | mm | mm | mm | mm | mm | kg/km |
1x70 | 19/2.14 | 1.1 | 1.8 | 15.2 | 17.6 | 20.1 | 23.9 | 1400 |
1x95 | 19/2.52 | 1.1 | 1.8 | 17.1 | 19.5 | 22.0 | 25.8 | 1700 |
1x120 | 37/2.03 | 1.2 | 1.8 | 19.0 | 20.8 | 24.0 | 27.8 | 2000 |
1x150 | 37/2.25 | 1.4 | 1.8 | 21.0 | 22.8 | 26.0 | 29.8 | 2400 |
1x185 | 37/2.52 | 1.6 | 1.8 | 23.2 | 25.0 | 28.2 | 32.0 | 2800 |
1x240 | 61/2.25 | 1.7 | 1.9 | 26.1 | 27.9 | 31.1 | 35.1 | 3500 |
1x300 | 61/2.52 | 1.8 | 2.0 | 28.7 | 30.5 | 33.7 | 37.9 | 4200 |
1x400 | 61/2.85 | 2.0 | 2.1 | 32.5 | 34.3 | 38.3 | 42.7 | 5400 |
1x500 | 61/3.20 | 2.2 | 2.2 | 36.0 | 37.8 | 41.8 | 46.4 | 6500 |
1x630 | 127/2.52 | 2.4 | 2.3 | 40.4 | 42.2 | 46.2 | 51.0 | 8200 |
1x800 | 127/2.85 | 2.6 | 2.5 | 45.5 | 47.3 | 52.3 | 57.5 | 10400 |
1x1000 | 127/3.20 | 2.8 | 2.7 | 50.4 | 52.2 | 57.2 | 62.4 | 13000 |
Electrical Properties
Conductor Operating Temperature : 90°C
Ambient Temperature : 30°C
Current-Carrying Capacities (Amp)
Conductor cross- sectional area | Reference Method 1 (clipped direct) | Reference Method 11 (on a perforated horizontal cable tray or Reference Method 13 [free air] ) | Reference Method 12 (free air) | In single-way ducts | Laid direct in ground | ||||
---|---|---|---|---|---|---|---|---|---|
2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. | 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. | 3 cables 3-phase a.c. trefoil touching | 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. | 2 cables, single- phase a.c. or d.c. | 3 or 4 cables, 3-phase a.c. | |
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
mm2 | A | A | A | A | A | A | A | A | A |
70 | 303 | 277 | 322 | 293 | 285 | 310 | 280 | 340 | 290 |
95 | 367 | 333 | 389 | 352 | 346 | 365 | 330 | 405 | 345 |
120 | 425 | 383 | 449 | 405 | 402 | 410 | 370 | 460 | 389 |
150 | 488 | 437 | 516 | 462 | 463 | 445 | 405 | 510 | 435 |
185 | 557 | 496 | 587 | 524 | 529 | 485 | 440 | 580 | 490 |
240 | 656 | 579 | 689 | 612 | 625 | 550 | 500 | 670 | 560 |
300 | 755 | 662 | 792 | 700 | 720 | 610 | 550 | 750 | 630 |
400 | 853 | 717 | 899 | 767 | 815 | 640 | 580 | 830 | 700 |
500 | 962 | 791 | 1016 | 851 | 918 | 690 | 620 | 910 | 770 |
630 | 1082 | 861 | 1146 | 935 | 1027 | 750 | 670 | 1000 | 840 |
800 | 1170 | 904 | 1246 | 987 | 1119 | 828 | 735 | 1117 | 931 |
1000 | 1261 | 961 | 1345 | 1055 | 1214 | 919 | 811 | 1254 | 1038 |
Voltage Drop (Per Amp Per Meter)
Conductor crosssectional area | 2 cables d.c. | 2 cables singlephase a.c. | 3 or 4 cables three-phase a.c. | 2 cables singlephase a.c. | 3 or 4 cables, 3-phase a.c. touching | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Reference Method 1 & 11 (touching) | Reference Method 1, 11 & 12 (in trefoil touching) | Reference Method 1 & 11 (Flat touching) | In ducts | In ground | In ducts | In ground | ||||||||
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ||||||
mm2 | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | mV/A/m | ||||||
r | x | z | r | x | z | r | x | z | ||||||
70 | 0.67 | 0.68 | 0.20 | 0.71 | 0.59 | 0.17 | 0.62 | 0.6 | 0.25 | 0.65 | 0.80 | 0.70 | 0.70 | 0.61 |
95 | 0.49 | 0.51 | 0.195 | 0.55 | 0.44 | 0.17 | 0.47 | 0.46 | 0.24 | 0.52 | 0.65 | 0.53 | 0.56 | 0.46 |
120 | 0.39 | 0.41 | 0.190 | 0.45 | 0.35 | 0.165 | 0.39 | 0.38 | 0.24 | 0.44 | 0.55 | 0.43 | 0.48 | 0.37 |
150 | 0.31 | 0.33 | 0.185 | 0.38 | 0.29 | 0.160 | 0.33 | 0.31 | 0.23 | 0.39 | 0.50 | 0.37 | 0.43 | 0.32 |
185 | 0.25 | 0.27 | 0.185 | 0.33 | 0.23 | 0.160 | 0.28 | 0.26 | 0.23 | 0.34 | 0.45 | 0.31 | 0.39 | 0.27 |
240 | 0.195 | 0.21 | 0.180 | 0.28 | 0.18 | 0.155 | 0.24 | 0.21 | 0.22 | 0.30 | 0.40 | 0.26 | 0.35 | 0.23 |
300 | 0.155 | 0.17 | 0.175 | 0.25 | 0.145 | 0.150 | 0.21 | 0.17 | 0.22 | 0.28 | 0.37 | 0.24 | 0.32 | 0.21 |
400 | 0.115 | 0.145 | 0.170 | 0.22 | 0.125 | 0.150 | 0.195 | 0.160 | 0.21 | 0.27 | 0.35 | 0.21 | 0.30 | 0.19 |
500 | 0.093 | 0.125 | 0.170 | 0.21 | 0.105 | 0.145 | 0.180 | 0.145 | 0.20 | 0.25 | 0.33 | 0.20 | 0.28 | 0.18 |
630 | 0.073 | 0.105 | 0.165 | 0.195 | 0.092 | 0.145 | 0.170 | 0.135 | 0.195 | 0.24 | 0.30 | 0.19 | 0.26 | 0.17 |
800 | 0.056 | 0.090 | 0.160 | 0.190 | 0.086 | 0.140 | 0.165 | 0.130 | 0.180 | 0.23 | 0.28 | 0.18 | 0.24 | 0.16 |
1000 | 0.045 | 0.092 | 0.155 | 0.180 | 0.080 | 0.135 | 0.155 | 0.125 | 0.170 | 0.21 | 0.26 | 0.17 | 0.22 | 0.15 |
