Flame Retardant CAT6 CWB/SWB/SWA Armoured Data Cables
FGD-CAT6 U/UTP4P23
FGD-CAT6 F/UTP4P23
FGD-CAT6 SF/FTP4P23
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.STANDARDS
Basic design adapted to EN50173FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
60V

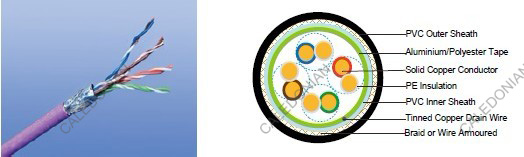

CABLE CONSTRUCTION
Conductors: 23AWG solid bare copper.Insulation: HDPE .
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armouring:
cwb: copper Wire Braid
swb: Steel Wire Braid
swa: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
Cat6 F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat6 SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.
Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°CMinimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
AWG | 23 | |
---|---|---|
Nominal Conductor Diameter | mm | 0.56/0.57/0.58 |
Maximum DC Resistant@20°C | Ω/100m | 9.38 |
Maximum DCR Unbalance | % | 3 |
Maximum Mutual Capacitance | pF/m | 5.8 |
Maximum Capacitance Unbalance | pF/100m | 30 |
Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
Maximum Propagation Delay Skew | ns/100m | 18 |
Transmission Properties
FREQ MHz | Maximum Attenuation dB/100m | Minimum NEXT dB | Minimum PSNEXT dB | Minimum ELFEXT dB/100m | Minimum PSELFEXT dB/100m | Minimum RL dB |
---|---|---|---|---|---|---|
0.772 | 1.8 | 76.0 | 74. | 70.0 | 67.0 | — |
1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |

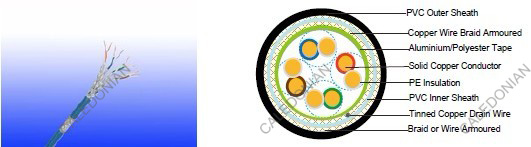

FGD Cat6 SF/UTP
CONSTRUCTION PARAMETERS
Cable Code | Construction No. of elements×No. of cores in element×Conductor diameter | Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Outer Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | kg/km | |
FGD-CAT6 U/UTP CWB | 4×2×0.56/0.57 | 0.2 | 0.6 | 1.0 | 7.88 | 115 |
FGD-CAT6 U/UTP SWB | 4×2×0.56/0.57 | 0.2 | 0.6 | 1.0 | 7.88 | 109 |
FGD-CAT6 U/UTP SWA | 4×2×0.56/0.57 | 0.2 | 0.6 | 1.0 | 8.88 | 189 |
FGD-CAT6 F/UTP CWB | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 8.48 | 126 |
FGD-CAT6 F/UTP SWB | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 8.48 | 132 |
FGD-CAT6 F/UTP SWA | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 9.48 | 213 |
FGD-CAT6 SF/UTP CWB | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 8.96 | 154 |
FGD-CAT6 SF/UTP SWB | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 8.96 | 148 |
FGD-CAT6 SF/UTP SWA | 4×2×0.57/0.58 | 0.2 | 0.6 | 1.0 | 9.96 | 242 |
