Flame Retardant CAT5e Data Cables
FGD-CAT5e U/UTP4P24
FGD-CAT5e f/UTP4P24
FGD-CAT5e sf/UTP4P24
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.STANDARDS
Basic design adapted to EN50173FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test)** | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)** | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Note: Asterisk ** denotes that the standard compliance is optional, depending on the oxygen index of the PVC compound and the cable design.
VOLTAGE RATING
60V

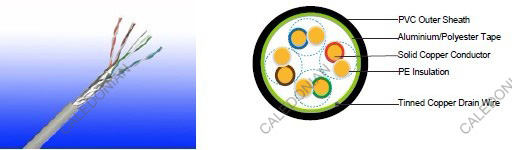

CABLE CONSTRUCTION
Conductors: 24AWG solid bare copper.Insulation: HDPE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic PVC compound. UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.
Cat5E F/UTP: These cables have collective shielding of aluminium/Polyester tape with drain wire.
Cat5E SF/UTP: These cables have double collective shieldings of aluminium/Polyester tape& copper wire braid.
COLOUR CODE
Insulation Colour: See technical information
Outer sheath: Black or blue
Physical AND THERMAL PROPERTIES
Temperature range: -30°C ~ +75°CMinimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameterr
Electrical Properties
AWG | 24 | |
---|---|---|
Nominal Conductor Diameter | mm | 0.5/0.51/0.53 |
Maximum DC Resistant@20°C | Ω/100m | 9.38 |
Maximum DCR Unbalance | % | 5 |
Maximum Mutual Capacitance | pF/m | 55.8 |
Maximum Capacitance Unbalance | pF/100m | 330 |
Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
Maximum Propagation Delay Skew | ns/100m | 45 |
Transmission Properties
FREQ MHz | Maximum Attenuation dB/100m | Minimum NEXT dB | Minimum PSNEXT dB | Minimum ELFEXT dB/100m | Minimum PSELFEXT dB/100m | Minimum RL dB |
---|---|---|---|---|---|---|
0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
CONSTRUCTION PARAMETERS
Cable Code | Conductor Diameter | Diameter Over Insulation | Pairs | Screen | Nominal Overall Diameter |
---|---|---|---|---|---|
mm | mm | mm | |||
FGD-Cat5E U/UTP | 0.5/0.51 | 0.91 | 4 | Nil | 5.1 |
FGD-Cat5E F/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen | 6.3 |
FGD-Cat5E SF/UTP | 0.53 | 1.00 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 |
