Fire Resistant Signal & Data Cable
Fire Resistant UTP CAT5 Data Cables
FFX-CAT5UTP4P24FR
APPLICATION
The Fire Resistant UTP CAT5 Data Cables are desgined for structure wiring, compatible with all known connection systems
according to EN 50173.
Based on the design for structured wiring (found in IEC 61156 and BS EN 50288), this cable brings
together high frequency data transmission and circuit integrity in four pair cable that will continue to
transmit data even when being directly attacked by fire.
STANDARDS
Basic design to EN 50173
VOLTAGE RATING
60V
FIRE PERFORMANCE
Circuit Integrity | IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
---|---|
System circuit integrity | DIN 4102-12, E30 depending on lay system |
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

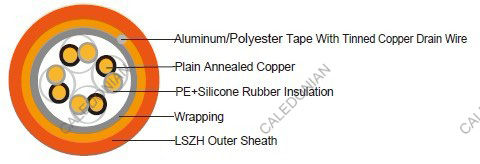

CABLE CONSTRUCTION
Conductors: Plain annealed copper wire, solid according to IEC(EN) 60228 class 1.
Insulation: PE wrapped with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Twisted Pairs: Insulated conductors are twisted into pairs with varying lay length to minimize
crosstalk.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize
crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layers.
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -5°C - +50°C
Temperature range during installation (mobile state): -20°C - +90°C
Minimum bending radius: 8 x Overall Diameter
Electrical Properties
Characteristic Impedance | 100 Ohm±15% |
---|---|
Nominal Velocity of Propagation (NVP) | 69% |
Max. Dc Resistance | 9.38 Ohm/100m |
Max. Resistance Unbalance | 5% |
Max. Mutual Capacitance: | 5.6 nF/100m |
Maximum Capacitance Unbalance | 330 pF/100m |
Max. Propagation Delay Skew | 30 ns/100m |
Max. Propagation Delay | 536 ns/100m@100 mhz |
Max. Pulling Load | 80N |
Transmission Properties
FREQ (MHz) | NEXT(dB/100m) Minimum Value/Typical Value/ Standard Value | IL (dB/100m) | SRL (dB/100m) Minimum Value/Typical Value/ Standard Value |
---|---|---|---|
1 | 64.0/71.0/62.0 | 2.0 | 24.5/26.0/23.0 |
4 | 55.0/62.0/53.0 | 4.0 | 24.5/26.0/23.0 |
8 | 49.5/57.0/48.0 | 5.7 | 24.5/26.0/23.0 |
10 | 49.0/56.0/47.0 | 6.4 | 24.5/26.0/23.0 |
16 | 44.9/52.0/44.0 | 8.2 | 24.5/26.0/23.0 |
20 | 42.5/48.0/42.0 | 9.2 | 24.5/26.0/23.0 |
25 | 42.0/48.0/41.0 | 10.3 | 24.5/26.0/23.0 |
31.25 | 40.6/48.0/39.0 | 11.6 | 22.5/24.0/21.0 |
62.5 | 36.1/43.0/35.0 | 16.9 | 19.5/22.0/18.0 |
100 | 34.0/40.0/32.0 | 21.8 | 17.5/20.0/16.0 |
CONSTRUCTION PARAMETERS
Cable Code | Conductor Diameter | Nominal Insulation Thickness | Nominal Overall Diameter |
---|---|---|---|
mm | mm | mm | |
FFX-CAT5UTP4P24FR | 0.5 | 0.25 | 5.3 |
