Fire Resistant Coaxial Cable
Fire resistant RG6 QUAD Coaxial cables
RG6 QUAD FR
APPLICATION
The Fire resistant RG6 QUAD Coaxial cables are designed for CCTV, security, smoke detection and evacuation monitoring applications, where continued functionality is required during a fire situation. Due to the zero halogen low smoke construction, this cable is ideal for use in public, commercial and industrial environments.
STANDARDS
Basic design to MIL-C-17
VOLTAGE RATING
60V
FIRE PERFORMANCE
Circuit Integrity | IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1) |
---|---|
System circuit integrity | DIN 4102-12, E30 depending on lay system |
Flame Retardance (Single Vertical Wire Test) | EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1* |
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) | EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4 |
Halogen Free | IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1* |
No Corrosive Gas Emission | IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2* |
Minimum Smoke Emission | IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2* |
No Toxic gases | NES 02-713; NF C 20-454 |
Note: Asterisk * denotes superseded standard.

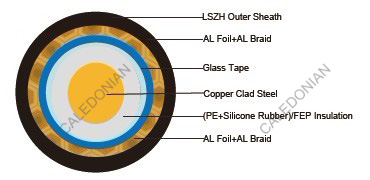

CABLE CONSTRUCTION
Conductors: Copper clad steel, solid according to IEC(EN) 60228 class 1.
Insulation: Foamed PE wrapped with fire resistant silicone rubber compound type EI2 as per BS
7655-1.1 or fluoropolymer(FEP) compound.
Binder: Glass tape
Overall Screen:
Screen1: Al-maylar Tape ≥25%
Screen2: Aluminium Braid
Screen3: Al-maylar Tape ≥25%
Screen4: Aluminium Braid
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH
compound type SW2-SW4 as per BS 7655-2.6 can be offered.)
Physical AND THERMAL PROPERTIES
Temperature range during operation (fixed state): -30°C - +70°C
Temperature range during installation (mobile state): -5ºC - +60ºC
Minimum bending radius: 8 x Overall Diameter
Electrical Properties
Impedance | 75±5Ω |
---|---|
Capacitance | 54 nF/km |
Velocity ratio(%) | 82 |
Insulation resistance | >5000 Mohm.Km |
Shield coverage | ≥60% |
Max.conductor resistance | 24.1 Ω/km |
Att enuation
Frequency(MHz) | Attenuation (dB/100 m) | Attenuation (dB/100ft) |
---|---|---|
50 | 4.8 | 1.5 |
100 | 6.7 | 2.0 |
200 | 9.3 | 2.8 |
500 | 15.0 | 4.6 |
600 | 16.9 | 5.1 |
800 | 19.4 | 5.9 |
1000 | 21.6 | 6.6 |
1350 | 24.2 | 7.4 |
1750 | 28.0 | 8.4 |
2150 | 31.5 | 9.6 |
2400 | 32.8 | 10.0 |
3000 | 37.9 | 11.5 |
Return Loss
Frequency(MHz) | Return Loss (dB) |
---|---|
30-300 | >28dB |
300-600 | >24dB |
600-900 | >22dB |
CONSTRUCTION PARAMETERS
Cable Code | Conductor Diameter | Nominal Insulation Diameter | Nominal Screen2 No.x Diameter | Nominal Screen4 No.x Diameter | Nominal Overall Diameter | Approx. Weight |
---|---|---|---|---|---|---|
mm | mm | No. x mm | No. x mm | mm | kg/km | |
RG6 QUAD FR | 1.02 | 4.60 ± 0.20 | 80 x 0.12 | 64 x 0.12 | 7.55 ± 0.20 | 92.4 |
