Fire Resistant Signal & Data Cable
Fire resistant FTP Cat3 Data Cables FFX-CAT3FTPXP22FR

APPLICATION

The Fire resistant FTP Cat3 Data Cables are desgined for structure wiring, compatible with all known connection systems according to EN 50173. Based on the design for structured wiring (found in IEC 61156 and BS EN 50288), this cable brings together high frequency data transmission and circuit integrity in a one pair, two pair and four pair cable that will continue to transmit data even when being directly attacked by fire.

STANDARDS

Basic design to EN 50173

VOLTAGE RATING

60V

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-23; BS 6387 CWZ; DIN VDE 0472-814(FE180); CEI 20-36/2-1; SS229-1; NBN C 30-004 (cat. F3); NF C32-070-2.3(CR1)
System circuit integrity	DIN 4102-12, E30 depending on lay system
Flame Retardance (Single Vertical Wire Test)	EN 60332-1-2; IEC 60332-1-2; BS EN 60332-1-2; VDE 0482-332-1 ; NBN C 30-004 (cat. F1); NF C32-070-2.1(C2); CEI 20-35/1-2; EN 50265-2-1*; DIN VDE 0482-265-2-1*
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	EN 60332-3-24 (cat. C); IEC 60332-3-24; BS EN 60332-3-24; VDE 0482-332-3; NBN C 30-004 (cat. F2); NF C32-070-2.2(C1); CEI 20-22/3-4; EN 50266-2-4*; DIN VDE 0482-266-2-4
Halogen Free	IEC 60754-1; EN 50267-2-1; DIN VDE 0482-267-2-1; CEI 20-37/2-1 ; BS 6425-1*
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2; DIN VDE 0482-267-2-2; CEI 20-37/2-2 ; BS 6425-2*
Minimum Smoke Emission	IEC 61034-1&2; EN 61034 -1&2; DIN VDE 0482-1034-1&2; CEI 20-37/3-1&2; EN 50268-1&2*; BS 7622-1&2*
No Toxic gases	NES 02-713; NF C 20-454

Note: Asterisk * denotes superseded standard.

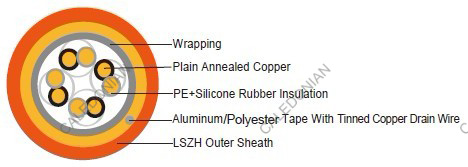

CABLE CONSTRUCTION

Conductors: Plain annealed copper wire, sized 0.64mm and solid according to IEC(EN) 60228 class 1.
Insulation: PE wrapping with fire resistant silicone rubber compound type EI2 as per BS 7655-1.1.
Cabling Elements: Insulated cores are twisted to form pairs with varying lay length to minimize crosstalk. Two-pair cable had four cores laid in quad formation.
Cabling: Pairs are cabled together in concentric layer.
Overall Screen: Aluminum/polyester tape with tinned copper drain wire
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered.)

COLOUR CODE

Sheath Colour: Red, white or black

Physical AND THERMAL PROPERTIES

Temperature range during operation (fixed state): -20°C - +90°C
Temperature range during installation (mobile state): -5°C - +50°C
Minimum bending radius: 8 x Overall Diameter

Electrical Properties

Characteristic Impedance	100 Ohm±15%
Nominal Velocity Of Propagation (NVP)	69%
Max. Dc Resistance	5.8 Ohm/100m
Max. Resistance Unbalance	5%
Max. Propagation Delay Skew	30 ns/100m
Max. Propagation Delay	536 ns/100m@100 mhz
Max. Pulling Load	80N



FREQ (MHz)	NEXT(dB/100m) Minmum Value/Typical Value/Standard Value	IL (dB/100m)	SRL(dB/100m) Minmum Value/Typical Value/Standard Value
1	43.0/48.0/41.0	2.6	13.0/16.0/12.0
4	34.0/38.0/32.0	5.6	13.0/16.0/12.0
8	29.0/33.0/26.0	8.5	13.0/16.0/12.0
10	28.0/33.0/26.0	9.8	13.0/16.0/12.0
16	25.0/30.0/23.0	13.1	11.0/14.0/10.0

CONSTRUCTION PARAMETERS

Cable Code	Nominal Insulation Thickness	Nominal Overall Diameter	Approx. Weight
	mm	mm	kg/km
FFX-CAT3FTP1P22FR	0.25	6.8	48
FFX-CAT3FTP2P22FR	0.25	8.1	97
FFX-CAT3FTP4P22FR	0.25	10.4	122
