600/1000V Mica+XLPE Insulated, LSZH Sheathed Power Cables to IEC 60502-1 (2-5 Cores & Multicore)

FFX400 1mRZ1-R (CU/MGT+XLPE/LSZH 600/1000V Class 2)

APPLICATION

The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings. This product type is CE approved.

STANDARDS

Basic design adapted from IEC 60502-1
Approvals:
CE Certification (GB 1067 5743 16)

FIRE PERFORMANCE

Circuit Integrity	IEC 60331-21; BS 6387; BS 8491
Flame Retardance (Single Vertical Wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

600/1000V

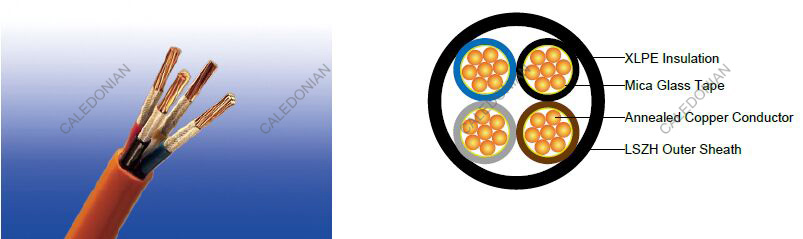

CABLE CONSTRUCTION

Conductor: The conductors shall be class 2 plain or metal-coated annealed copper in accordance with IEC 60228. Class 1 and class 5 conductor can be offered as option.
Fire Barrier: Mica glass tape.
Insulation: Thermosetting XLPE material and thickness shall be as per IEC 60502-1.
Outer Sheath: Thermoplastic halogen free compound ST8 as per IEC 60502-1.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour
2-core: Brown and blue.
3-core: Brown, black and grey.
4-core: Blue, brown, black and grey.
5-core: Green-and-yellow, blue, brown, black, grey.
Above 5 Cores: Black cores with white numerals.
Other colours can be offered upon request.
Sheath Colour: Black; other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation: 90°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius
circular copper conductors OD≤25mm: 4 × Overall Diameter
circular copper conductors OD﹥25mm: 6 × Overall Diameter
shaped copper conductors: 8 × Overall Diameter

CONSTRUCTION PARAMETERS

Conductor		FFX400 1mRZ1-R
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness		Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
No.×mm2		mm		mm	mm	kg/km
2 cores
2×1.5	2	0.7		1.8	11.6	139
2×2.5	2	0.7		1.8	12.4	167
2×4	2	0.7		1.8	13.5	211
2×6	2	0.7		1.8	14.6	265
2×10	2	0.7		1.8	16.5	370
2×16	2	0.7		1.8	18.6	515
2×25	2	0.9		1.8	22.0	756
2×35	2	0.9		1.8	24.3	983
2×50	2	1.0		1.8	27.4	1281
2×70	2	1.1		1.8	31.4	1771
2×95	2	1.1		1.9	35.4	2379
2×120	2	1.2		2.0	39.2	2971
2×150	2	1.4		2.2	43.5	3655
2×185	2	1.6		2.3	48.3	4546
2×240	2	1.7		2.5	54.3	5901
2×300	2	1.8		2.6	59.8	7308
2×400	2	2		2.9	67.1	9318
3 cores
3×1.5	2	0.7		1.8	12.2	168
3×2.5	2	0.7		1.8	13.1	208
3×4	2	0.7		1.8	14.3	269
3×6	2	0.7		1.8	15.5	345
3×10	2	0.7		1.8	17.5	495
3×16	2	0.7		1.8	19.8	704
3×25	2	0.9		1.8	23.5	1052
3×35	2	0.9		1.8	26.0	1384
3×50	2	1.0		1.8	29.3	1819
3×70	2	1.1		1.9	33.8	2556
3×95	2	1.1		2.0	38.3	3467
3×120	2	1.2		2.1	42.4	4335
3×150	2	1.4		2.3	46.8	5305
3×185	2	1.6		2.4	52.1	6638
3×240	2	1.7		2.6	58.5	8624
3×300	2	1.8		2.7	64.4	10700
3×400	2	2.0		3.0	72.1	13601
3 cores + 1 core earth conductor
		3 cores	1 core
3×16/10	2	0.7	0.7	1.8	20.4	818
3×25/16	2	0.9	0.7	1.8	24.3	1228
3×35/16	2	0.9	0.7	1.8	26.9	1560
3×50/25	2	1.0	0.9	1.8	30.3	2097
3×70/35	2	1.1	0.9	2.0	35.2	2935
3×95/50	2	1.1	1.0	2.1	39.7	3978
3×120/70	2	1.2	1.1	2.3	44.2	5067
3×150/70	2	1.4	1.1	2.4	48.8	6038
3×185/95	2	1.6	1.1	2.6	54.3	7643
3×240/120	2	1.7	1.2	2.8	61.1	9891
3×300/150	2	1.8	1.4	3.0	67.4	12260
3×400/185	2	2.0	1.6	3.2	75.4	15560
4 cores
4×1.5	2	0.7		1.8	13.2	201
4×2.5	2	0.7		1.8	14.2	253
4×4	2	0.7		1.8	15.5	332
4×6	2	0.7		1.8	16.9	431
4×10	2	0.7		1.8	19.2	628
4×16	2	0.7		1.8	21.7	901
4×25	2	0.9		1.8	25.8	1358
4×35	2	0.9		1.8	28.6	1796
4×50	2	1.0		1.8	32.3	2369
4×70	2	1.1		2.0	37.5	3358
4×95	2	1.1		2.1	42.3	4537
4×120	2	1.2		2.3	47.1	5703
4×150	2	1.4		2.4	52.0	6984
4×185	2	1.6		2.6	57.9	8740
4×240	2	1.7		2.8	65.1	11362
4×300	2	1.8		3.0	71.8	14145
4×400	2	2.0		3.2	80.4	17984
Multicore
5×1.5	2	0.7		1.8	14.3	260
5×2.5	2	0.7		1.8	15.4	1544
7×1.5	2	0.7		1.8	15.5	322
7×2.5	2	0.7		1.8	16.7	2116
10×1.5	2	0.7		1.8	19.4	438
10×2.5	2	0.7		1.8	21.1	3000
12×1.5	2	0.7		1.8	20.0	494
12×2.5	2	0.7		1.8	21.8	3565
14×1.5	2	0.7		1.8	21.0	554
14×2.5	2	0.7		1.8	22.9	4135
19×1.5	2	0.7		1.8	23.4	701
19×2.5	2	0.7		1.8	25.5	5556
21×1.5	2	0.7		1.8	24.5	763
21×2.5	2	0.7		1.8	26.8	6128
24×1.5	2	0.7		1.8	27.3	866
24×2.5	2	0.7		1.8	29.8	6998
30×1.5	2	0.7		1.8	28.9	1030
30×2.5	2	0.7		1.8	31.6	8689
40×1.5	2	0.7		1.8	32.4	9942
40×2.5	2	0.7		1.9	35.7	11540
48×1.5	2	0.7		1.8	35.8	11900
48×2.5	2	0.7		1.9	39.4	13813
61×1.5	2	0.7		1.9	39.4	15082
61×2.5	2	0.7		2.0	43.3	17505

Electrical PROPERTIES

Conductor operating temperature: 90°C
Ambient temperature: 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E2A

Conductor cross sectional area	Ref. Method A (enclosed in conduit in thermally insulating wall etc.)		Ref. Method B (enclosed in conduit on a wall or in trunking etc.)		Ref. Method C (clipped direct)		Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical)
	1 two-core cable*, single-phase a.c. or d.c.	1 three- or four-core cable*, threephase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three- or four-core cable*, three-phase a.c.	1 two-core cable*, single-phase a.c. or d.c.	1 three- or four-core cable*, threephase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three- or four-core cable*, threephase a.c.
1	2	3	4	5	6	7	8	9
mm2	a	a	a	a	a	a	a	a
1.5	18.5	16.5	22	19.5	24	22	26	23
2.5	25	22	30	26	33	30	36	32
4	33	30	40	35	45	40	49	42
6	42	38	51	44	58	52	63	54
10	57	51	69	60	80	71	86	75
16	76	68	91	80	107	96	115	100
25	99	89	119	105	138	119	149	127
35	121	109	146	128	171	147	185	158
50	145	130	175	154	209	179	225	192
70	183	164	221	194	269	229	289	246
95	220	197	265	233	328	278	352	298
120	253	227	305	268	382	322	410	346
150	290	259	334	300	441	371	473	399
185	329	295	384	340	506	424	542	456
240	386	346	459	398	599	500	641	538
300	442	396	532	455	693	576	741	621
400	-	-	625	536	803	667	865	741

Note: *With or without a protective conductor.

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E2B

Conductor crosssectional area	Two-core cable, d.c.	Two-core cable, single-phase a.c.			Three- or four-core cable, three-phase a.c.
1	2	3			4
mm2	mV/a/m	mV/a/m			mV/a/m
1.5	31	31			27
2.5	19	19			16
4	12	12			10
6	7.9	7.9			6.8
10	4.7	4.7			4.0
16	2.9	2.9			2.5
		r	x	z	r	x	z
25	1.85	1.85	0.160	1.90	1.60	0.140	1.65
35	1.35	1.35	0.155	1.35	1.15	0.135	1.15
50	0.98	0.99	0.155	1.00	0.86	0.135	0.87
70	0.67	0.67	0.150	0.69	0.59	0.130	0.60
95	0.49	0.50	0.150	0.52	0.43	0.130	0.45
120	0.39	0.40	0.145	0.42	0.34	0.130	0.37
150	0.31	0.32	0.145	0.35	0.28	0.125	0.30
185	0.25	0.26	0.145	0.29	0.22	0.125	0.26
240	0.195	0.200	0.140	0.24	0.175	0.125	0.21
300	0.155	0.160	0.140	0.21	0.140	0.120	0.185
400	0.120	0.130	0.140	0.190	0.115	0.120	0.165
