300/500V Mica+SR Insulated, LSZH Sheathed, Screened Power Cables to BS 7629-1 (2-4 Cores & Multcore)

FFX200E 05mSOZ1-U/R PH120 (CU/MGT+SR/OSCR/LSZH 300/500V Class 1/2)

APPLICATION

The BS7629 Fire Resistant Power cables are primarily intended for use in the following applications:
BS 5266-1 for emergency lighting of premises.
BS 5839-1 for fire detection and fire alarm systems in and around building.
BS 5839-8 for voice alarm systems.
BS 5839-9 for emergency voice communication systems.

STANDARDS

Basic design to BS 7629-1:2015

FIRE PERFORMANCE

Circuit Integrity	BS 6387; BS EN 50200; BS 8434-2
Flame Retardance (Single Vertical Wire or cable test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300/500V

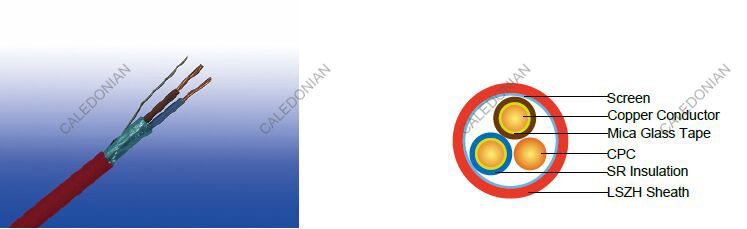

CABLE CONSTRUCTION

Conductor: Copper conductor according to BS EN 60228 class 1/2.
Fire Barrier: Mica glass tape.
Insulation: Fire resistant special ceramized silicone rubber compound type EI 2 as per BS EN 50363-1.
Screened: One or more metallic or laminated metallic tape(s) shall be applied, either longitudinally or helically or a combination of both, with the metallic element in contact with the uninsulated circuit protectiveconductor or drain wire.
Circuit Protective Conductor: Uninsulated tinned copper conductor of the same section and class as the insulated conductors in the two,three and four cores cables.
Sheath: Extruded LSZH type LTS 3 according to BS 7655-6.1.
Insulation Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Insulation COLOUR CODE

Number of cores	Core colours or numbering
2 cores+uninsulated circuit protective conductor	brown, blue or brown, brown
3 cores+uninsulated circuit protective conductor	brown, black, Grey
4 cores+uninsulated circuit protective conductor	brown, blue, black, Grey
7, 12 and19 cores+uninsulated drain wire	Numbers 1, 2, 3, 4, 5, 6, 7 and upwards or, for identification by colour, an identical colour(excluding brown and black),except for two adjacent cores in each layer distinctively coloured brown and black.

Sheath Colour: Colours upon request.

Physical AND THERMAL PROPERTIES

Maximum temperature range during operation: 70°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 6 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor		FFX200E 05mSOZ1-U/R PH120
No. of Cores × Cross-sectional Area	Conductor Class	Nominal Insulation Thickness	CPC Nominal Cross-sectional Area	Nominal Sheath Thickness	Approx. Overall Diameter	Approx. Weight
No.×mm2		mm	mm2	mm	mm	kg/km
2 cores
2x1.0	1/2	0.6	1.0	0.9	10.0	103
2x1.5	1/2	0.7	1.5	0.9	10.5	130
2x2.5	1/2	0.8	2.5	1.0	12.5	181
2x4.0	1/2	0.8	4.0	1.1	14.5	246
3 cores
3x1.5	1/2	0.7	1.5	0.9	11.7	166
3x2.5	1/2	0.8	2.5	1.0	13.7	232
3x4.0	1/2	0.8	4.0	1.1	15.7	318
4 cores
4x1.5	1/2	0.7	1.5	1.0	12.9	211
4x2.5	1/2	0.8	2.5	1.1	14.4	294
4x4.0	1/2	0.8	4.0	1.2	17.4	403
7 cores
7x1.5	1/2	0.7	0.5	1.1	15.5	331
7x2.5	1/2	0.8	0.5	1.2	18.0	698
12 cores
12x1.5	1/2	0.7	0.5	1.2	20.2	537
12x2.5	1/2	0.8	0.5	1.4	24.2	1093
19 cores
19x1.5	1/2	0.7	0.5	1.3	24.0	802

Note: The parameters listed above are nominal values as per cable standards. Actual values may vary due to material and manufacturing process variations. For precise specifications or customized requirements, please contact us for further information.

Electrical PROPERTIES

Conductor operating temperature: 70°C
Ambient temperature: 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4D2A

Conductor cross sectional area	Ref. Method A (enclosed in conduit in thermally insulating wall etc.)		Ref. Method B (enclosed in conduit on a wall or in trunking etc.)		Ref. Method C (clipped direct)		Ref. Method E (in free air or on a perforated cable tray etc. horizontal or vertical)
	1 two-core cable*, single-phase a.c. or d.c.	1 three-core or 1 fourcore cable*, three-phase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three-core or 1 fourcore cable*, three-phase a.c.	1 two-core cable*, single-phase a.c. or d.c.	1 three-core or 1 four-core cable*, three -phase a.c.	1 two-core cable*, singlephase a.c. or d.c.	1 three-core or 1 fourcore cable*, three-phase a.c.
1	2	3	4	5	6	7	8	9
mm2	a	a	a	a	a	a	a	a
1.0	11	10	13	11.5	15	13.5	17	14.5
1.5	14	13	16.5	15	19.5	17.5	22	18.5
2.5	18.5	17.5	23	20	27	24	30	25
4	25	23	30	27	36	32	40	34

Note: *With or without a protective conductor.

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4D2B

Conductor crosssectional area	Two-core cable, d.c.	Two-core cable, single-phase a.c.	Three- or four-core cable, three-phase a.c.
1	2	3	4
mm2	mV/a/m	mV/a/m	mV/a/m
1.0	44	44	38
1.5	29	29	25
2.5	18	18	15
4	11	11	9.5
