Fire Resistant CAT6 CWB/SWB/SWA Armoured Data Cables
FFFX-CAT6U/UTP4P23FR CWB/SWB/SWA
FFX-CAT6F/UTP4P23FR CWB/SWB/SWA
FFX-CAT6SF/UTP4P23FR CWB/SWB/SWA
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with
copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
FIRE PERFORMANCE
| Circuit Integrity |
IEC 60331-23; BS 6387 CWZ (Optional) |
| Flame Retardance (Single Vertical
Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

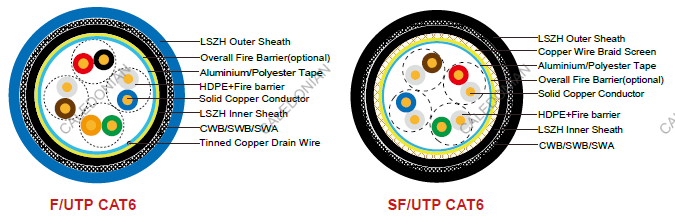

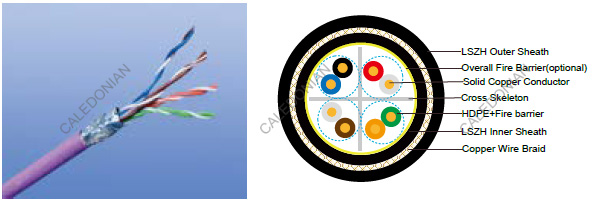

CABLE CONSTRUCTION
Conductors: 23AWG solid bare copper.
Insulation: HDPE+Fire barrier.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Overall Fire Barrier: optional.
Inner Sheath: Thermoplastic LSZH compound, coloured black.
Armouring:
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath: Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
(Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
Cat6F/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6SF/UTP: These cables have double collective shieldings of Aluminium/polyester tape & copper wire
braid.
Physical AND THERMAL PROPERTIES
Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
| aWG |
|
23 |
| nominal conductor Diameter |
mm |
0.56/0.57/0.58 |
| Maximum Dc Resistance@20°c |
Ω/100m |
9.38 |
| Maximum DcR Unbalance |
% |
3 |
| Maximum Mutual capacitance |
pf/m |
5.8 |
| Maximum capacitance Unbalance |
pf/100m |
30 |
| characteristic Impedance@1-100MHz |
Ω |
100±15 |
| Maximum Propagation Delay skew |
ns/100m |
18 |
TRANSMISSION PROPERTIES
| FREQ
MHz |
Maximum
Attenuation
dB/100m |
Minimum NEXT
dB |
Minimum
PSNEXT
dB |
Minimum
ELFEXT
dB/100m |
Minimum
PSELFEXT
dB/100m |
Minimum RL
dB |
| 0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
| 1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
| 4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
| 8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
| 10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
| 16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
| 20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
| 25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
| 31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
| 62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
| 100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
| 155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
| 200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
| 250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
| Cable Code |
Construction
No. of elements×No. of
cores in element
×Conductor diameter |
Nominal
Insulation
Thickness |
Nominal
Inner Sheath
Thickness |
Nominal
Outer Sheath
Thickness |
Nominal
Overall
Diameter |
Nominal
Weight |
| |
mm |
mm |
mm |
mm |
mm |
kg/km |
| FFX-CAT6U/UTP4P23FR CWB |
4×2×0.56/0.57 |
0.65 |
0.6 |
1.0 |
10.68 |
152 |
| FFX-CAT6U/UTP4P23FR SWB |
4×2×0.56/0.57 |
0.65 |
0.6 |
1.0 |
10.68 |
146 |
| FFX-CAT6U/UTP4P23FR SWA |
4×2×0.56/0.57 |
0.65 |
0.6 |
1.0 |
11.88 |
226 |
| FFX-CAT6F/UTP4P23FR CWB |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
11.48 |
163 |
| FFX-CAT6F/UTP4P23FR SWB |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
11.48 |
169 |
| FFX-CAT6F/UTP4P23FR SWA |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
12.48 |
250 |
| FFX-CAT6SF/UTP4P23FR CWB |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
11.96 |
191 |
| FFX-CAT6SF/UTP4P23FR SWB |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
11.96 |
185 |
| FFX-CAT6SF/UTP4P23FR SWA |
4×2×0.57/0.58 |
0.65 |
0.6 |
1.0 |
12.96 |
279 |
