Fire Resistant CAT6 Data Cables
FFX-CAT6U/UTP4P23FR
FFX-CAT6F/UTP4P23FR
FFX-CAT6SF/UTP4P23FR
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT,
100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with
copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still
maintaining the flexibility of the cable.
STANDARDS
ISO/IEC 11801, EN 50173, ANSI/TIA/EIA 568
FIRE PERFORMANCE
Circuit Integrity |
IEC 60331-23; BS 6387 CWZ (Optional); |
Flame Retardance (Single Vertical
Wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |

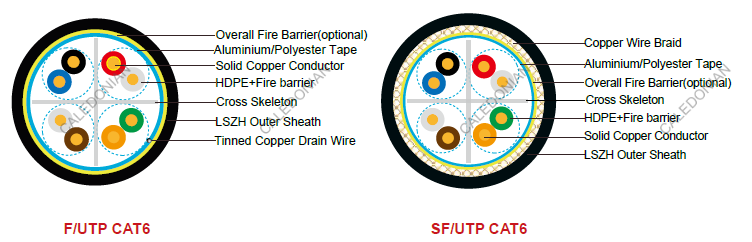

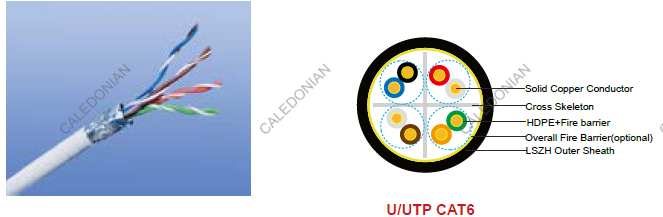

CABLE CONSTRUCTION
Conductors: 23AWG solid bare copper.
Insulation: HDPE+Fire barrier.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Overall Fire Barrier: optional.
Outer Sheath: Halogen-free flame retardant thermoplastic LSZH compound type LTS3 as per BS 7655-6.1
(Thermosetting LSZH compound type SW2-SW4 as per BS 7655:section 2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option.
Cat6F/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6SF/UTP: These cables have double collective shieldings of Aluminium/polyester tape & copper wire
braid with drain wire.
Physical AND THERMAL PROPERTIES
Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
Electrical Properties
aWG |
|
23 |
nominal conductor Diameter |
mm |
0.56/0.57/0.58 |
Maximum Dc Resistance@20°c |
Ω/100m |
9.38 |
Maximum DcR Unbalance |
% |
5 |
Maximum Mutual capacitance |
pf/m |
5.6 |
Maximum capacitance Unbalance |
pf/100m |
330 |
characteristic Impedance@1-100MHz |
Ω |
100±15 |
Maximum Propagation Delay skew |
ns/100m |
44 |
TRANSMISSION PROPERTIES
FREQ
MHz |
Maximum
Attenuation
dB/100m |
Minimum NEXT
dB |
Minimum
PSNEXT
dB |
Minimum
ELFEXT
dB/100m |
Minimum
PSELFEXT
dB/100m |
Minimum RL
dB |
0.772 |
1.8 |
76.0 |
74.0 |
70.0 |
67.0 |
— |
1 |
2.0 |
74.3 |
72.3 |
67.8 |
64.8 |
20.0 |
4 |
3.8 |
65.3 |
63.3 |
55.7 |
52.7 |
23.0 |
8 |
5.3 |
60.8 |
58.8 |
49.7 |
46.7 |
24.5 |
10 |
6.0 |
59.3 |
57.3 |
47.8 |
44.8 |
25.0 |
16 |
7.6 |
56.3 |
54.3 |
43.7 |
40.7 |
25.0 |
20 |
8.5 |
54.8 |
52.8 |
41.7 |
38.7 |
25.0 |
25 |
9.5 |
53.3 |
51.3 |
39.8 |
36.8 |
24.3 |
31.25 |
10.7 |
51.9 |
49.9 |
37.9 |
34.9 |
23.6 |
62.5 |
15.4 |
47.4 |
45.4 |
31.8 |
28.8 |
21.5 |
100 |
19.8 |
44.3 |
42.3 |
27.8 |
24.8 |
20.1 |
155 |
25.2 |
41.5 |
39.5 |
23.9 |
20.9 |
18.8 |
200 |
29.0 |
39.8 |
37.8 |
21.7 |
18.7 |
18.0 |
250 |
32.8 |
38.3 |
36.3 |
19.8 |
16.8 |
17.3 |
CONSTRUCTION PARAMETERS
cable code |
conductor Diameter |
Diameter over Insulation |
Pairs |
screen |
nominal overall Diameter |
|
mm |
mm |
|
|
mm |
CAT6U/UTP4P23FR |
0.56/0.57 |
1.77 |
4 |
Nil |
8.9 |
CAT6F/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen |
9.3 |
CAT6SF/UTP4P23FR |
0.57/0.58 |
1.77 |
4 |
Overall Aluminum Tape Screen &
Copper Wire Braid |
9.6 |
